- Battery Included: no
- High-concerned chemical: none
- Model Number: X6AF
- Type: Embedded Computer
- Brand Name: Topton
- Origin: Mainland China
This link bundle: No Ram No Storage No OS
|
Processors |
Cores & Threads |
L3 Cache |
Base Frequency |
Max Turbo Frequency |
TDP |
|
Intel N100 |
4 cores, 4 threads |
6M |
/ |
3.40 GHz |
6W |
|
Core 3 100U |
6 cores, 8 threads |
10M |
/ |
4.70 GHz |
15W |
|
Core i3-N300 |
8 cores, 8 threads |
6M |
/ |
3.80 GHz |
7W |
|
Core i7-13620H |
10 cores, 16 threads |
24M |
/ |
4.90 GHz |
45W |
|
Core i3-1220P |
10 cores, 12 threads |
12M |
/ |
4.40 GHz |
28W |
|
Core i7-1195G7 |
4 cores, 8 threads |
12M |
2.90 GHz |
5.00 GHz |
28W |
|
Core i3-1115G4 |
2 cores, 4 threads |
6M |
3.00 GHz |
4.10 GHz |
15W |
Product Highlight
Intel N100/i3-N300 model:
-1xDDR5 SODIMM ram slot, support max 16GB 4800MHz.

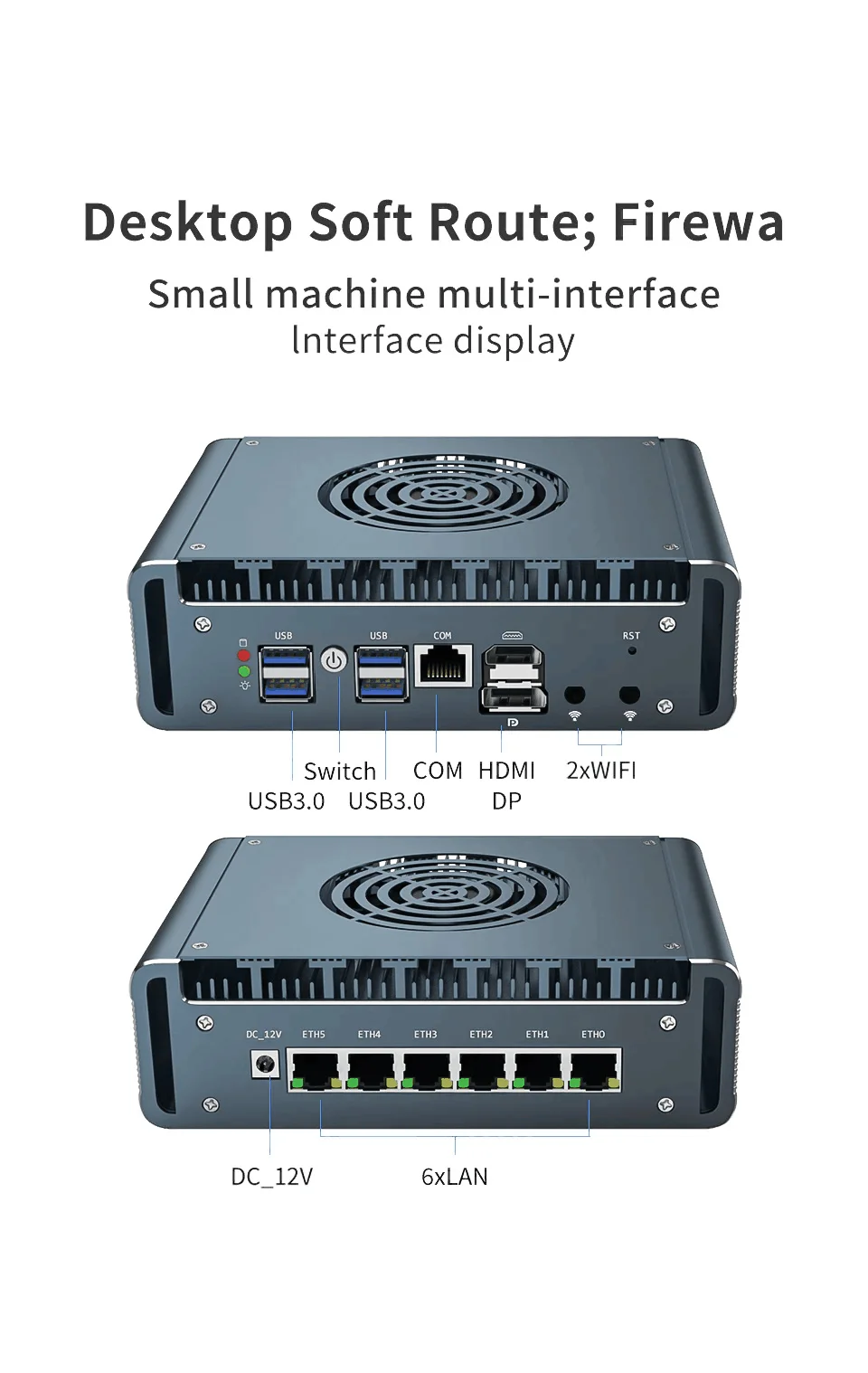

-6xIntel i226-V 2.5G RJ45 LANs, 4xUSB2.0, 1xRJ45 COM console.
-Support three storage: 2xM.2 2280 NVMe/PCIE3.0x1 SSD(one on each side of motherboard)+1×2.5''SATA3.0 7mm SSD/HDD.

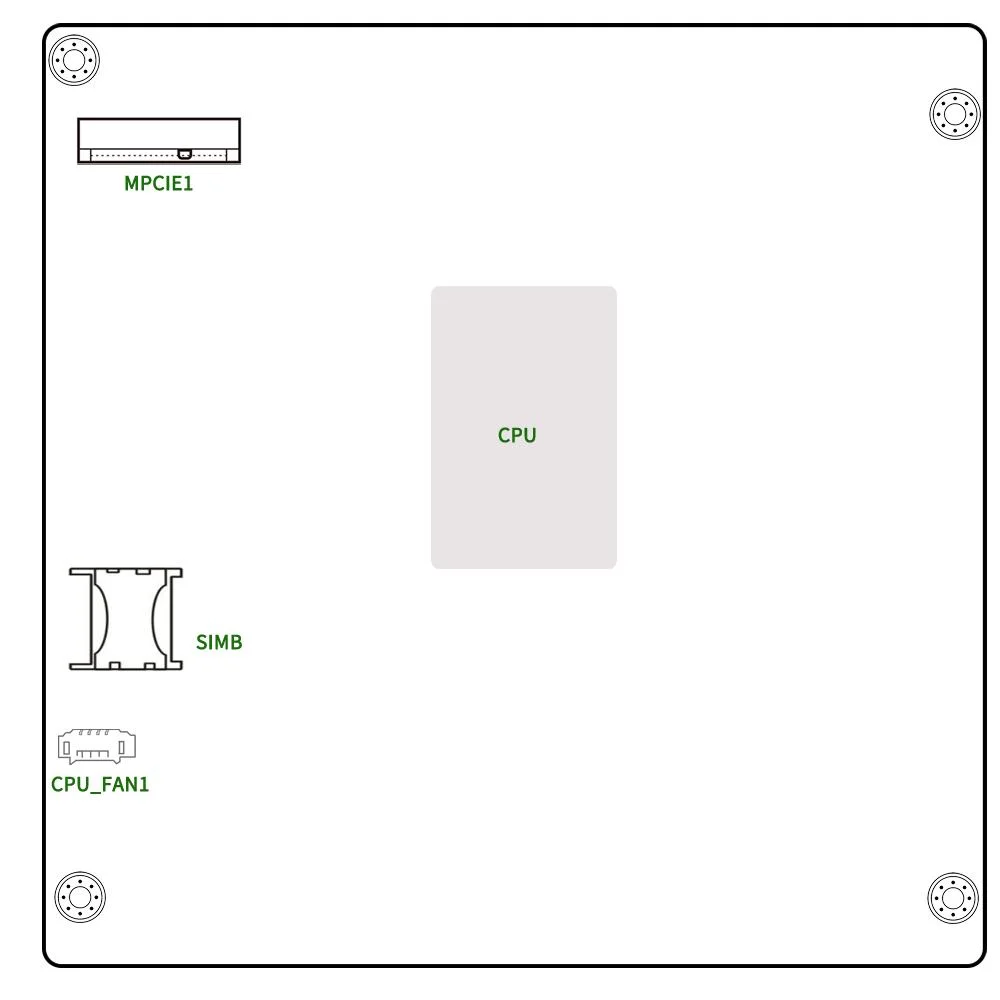

-1xSIM slot, 1xMPCIE slot, support WiFi/4G(2 choose 1) connection.
Intel Pentium Gold 8505/Core i7-13620H/i3-1220P/3 100U model:
-2xDDR5 SODIMM ram slots, support max 64GB 4800MHz.
Intel Core i7-1195G7/i3-1115G4 model:
-2xDDR4 SODIMM ram slots, support max 32GB 3200MHz.

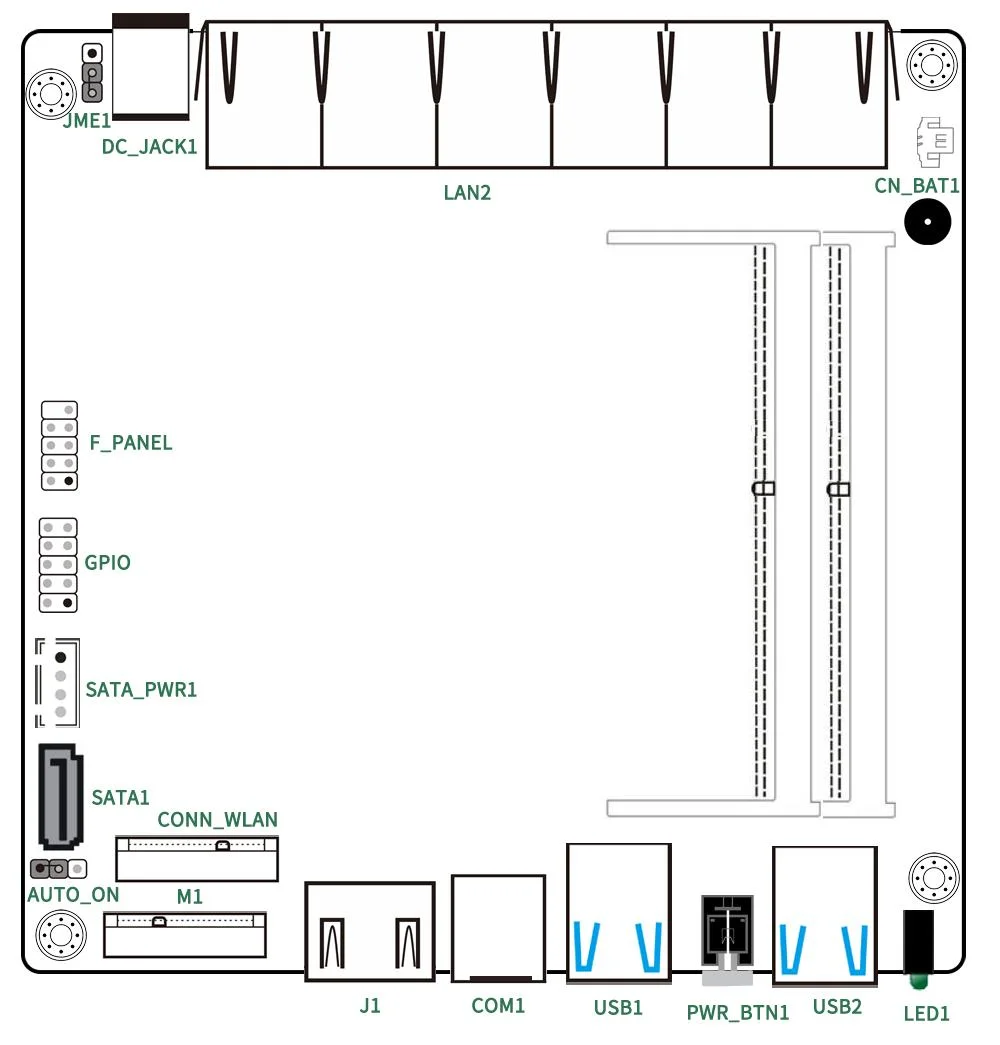

-6xIntel i226-V 2.5G RJ45 LANs, 4xUSB3.0, 1xRJ45 COM console.
-Support two storage: 1xM.2 2280 NVMe/PCIEx4 SSD+1x7mm 2.5'' SATA SSD/HDD.
-1xSIM slot, 1xM.2 2230 WiFi slot(CNVI/PCIE signal), 1xMPCIE slot, support WiFi/4G(2 choose 1) connection.
-1xHDMI2.0 and 1xDP1.4 support dual 4K@60Hz UHD video display.
-Support AES-NI, ESXI, PVE, Watchdog, Auto power on, RTC, PXE boot, Wake-on-LAN etc.
-Innovation: All aluminum shell fins passive heat-sink + intelligent fan cooling, using fan and motherboard isolation technology to achieve dust and corrosion prevention. It is flexible to change between fanless system and fan system. A fan built in solid aluminum case with cooling fins gets much better heat dissipation to release CPU performance totally, sound of the fan is low. You can unplug fan pin off motherboard to make it fanless system if you want silence totally.
-Low consumption TDP and can be mounted back of monitor by VESA bracket(optional).
Package List
1xMini PC
1xPower Adapter
1xPower Cord(EU/US/UK/AU plug based on buyer's country)
1xSATA Cable
Intel N100/i3-N300 6×2.5G model
Intel Pentium 8505/i7-13620H/i3-1220P/3 100U/i7-1195G7/i3-1115G4 6×2.5G model
Welcome to click the picture of VESA Bracket to order together if you need:
