- High-concerned chemical: none
- Use: Commercial
- Memory Capacity: ≤ 128MB
- Hard Drive Capacity: ≤ 40 GB
- Model Number: X6E
- Processor Brand: Intel
- Processor Model: 8505/7505/6305/N100
- Type: Mini Desktop
- Graphics Card Type: Integrated Card
- Brand Name: Topton
- Origin: Mainland China
- Type: Mini PC
Processor parameter for referance only
|
Processors |
Cores & Threads |
L3 Cache |
Max Turbo Frequency |
TDP |
Graphics |
|
Intel N100 |
4 cores, 4 threads |
4M |
3.40 GHz |
6W |
Intel UHD Graphics |
|
Intel Celeron 6305 |
2 cores, 2 threads |
4M |
1.80 GHz |
15W |
Intel UHD Graphics |
|
Intel Pentium Gold 7505 |
2 cores, 4 threads |
4M |
3.50 GHz |
15W |
Intel UHD Graphics |
|
Intel Pentium Gold 8505 |
5 cores, 6 threads |
8M |
4.40 GHz |
15W |
Intel UHD Graphics |
Product Highlight
Intel Pentium Gold 8505 Model:

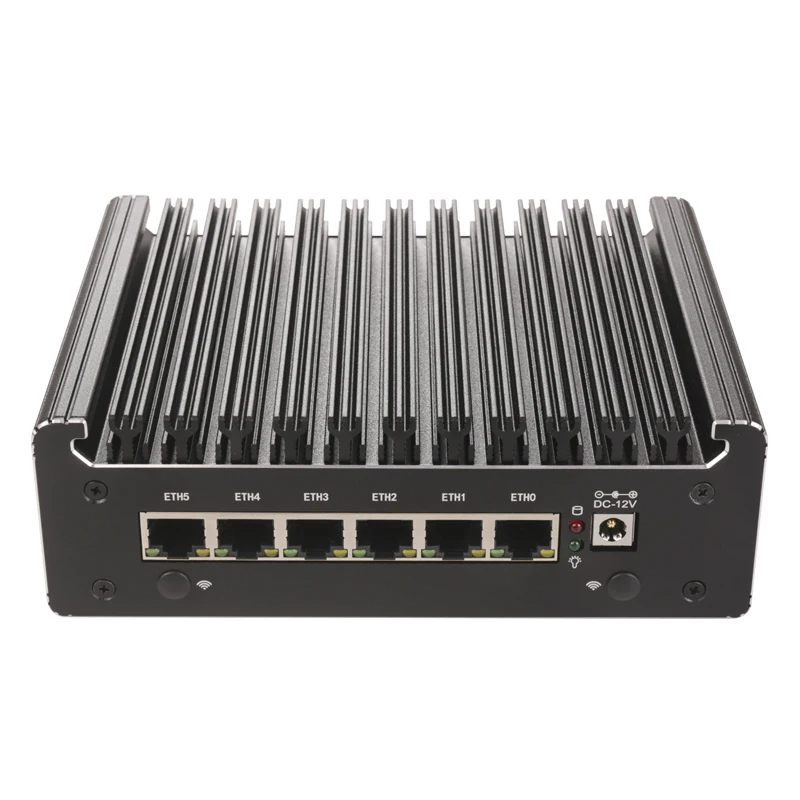

-6xIntel i226-V 2.5G RJ45 LANs, 3xUSB3.2, 1xUSB2.0, 1xType-C USB2.0, 1xRJ45 COM console.
-2xDDR5 SODIMM non-ECC ram slots, support max 64GB 4800MHz.
-Support 4 storages: 2xM.2 2280 NVMe/PCIex4 SSD(one on each side of motherboard)+2xSATA3.0 SSD/HDD.
Intel N100 Model:
-6xIntel i226-V 2.5G RJ45 LANs, 2xUSB3.2, 2xUSB2.0, 1xType-C USB2.0, 1xRJ45 COM console.
-1xDDR4 SODIMM non-ECC ram slots, support max 32GB 2400/2666/3200MHz.
-Support 2 storages: 1xM.2 2280 NVMe/PCIe3.0x1 SSD+1xSATA3.0 SSD/HDD.
Pentium Gold 7505/Celeron 6305 Model:
-6xIntel i226-V 2.5G RJ45 LANs, 2xUSB3.0, 2xUSB2.0, 1xType-C USB3.0, 1xRJ45 COM console.
-2xDDR4 SODIMM non-ECC ram slot, support max 64GB 2400/2666/3200MHz.
-Support 3 storages: 1xM.2 2280 NVMe/PCIe3.0x4 SSD+2xSATA3.0 SSD/HDD.
-1xM.2 2230 WiFi slot, support WiFi module(optional to buy).
-1xHDMI and 1xDP support dual 4K@60Hz UHD video display.
-Support AES-NI, ESXI, PVE, Watchdog, Auto power on, RTC, PXE boot, Wake-on-LAN etc.
-Full Aluminum Alloy solid-built shell with three-sided Y-section fins as heat-sink, excellent cooling performance, exquisite production craft on outside design. It is silent and durable to work as long as 7×24 hours. it is flexible to change power consumption in BIOS if you want lower consumption and temperature, also we include a 4pins internal fan as gift if you still worry heat.
Package List
1xMini PC
1xPower Adapter
1xPower Cord(EU/US/UK/AU plug based on buyer's country)
1xSATA Cable

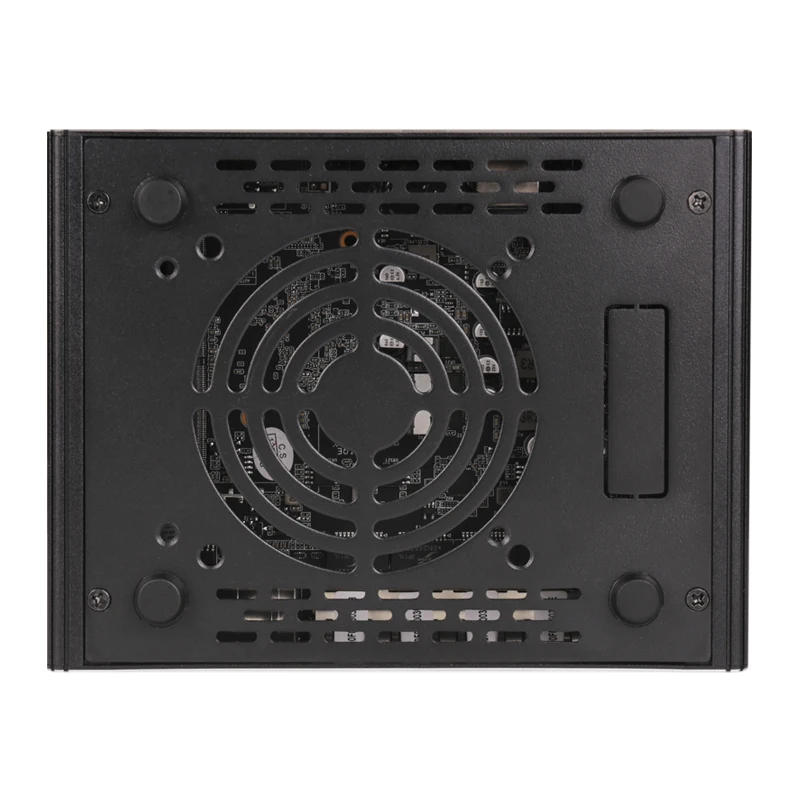

1x4pins internal fan(as a gift)
Intel Pentium Gold 8505 Model Motherboard Diagram:
Intel Pentium Gold 7505/Celeron 6305 Model Motherboard Diagram:
Intel N100 Model Motherboard Diagram:
