- High-concerned chemical: none
- Use: Commercial
- Memory Capacity: ≤ 128MB
- Hard Drive Capacity: ≤ 40 GB
- Model Number: X4S2
- Processor Brand: Intel
- Processor Model: i7 1255U/i5 1235U
- Type: Mini Desktop
- Graphics Card Type: Integrated Card
- Brand Name: Topton
- Origin: Mainland China
- Type: Mini PC
|

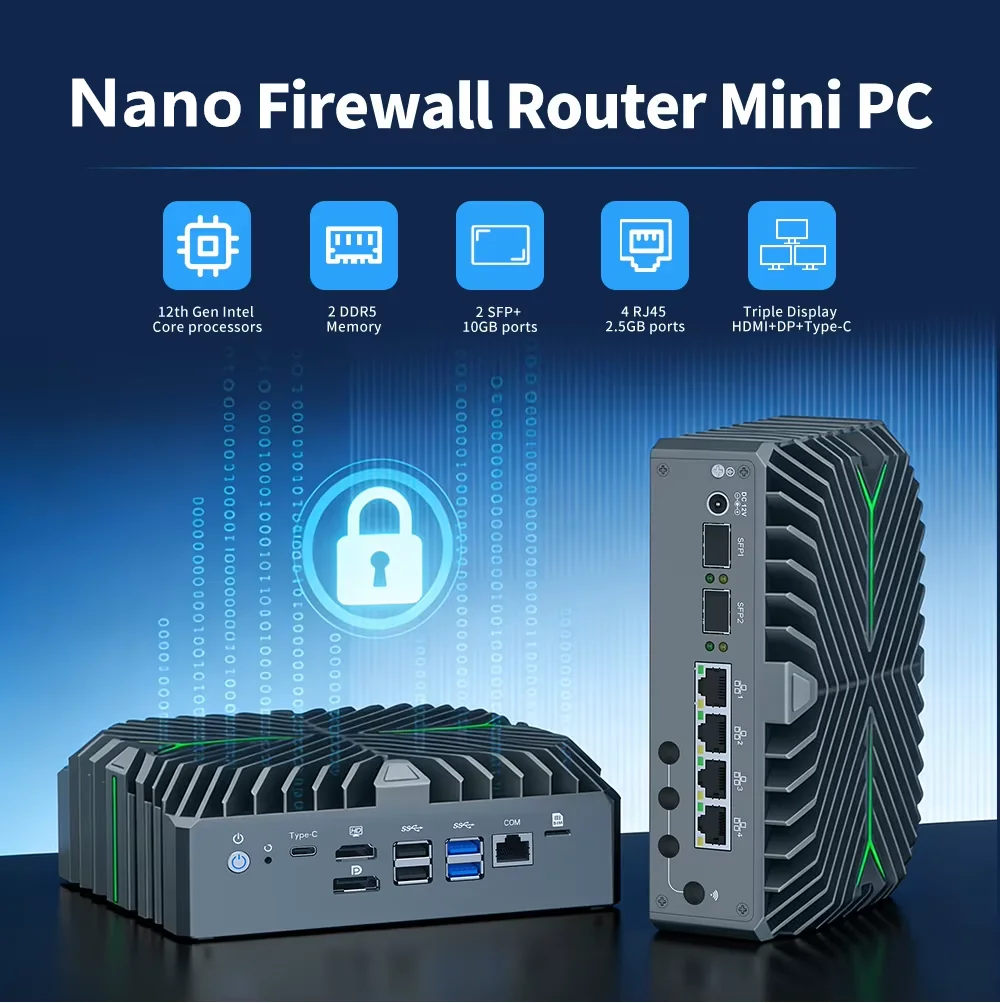

Model |
Firewall Mini PC |
|
Case Color |
Metal gray |
|
Material |
Solid aviation grade aluminum alloy efficient heat dissipation |
|
Processor |
Intel Core i5 1235U (10 Cores 12 Threads, Turbo 4.4 GHz)
Intel Core i7 1255U (10 Cores 12 Threads, Turbo 4.7 GHz)
|
|
BIOS |
AMI EFI BIOS |
|

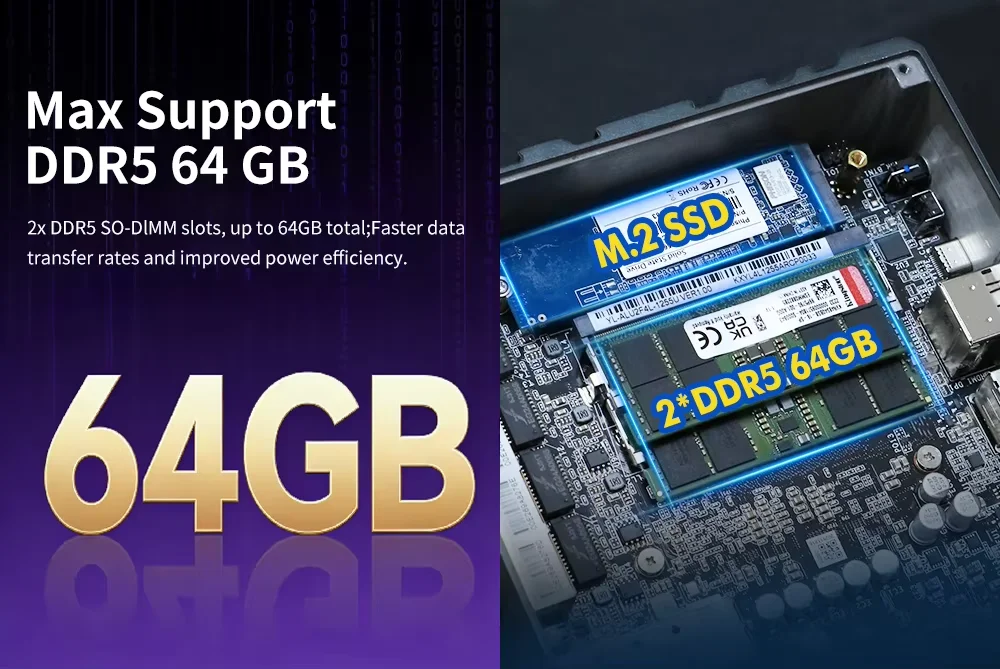

Memory |
2*DDR5 4800 SODIMM memory slots, Max 64 GB |
|
Storage |
1*M.2 NVME 2280 Slot，1*2.5” SATA3.0 |
|
Display Chip |
Intel Iris Graphics |
|
DisplayPort |

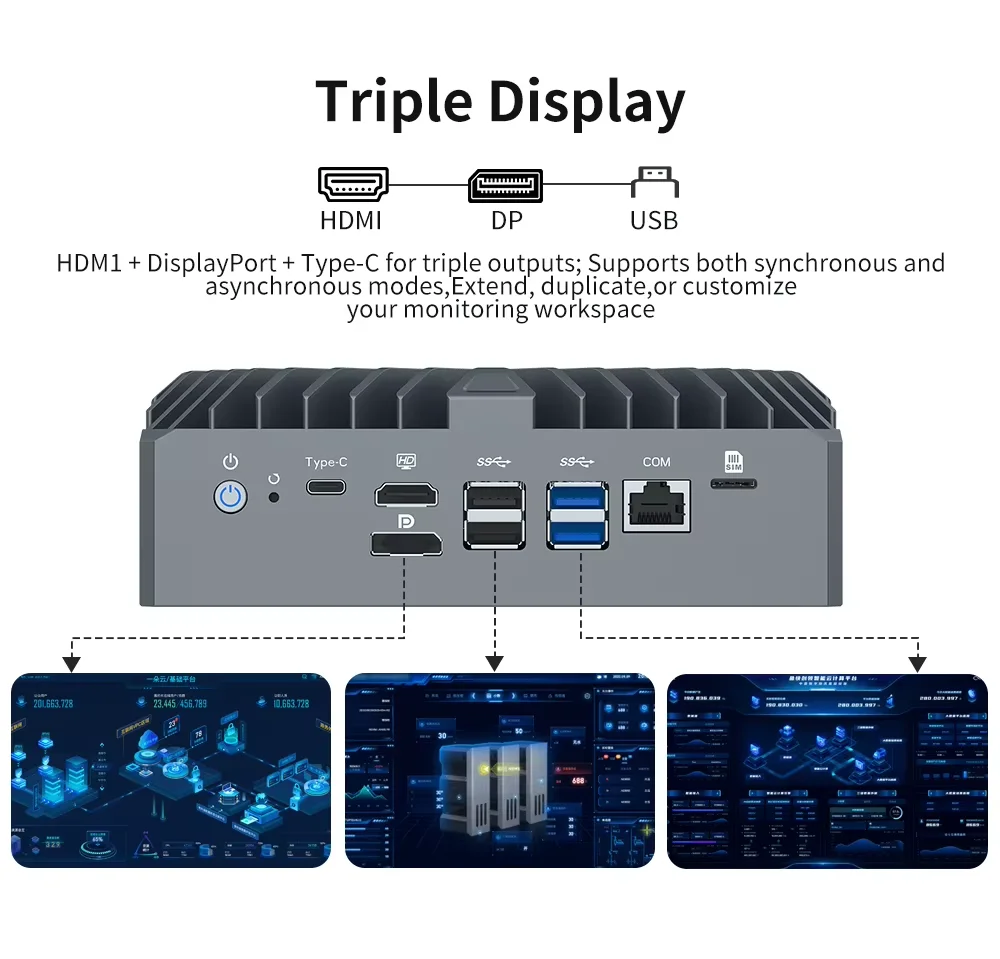

1*DP+1*HDMI+1*Type-C Max resolution 4096×2160@60Hz |
|

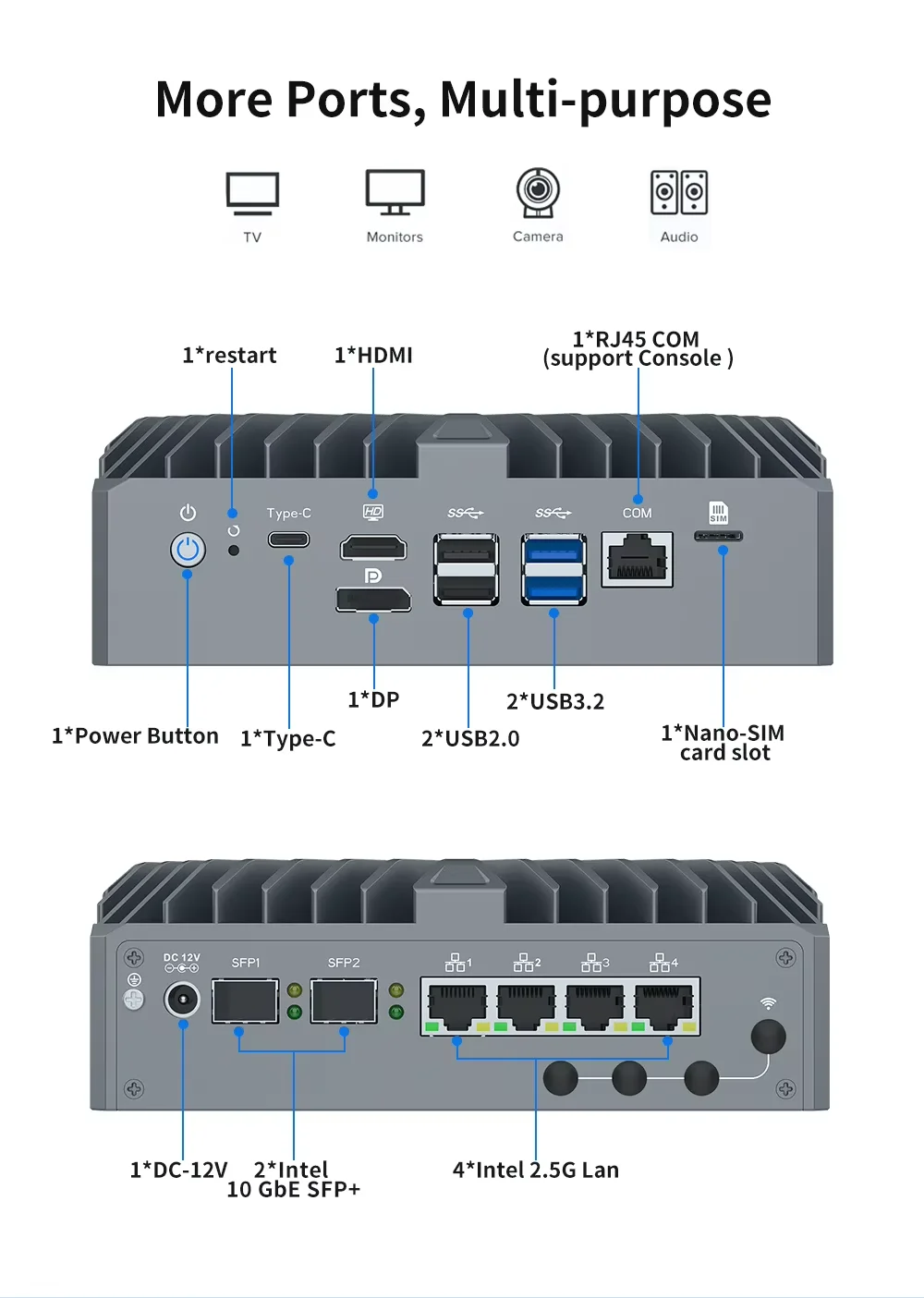

Front I/O |
1*Power Button, 1*restart / BIOS reset button,1*Type-C (video output/USB 3.2/PD 5V1A), 1*DP
1*HDMI , 2*USB2.0, 2*USB3.2 , 1*RJ45 COM (support Console ), 1*Nano-SIM card
|
|
RearI/O |
1*DC-12V, 2*Intel 10 GbE SFP+, 4*Intel 2.5G Lan
|
|
Expansion Slot |
1*M.2 2280 M-Key slot (Only NVME protocol, PCIE4.0/3.0 x4) |
|
1*M.2 2230 E-key slot (PCIe & USB / CNVio2) |
|
|
1*M.2 2242/3052 B-key slot (USB 3.0, 4G/5G), external SIM card slot
|
|
|

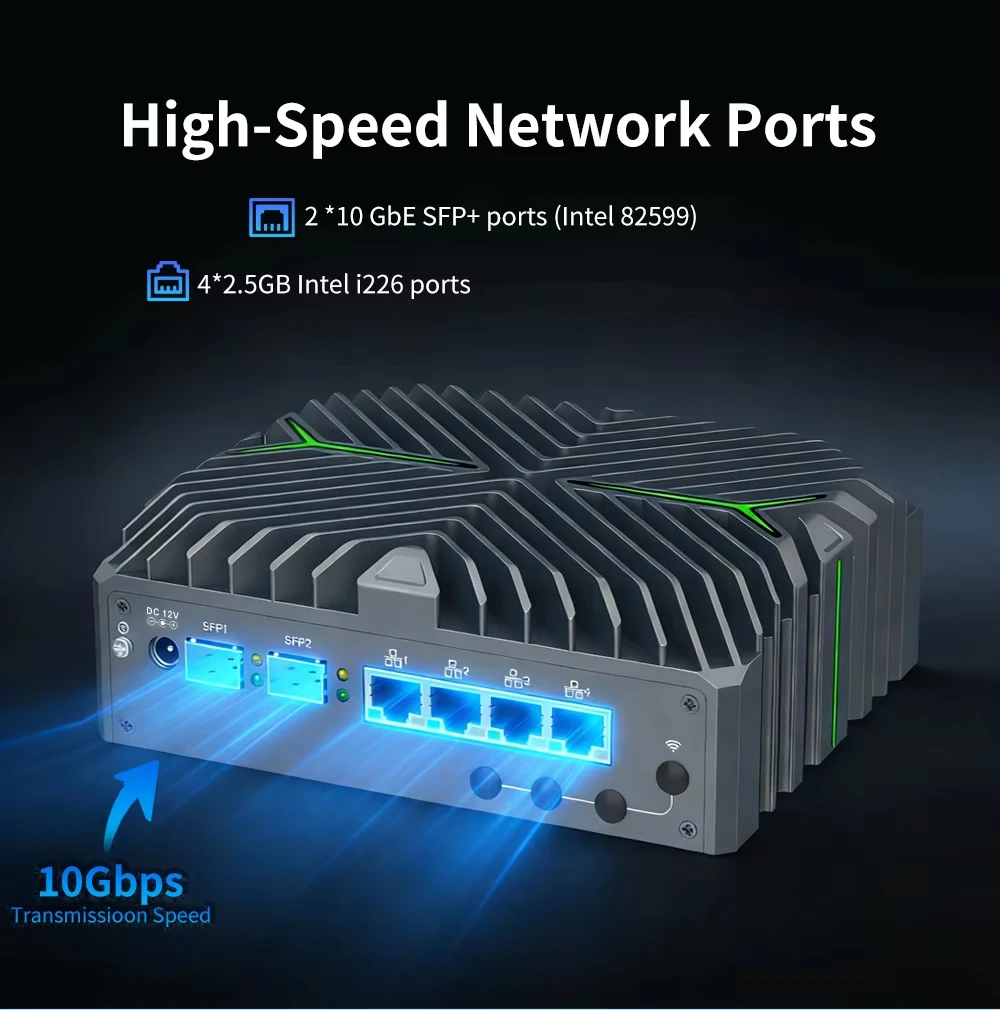

Network |
4*Intel i226-V 2.5G RJ45 LANs, 2*10 GbE SFP+ ports (Intel 82599) |
|
Other Function |
Auto power on, RTC, Wake On LAN, PXE boot, Watchdog (0～255 Level), TPM2.0 security encryption |
|
Power Supply |
DC 12V |
|

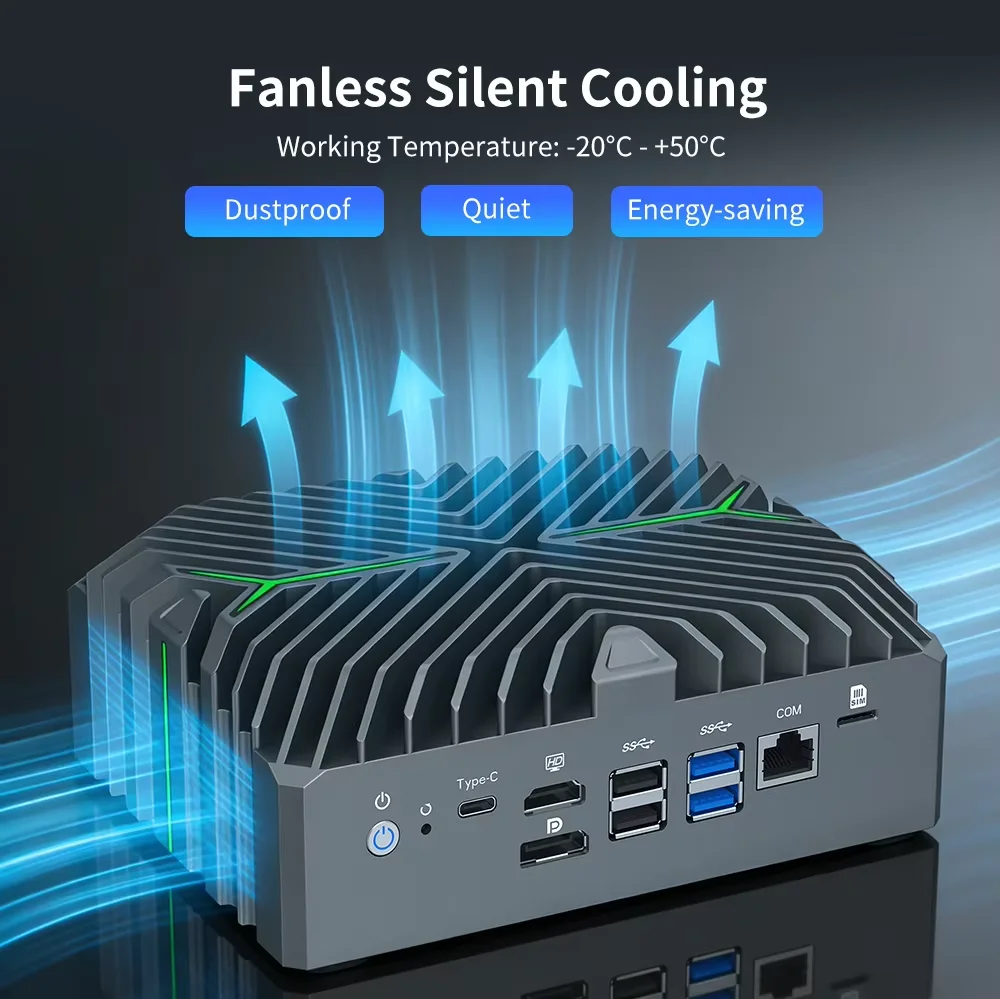

Work Temp |
0℃ ～ +50℃（Commercial HDD），-20℃ ～ +50℃（Industrial SSD），Surface air flow |
|
Work Humidity |
5% ～ 95% non-condensing |
|
Dimension |
170 * 140 * 58 mm |
|
Weight |
1.33 kg |
|
Application |
Firewall, VPN, Network Server, Network Security, Routing, Edge computing, Machine Vision, AGV/AMR, etc
|
