- Battery Included: no
- High-concerned chemical: none
- Model Number: G2C
- Type: Embedded Computer
- Brand Name: Topton
- Origin: Mainland China
Processor parameter for referance only
|
Processors |
Cores & Threads |
Cache |
Max Turbo Frequency |
TDP |
Graphics |
|
Intel N150 |
4 cores, 4 threads |
6M |
3.60 GHz |
6W |
Intel UHD Graphics 24EUS |
|
Intel N100 |
4 cores, 4 threads |
6M |
3.40 GHz |
6W |
Intel UHD Graphics 24EUS |
Product Highlight

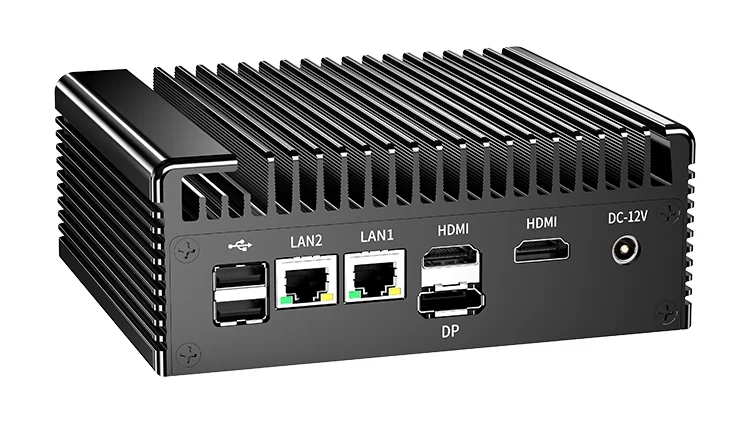

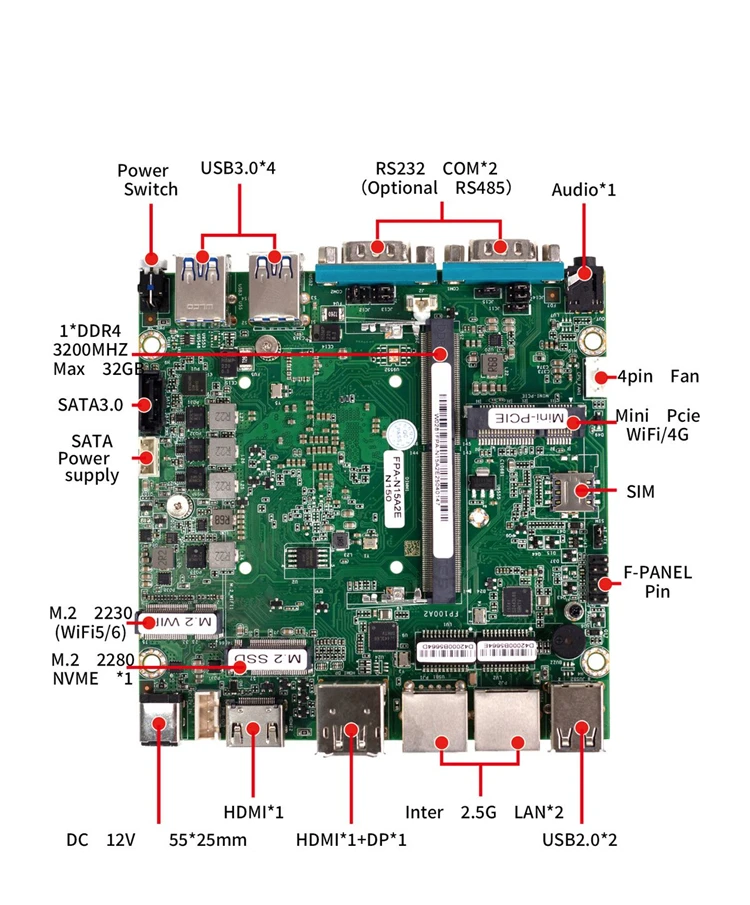

-2xIntel i226-V 2.5G RJ45, 1xUSB3.2, 2xUSB3.0, 2xUSB2.0, 1xType-C, 2xCOM RS232/RS485, 2xHDMI, 1xDP, 1xAudio.
-1xDDR4 SODIMM non-ecc ram slot, support up to 32GB 2666/3200MHz.
-Support two storage: 1xM.2 NVMe/PCIe3.0x2/SATA 2280 SSD+1×2.5''SATA3.0 7mm SSD/HDD.
-1xM.2 2230 WiFi slot(PCIE signal), 1xSIM slot(optional), 1xMPCIE slot, support WiFi/4G LTE(only USB signal) module connection.
-Support 3 display: 2xHDMI, 1xDP, 3x4K UHD video display.
-Support AES-NI, Watchdog, Auto power on, RTC, PXE boot, Wake-on-LAN etc.
-New Generation solid aluminum shell with longer tooth-fins as heat-sink, copper pad for faster heat conduction, more efficient cooling performance.
-Fanless system without cooling fan, noiselessness and durability fit for home use and industrial grade field, work as long as 7×24 hours.

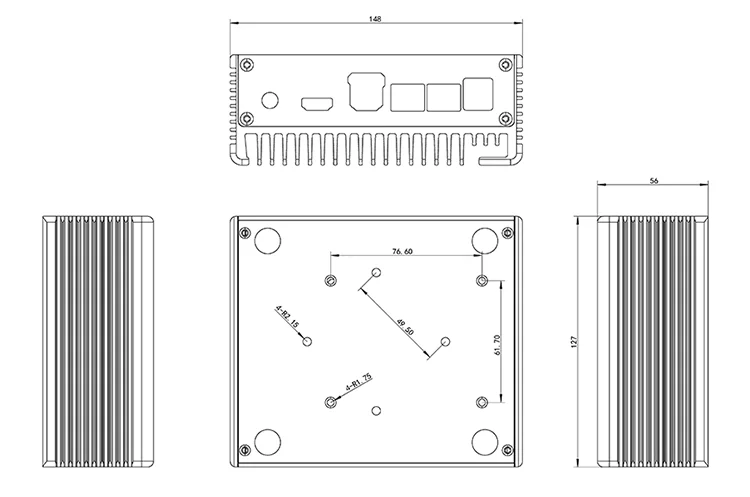

-Low consumption TDP and can be mounted back of monitor by VESA bracket(optional).
Package List
1xMini PC
1xPower Adapter
1xPower Cable(EU/US/UK/AU plug based on buyer's country)
1xSATA cable
Welcome to click the picture of VESA Bracket to order together if you need:
