- High-concerned chemical: none
- Use: Commercial
- Memory Capacity: ≤ 128MB
- Hard Drive Capacity: ≤ 40 GB
- Model Number: X3
- Processor Brand: Intel
- Processor Model: Intel
- Type: Mini Desktop
- Graphics Card Type: Integrated Card
- Brand Name: Topton
- Origin: Mainland China
- Type: Mini PC

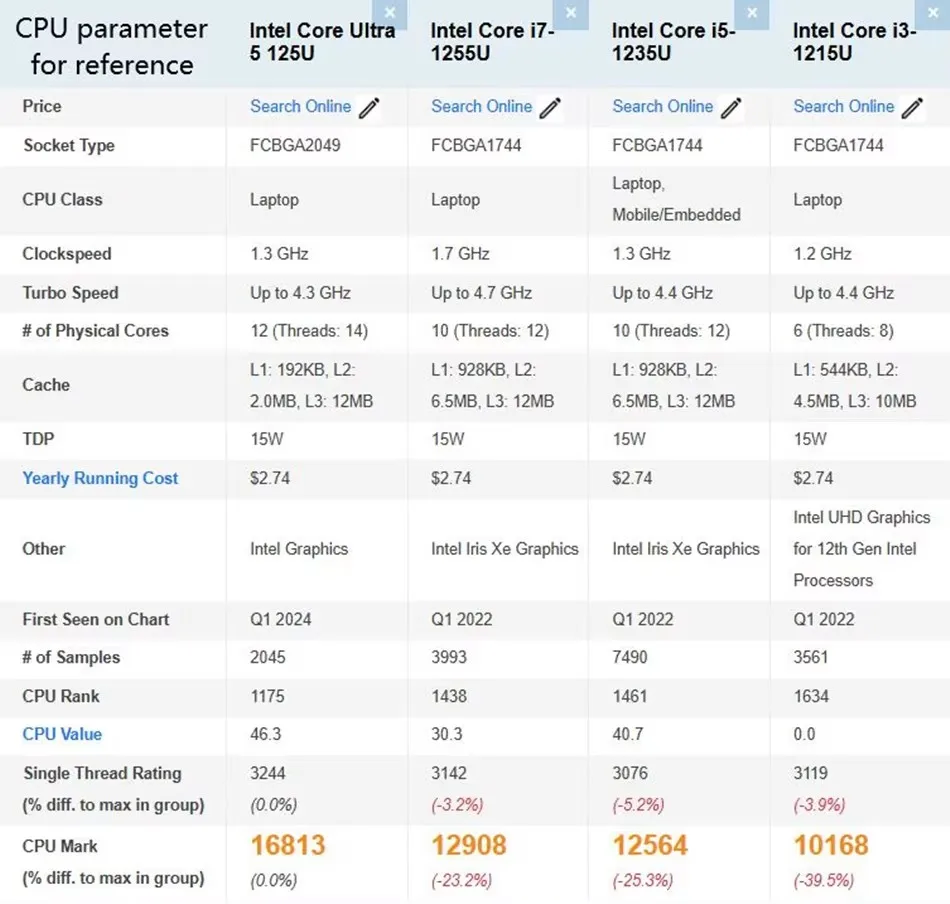

Notice: 12th Gen i7/i5/i3 model has no Type-C port, only 14th Gen Ultra 5 125U model has Type-C port. WiFi/4G card is optional to buy. EU/US/UK/AU plug based on buyer's country.
|
Model |
Industrial Mini PC |
|
Case Color |
Metal gray |
|
Material |
Aviation grade aluminum alloy fanless efficient heat dissipation |
|
Processor |
Intel Core Ultra 5 125U (12 core 14 threads, Max Turbo 4.3 GHz ) |
|
NPU |

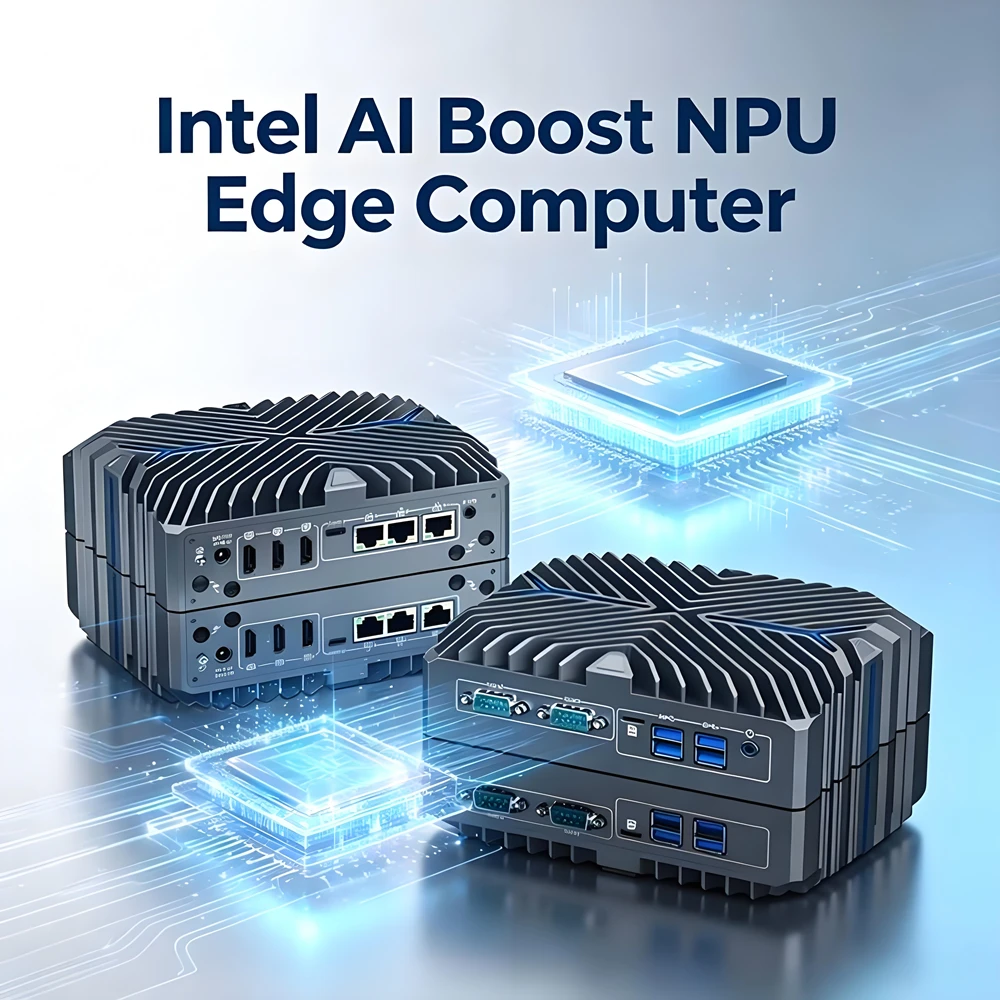

Intel AI Boost (Max Frequency 1.4GHz) |
|
Memory |
1*DDR5 4800 SODIMM memory slot, Max 32 GB |
|
Storage |
1*M.2 NVME 2280 Slot，1*2.5” SATA3.0 |
|
Display Chip |
Intel Graphics |
|
DisplayPort |

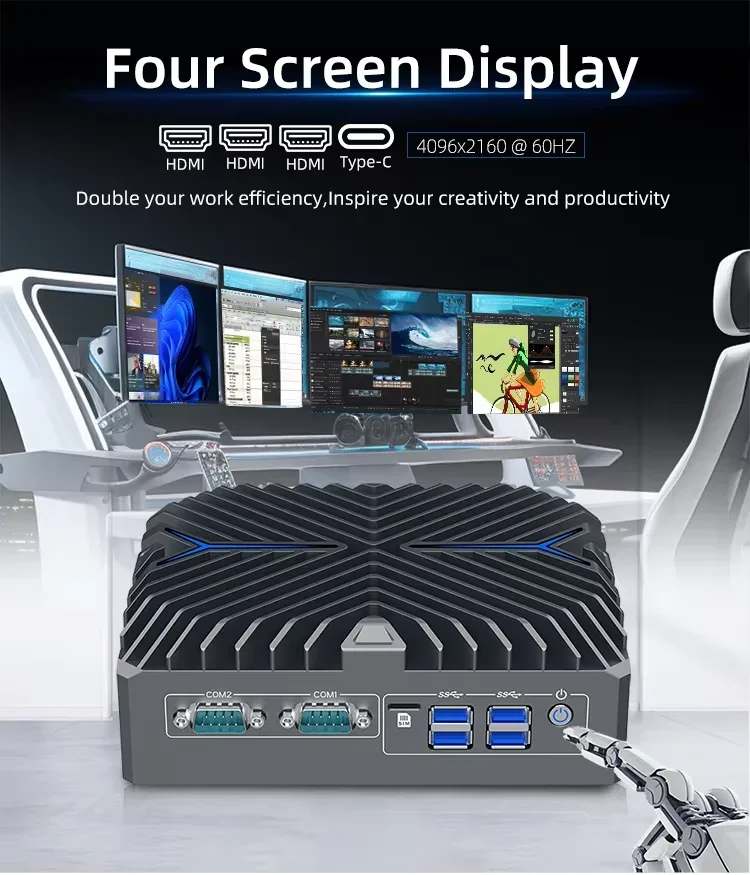

3*HDMI2.0+1*Type-C(125U) Max resolution 4096×2160@60Hz |
|

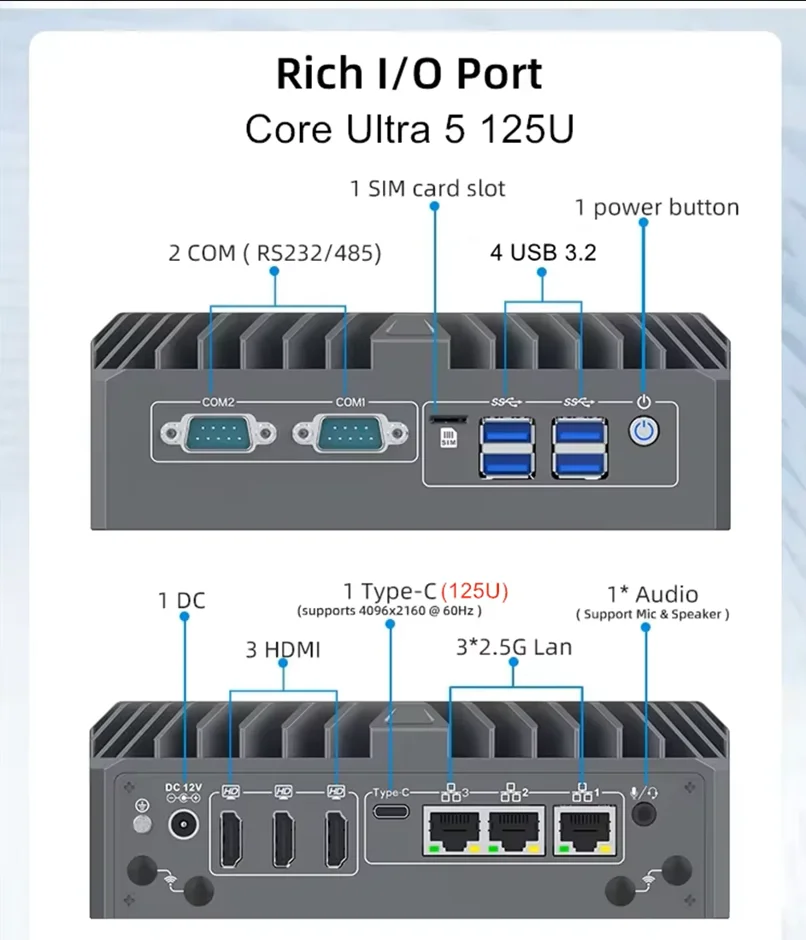

Front I/O |

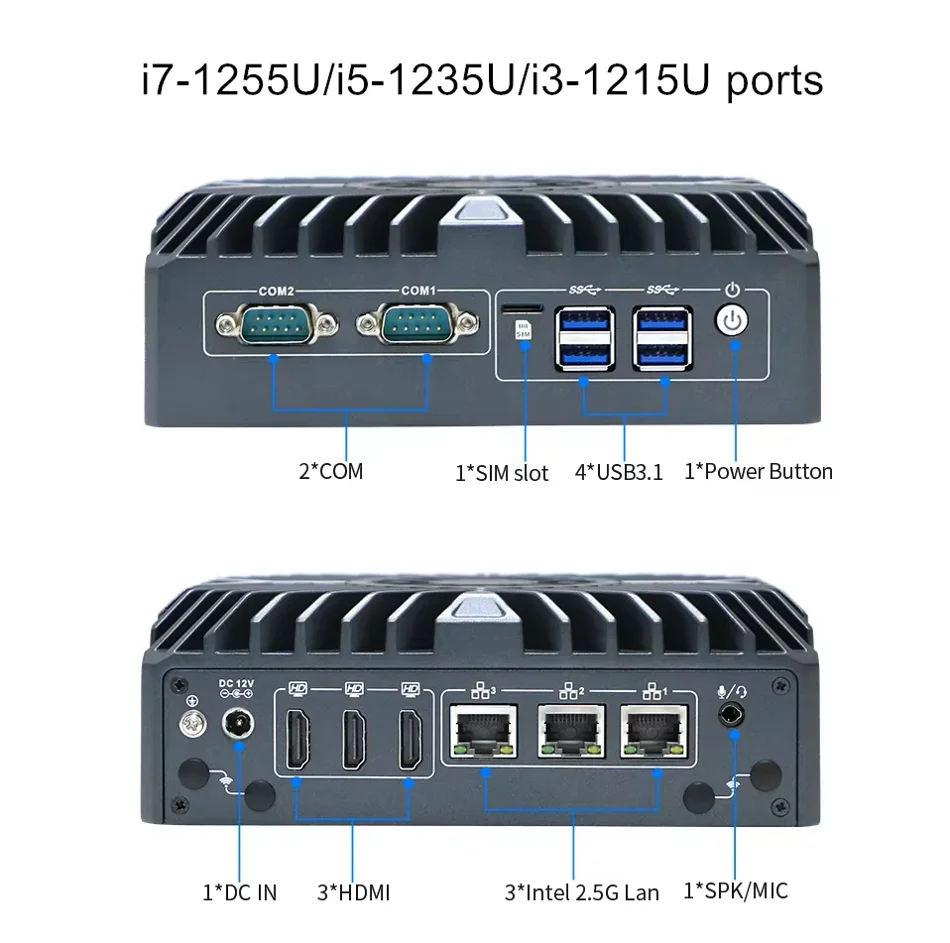

2*COM ( RS232/485), 1*SIM card slot, 4*USB 3.2, 1*Power Button |
|
RearI/O |
1*DC-IN , 3*2.5G LANs, 1* Audio ( Support Mic & Speaker ) |
|
Expansion Slot |
1*M.2 2280 M-Key slot (NVME protocol, PCIE4.0/3.0) |
|
1*M.2 2230 E-key slot (supports WIFI, BT) |
|
|
1*MINI PCIE slot (PCIE &USB2.0 , supports 4G/WIFI), external SIM card slot (Nano card) |
|
|
Network |

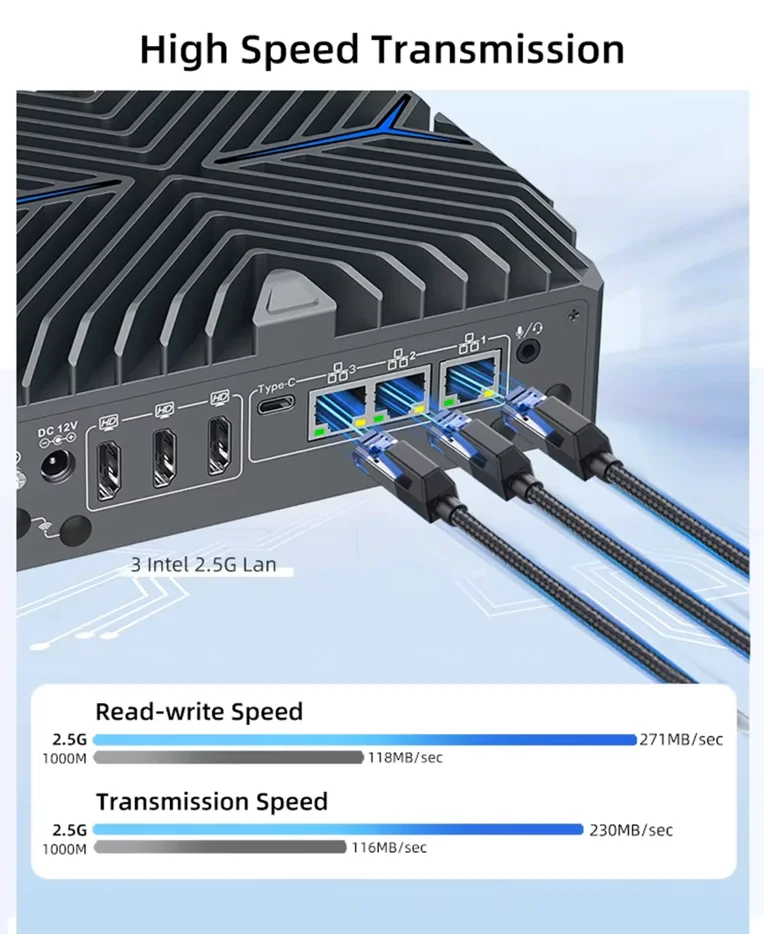

3*Intel i226-V 2.5G LANs |
|
Other Function |
Auto power on, RTC, Wake On LAN, PXE boot, Watchdog (0～255 Level), TPM2.0 security encryption |
|
Power Supply |
DC 12V |
|
Work Temp |
0℃ ～ +40℃（Commercial HDD），-20℃ ～ +50℃（Industrial SSD），Surface air flow |
|
Work Humidity |
5% ～ 95% non-condensing |
|

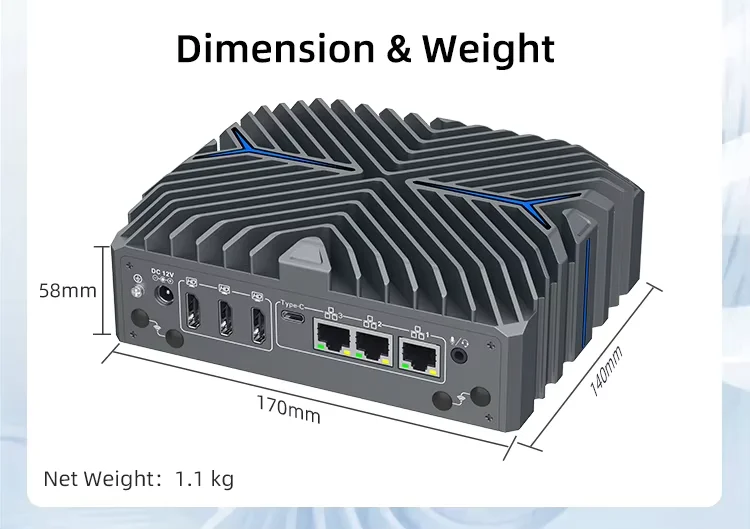

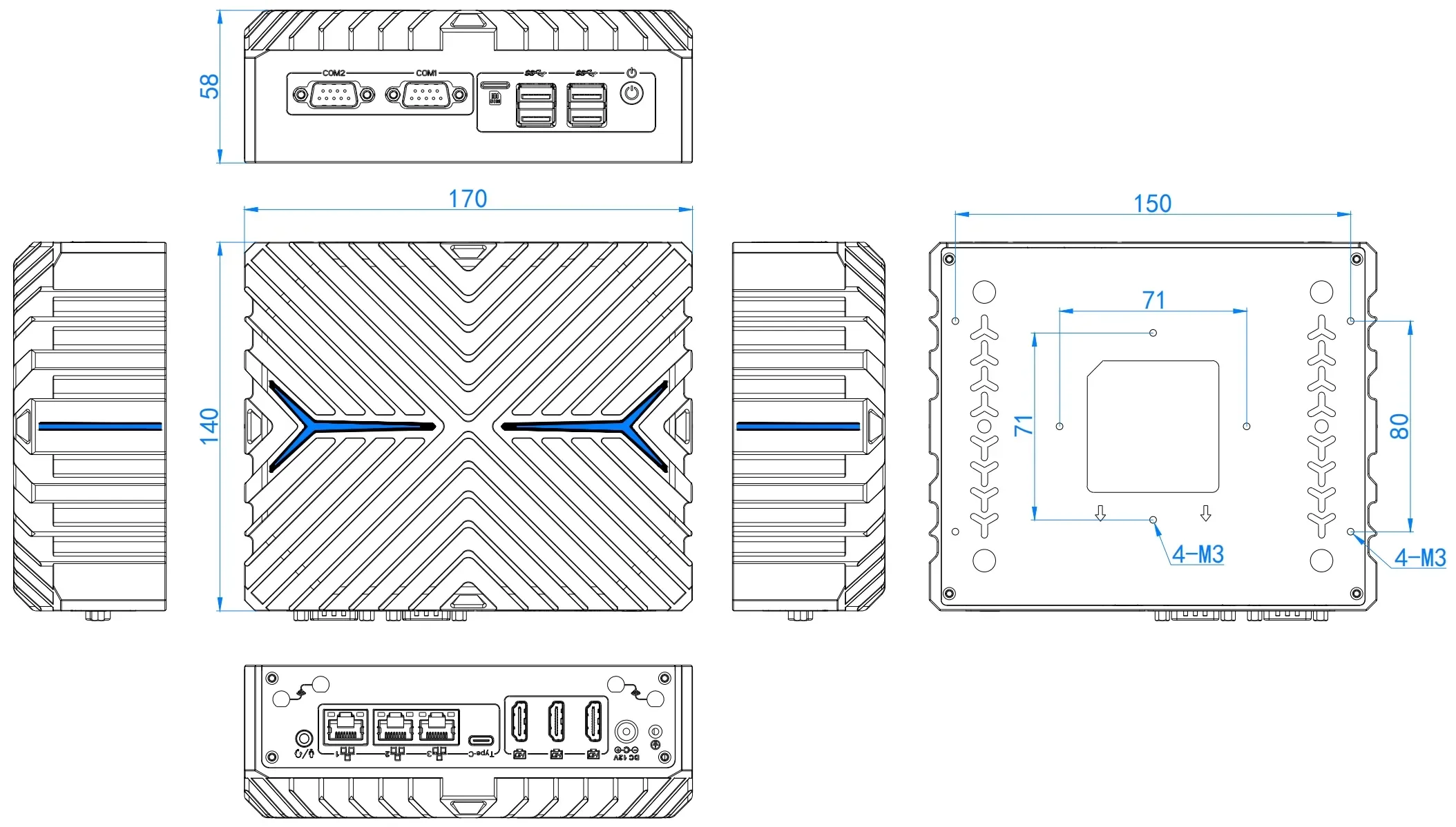

Dimension |

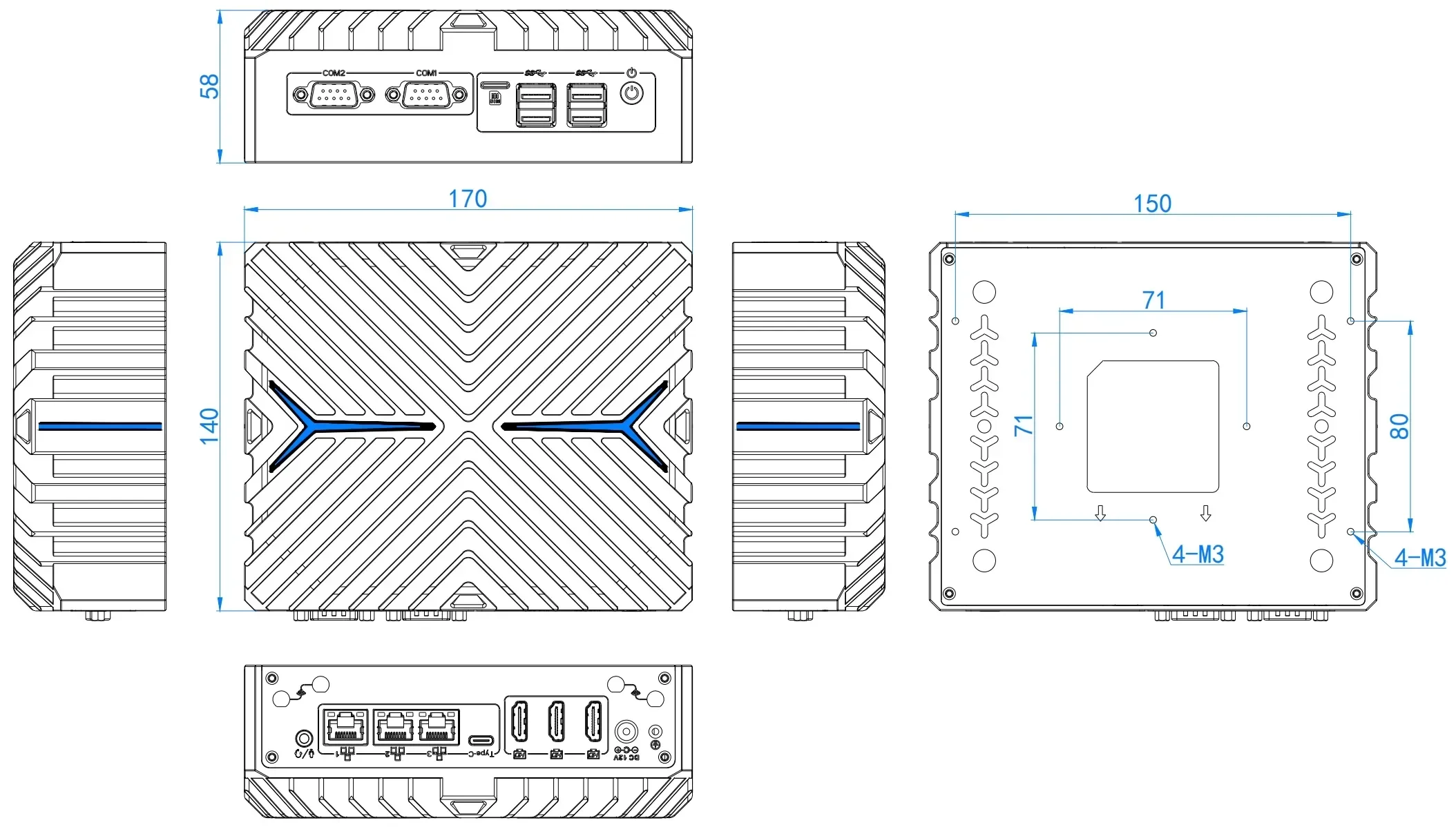

170 * 140 * 58 mm |
|
Weight |
1.1 kg |
|
Application |
Industrial Control, Industrial Automation, Robot, IoT gateway, Edge computing, Machine Vision, AGV/AMR, etc |
