Name: Topton H14 Firewall Mini PC 4*/2*10G SFP+ Intel I7 13620H 8505 4xi226-V 2.5G 2*DDR5 NVMe Industrial Computer Home Server Proxmox
SKU: 1005010280636725
Availability: InStock

Topton H14 Firewall Mini PC 4*/2*10G SFP+ Intel I7 13620H 8505 4xi226-V 2.5G 2*DDR5 NVMe Industrial Computer Home Server Proxmox

Description

Battery Included: no
High-concerned chemical: none
Model Number: H14
Type: Embedded Computer
Brand Name: Topton
Origin: Mainland China

This link bundle: No Ram No Storage No OS

Processor parameter for referance only

Processors	Cores & Threads	L3 Cache	Base Frequency	Max Turbo Frequency	TDP	Graphics
Core i7-13620H	10 cores, 16 threads	24M	/	4.90 GHz	45W	Intel UHD Graphics max 1.50GHz
Core i5-12450H	8 cores, 12 threads	12M	/	4.40 GHz	45W	Intel UHD Graphics max 1.20GHz
Pentium Gold 8505	5 cores, 6 threads	8M	/	4.40 GHz	15W	Intel UHD Graphics max 1.10GHz

Product Highlight

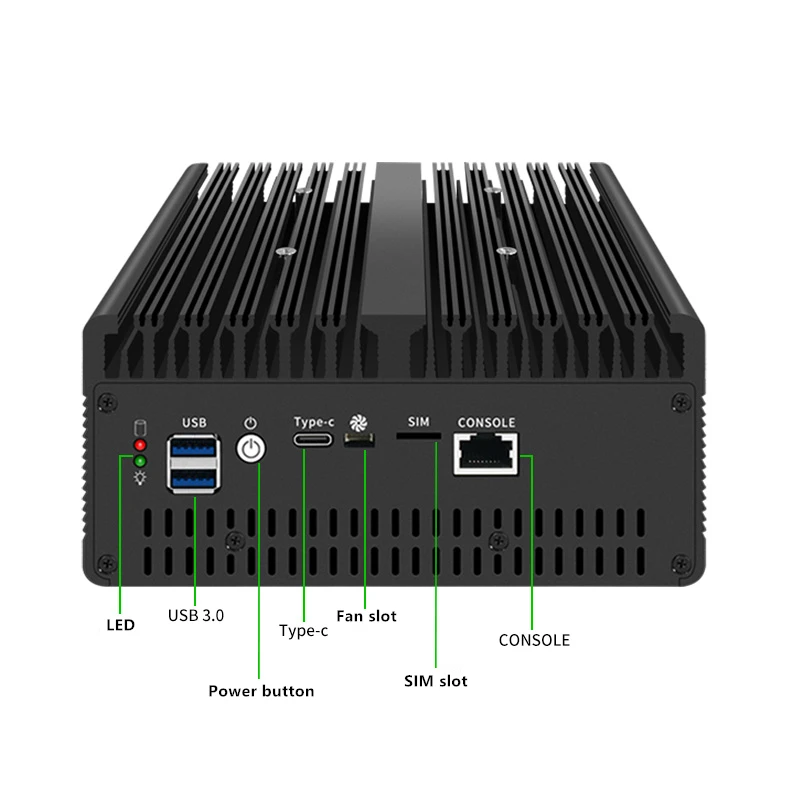

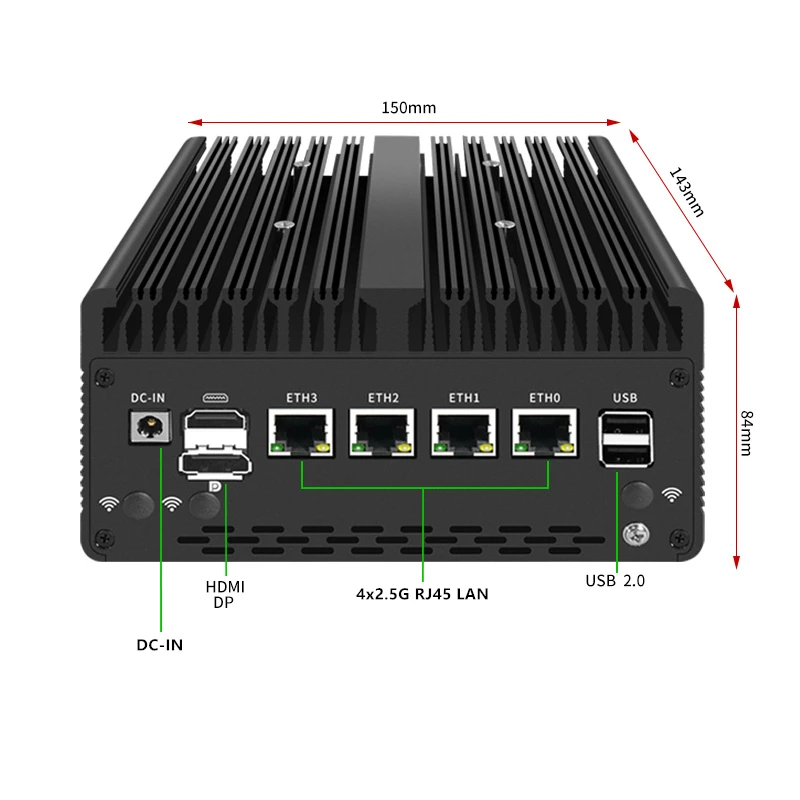

-4xIntel i226-V 2.5G RJ45 LANs, 2xUSB3.0, 2xUSB2.0, 1xType-C USB2.0, 1xSIM_5G slot, 1xRJ45 CONSOLE.

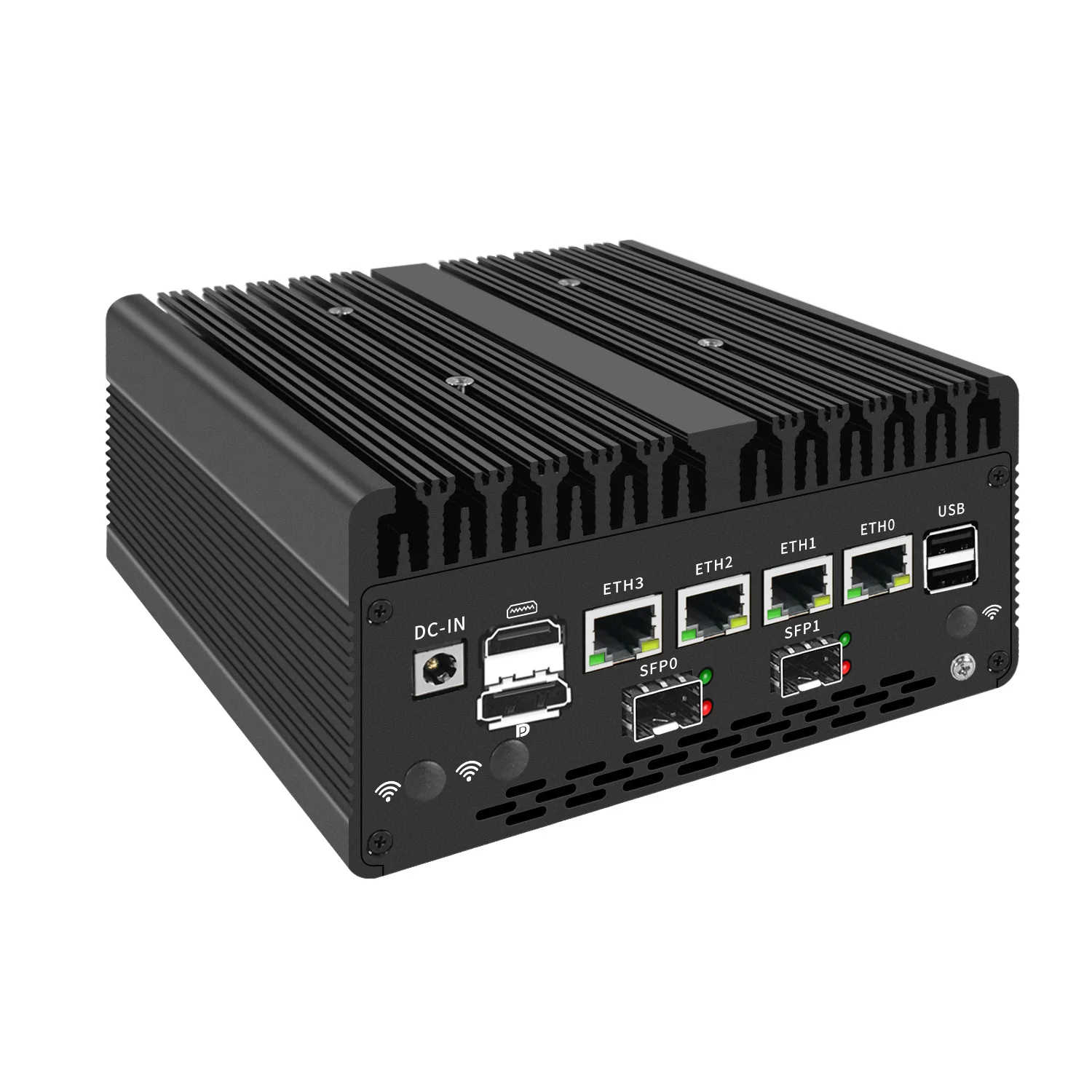

1*PCle x8 expansion slot PCIE3.0x4 signal optional: Intel 82599ES 2*10G SFP+ module or Intel X710-DA4 4*10G SFP+ module or Intel I350-AM4 4*1G SFP module.

-2xDDR5 SODIMM non-ecc laptop ram slot, support max 64GB 4800MHz.

-Support 1xM.2 NVME/PCIEx4 2280 SSD+1xSATA3.0.

-1xM.2 2230 slot, support PCIE3.0/USB/CNVI signal, 1xM.2 3052 slot, support PCIE3.0/USB signal.

-1xHDMI, 1xDP support 2x4K UHD video display.

-Support AES-NI, ESXI, PVE, Watchdog, Auto power on, RTC, PXE boot, Wake-on-LAN etc.

-Solid-built full aluminum shell with high tooth fins as heat-sink, efficient cooling performance, exquisite production craft on outside design. Also we include a 4pins external fan as gift if you still worry heat.

Welcome to click the picture of VESA Bracket to order together if you need:

Reviews (0)

Reviews

There are no reviews yet.

Be the first to review “Topton H14 Firewall Mini PC 4*/2*10G SFP+ Intel I7 13620H 8505 4xi226-V 2.5G 2*DDR5 NVMe Industrial Computer Home Server Proxmox”

You must be logged in to post a review.

Shipping & Delivery

Q1. Can you provlde OEM/ODM service? How much do l need to pay for your OEM service?Re. Yes we can. The charges for OEl service depends on the different level of customize. the process of customization isfollowing.1) provide your specific requirement.2)our desiqn engineer draw the design draft3)you confirm the design draft.4) we start produce it.
Q2. Can you print my logo on the minl computer ?
Re. Yes, it is support . And we could print your logo on the pc for free !Pls contact me for logo printing ,)
Q3. What Is the Minimum Order Quantity (MOQ)?
Re: We can sell one piece sample for your test
Q4. What ls the lead tlme of your products?Re. Sample order within 3-7 business days . Bulk order within 3~15 business days ( depends on order gty) ,we will test themodel to insure the quality before shipping.
Q5. How wlll you dellver my goods to me?
Re. We shin by alr generally, in the meantime, we cooperate with intemnational expresses such as DHl. UpS, FedEx. andTNT tO enable our customers to get their goods rapidly.
