- High-concerned chemical: none
- Use: Commercial
- Memory Capacity: ≥ 4GB
- Hard Drive Capacity: ≥ 1.5TB
- Model Number: X6F
- Processor Brand: Intel
- Processor Model: i5-1235U/i7-1255U
- Type: Mini Desktop
- Graphics Card Type: Integrated Card
- Brand Name: Topton
- Origin: Mainland China
- Type: Mini PC
WiFi/4G card is optional to buy. LAN1-4 POE function is optional. EU/US/UK/AU plug based on buyer's country.
|
Model |
Firewall Mini PC |
|
Color |
Metal gray |
|
Material |
High-quality all aluminum,surface hard anodized |
|
Processor |
Intel Core i3 1215U (Six cores Eight threads, turbo frequency up to 4.4 GHz) |
|
Intel Core i5 1235U (Ten cores Twelve threads, turbo frequency up to 4.4 GHz) |
|
|
Intel Core i7 1255U (Ten cores Twelve threads, turbo frequency up to 4.8 GHz) |
|
|
Memory |
2*DDR4 SODIMM Ram slots, Max 64GB |
|
BIOS |
AMI UEFI BIOS |
|
Chipset |
Intel Iris Xe/UHD Graphics |
|
Display Port |
1*DP,1*HDMI(Support synchronous/asynchronous dual display, 4096*2160@60Hz) |
|

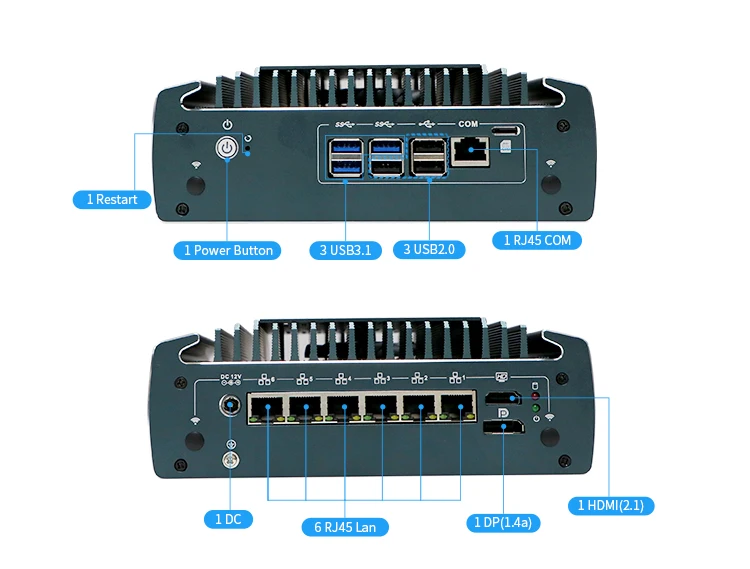

Front I/O |
1 Power Button, 1 Restart , 3 USB3.1, 3 USB2.0, 1 RJ45 COM (support Console function) |
|
Rear I/O |
1 DC , 6 RJ45 Lan , 1 DP(1.4a) , 1 HD(2.1) |
|

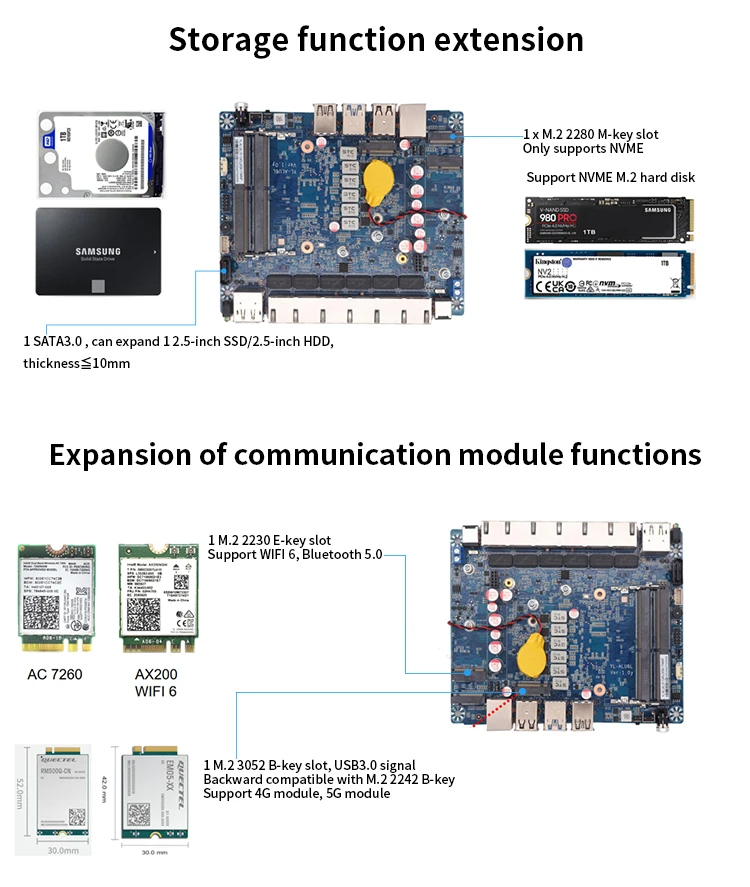

Expansion Slot |
1 M.2 2280 M-key slot (only supports NVME protocol) |
|
1 M.2 3052 B-key slot (USB3.0 signal, support 4G/5G), external SIM card slot |
|
|
1 M.2 2230 E-key slot (support WIFI, BT) |
|
|
Network |

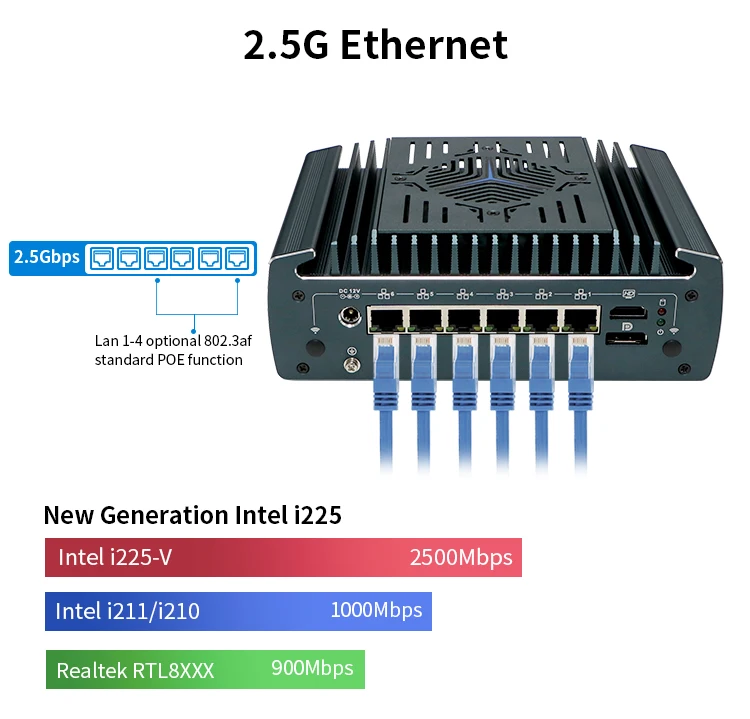

6 Intel i225/i226-V 2.5G Ethernet, Lan 1-4 optional 802.3af standard POE |
|
Storage |
1 M.2 2280 slot, 1 2.5-inch SSD/HDD |
|
Power Supply |
DC 12V |
|
Other Function |
Auto power on when there is electricity, Timing boot, Wake on LAN, PXE boot, watchdog (level 0-255) |
|
Work Temp |
0℃ ～ +50℃（Commercial HDD），-20℃ ～ +50℃（Industrial SSD），Surface air flow |
|
Work Humidity |
0% ～ 95% non-condensing |
|
Dimension |
186*126.5*66mm |
|
Weight |
1.3 kg |
|
Application |
Firewall, VPN, Network server, Network security, Routing etc. |
