- High-concerned chemical: none
- Use: Commercial
- Memory Capacity: ≥ 4GB
- Hard Drive Capacity: 1TB
- Model Number: X4H-10GRJ45
- Processor Brand: Intel
- Processor Model: Intel N150
- Type: Mini Desktop
- Graphics Card Type: Integrated Card
- Brand Name: Topton
- Origin: Mainland China
- Type: Mini PC
|
Processors |
Cores & Threads |
Cache |
Max Turbo Frequency |
TDP |
Graphics |
|

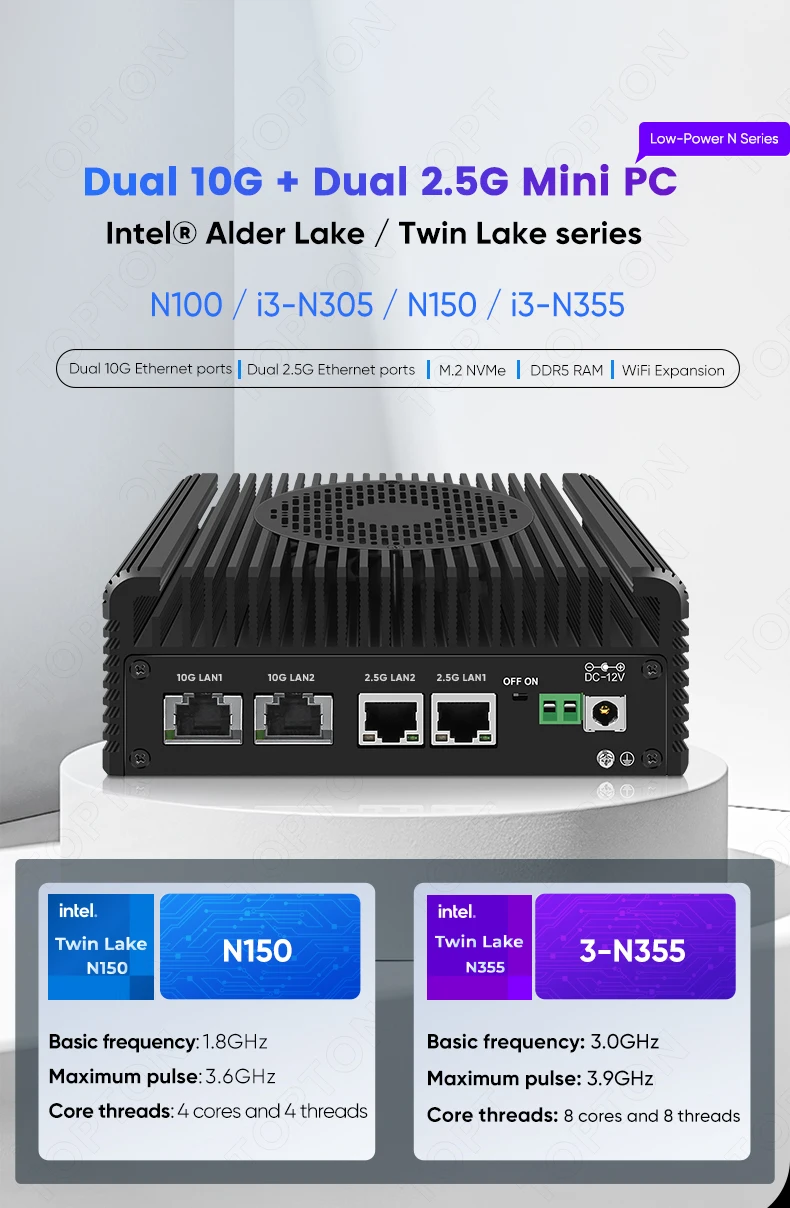

Intel N150 |
4 cores, 4 threads |
6M |
3.60 GHz |
6W |
Intel UHD Graphics 24EUS |
|
Intel Core 3-N355 |
8 cores, 8 threads |
6M |
3.90 GHz |
15W |
Intel UHD Graphics 32EUS |

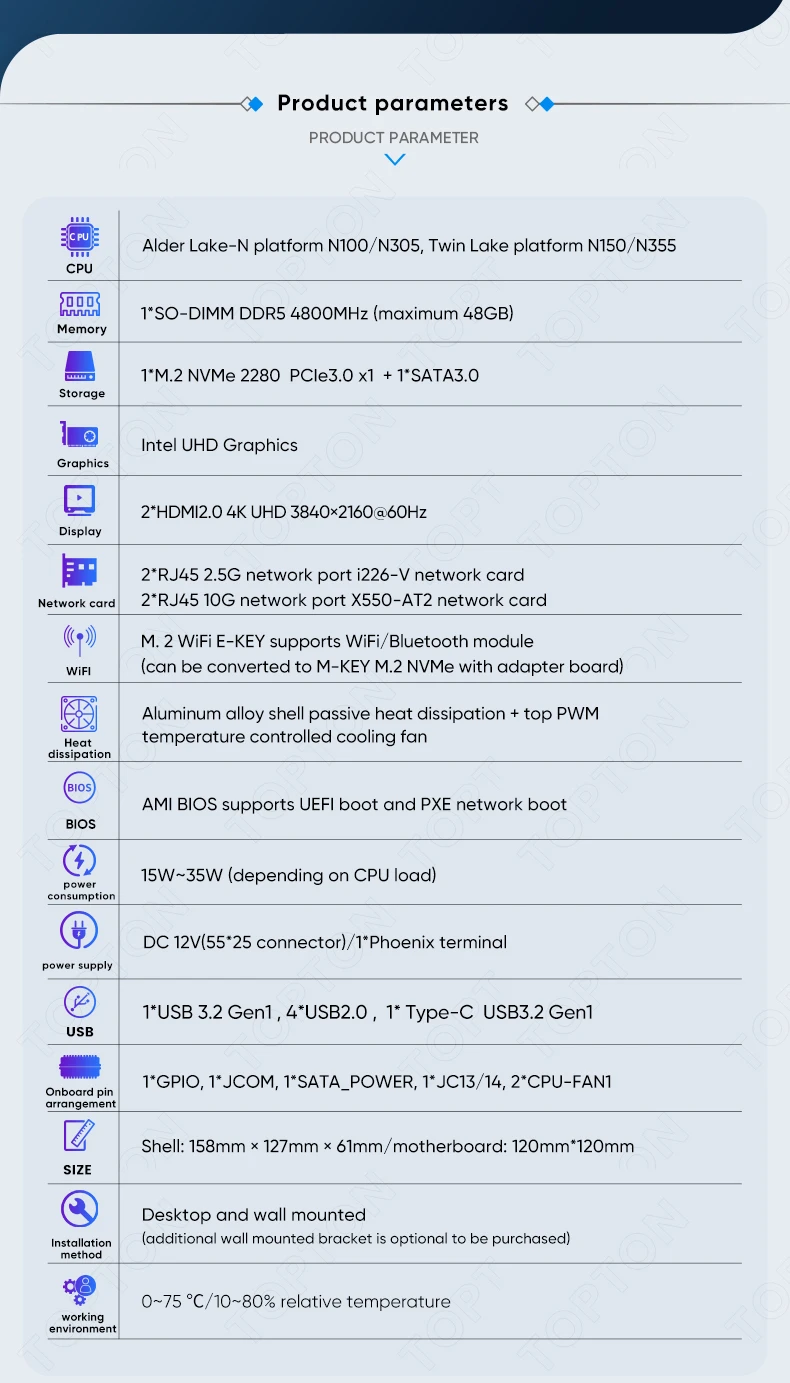

Product Highlight

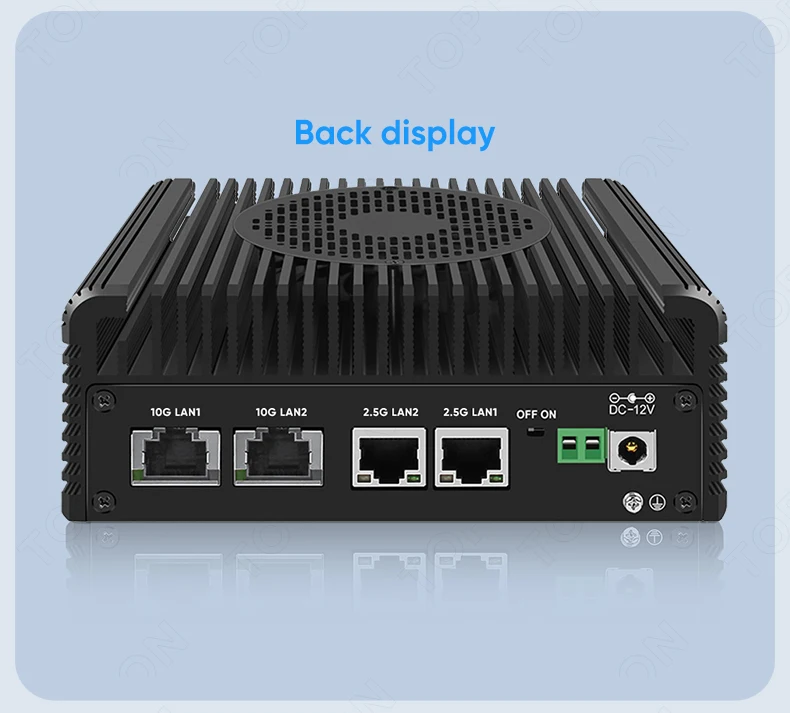

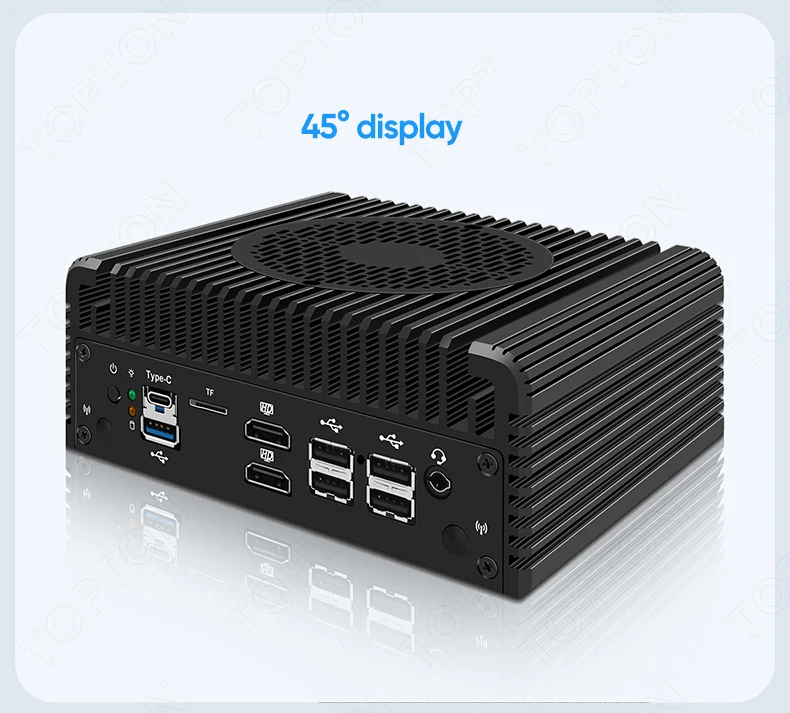

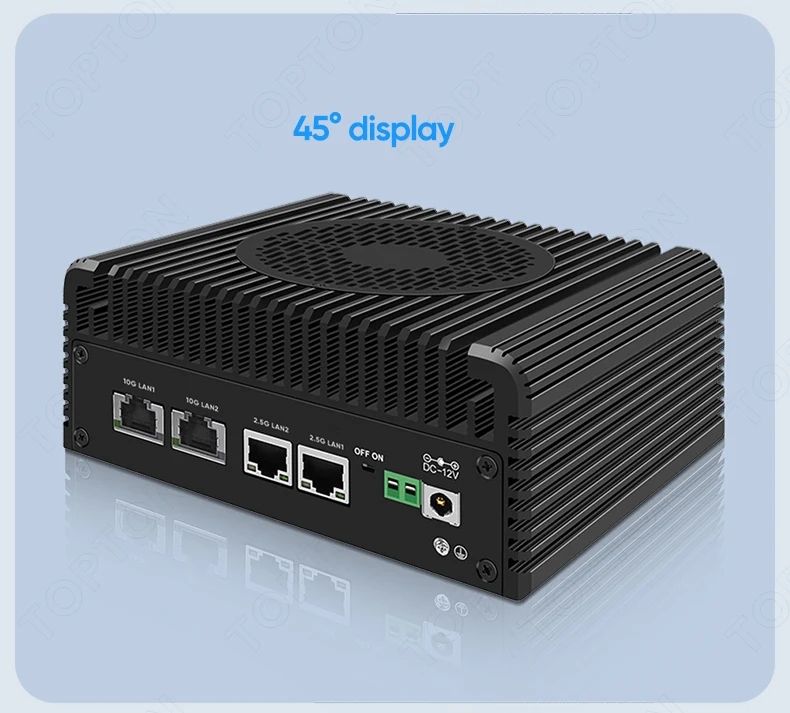

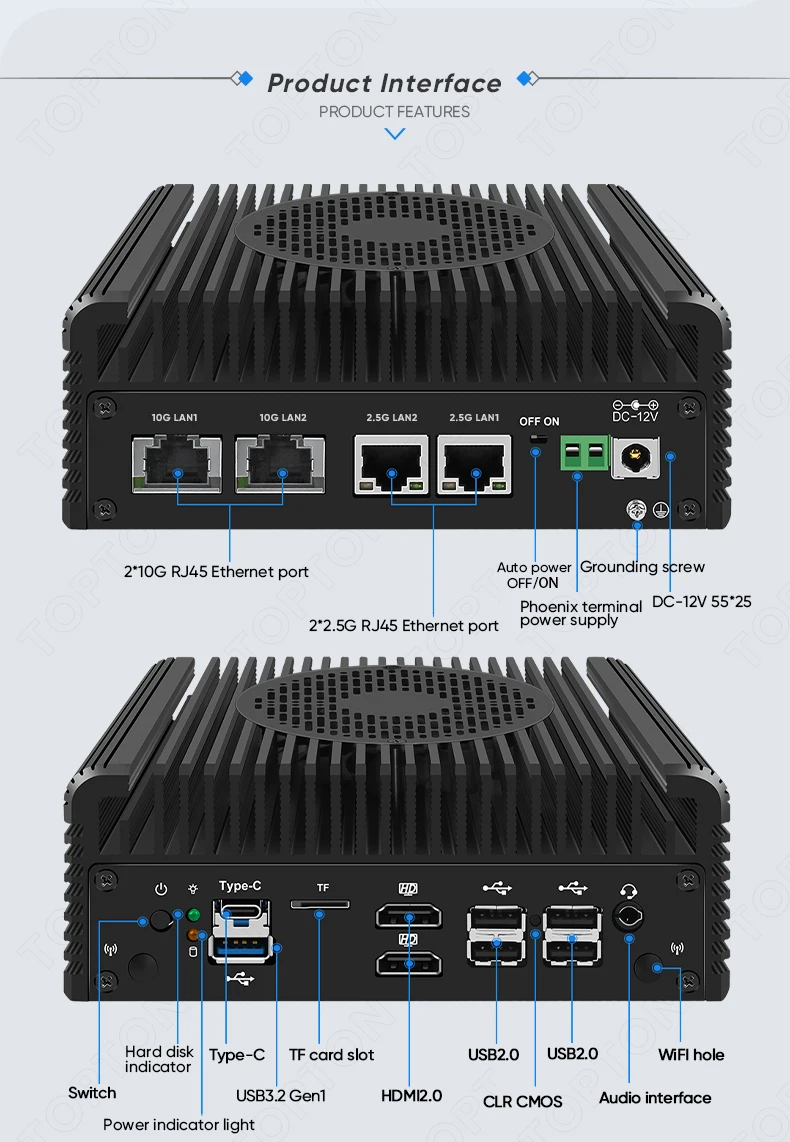

-2xIntel X550 10G Rj45 LANs, 2xIntel i226-V 2.5G RJ45 LANs, 1xType-C 3.2 Gen1, 1xUSB3.2 Gen1, 4xUSB2.0.

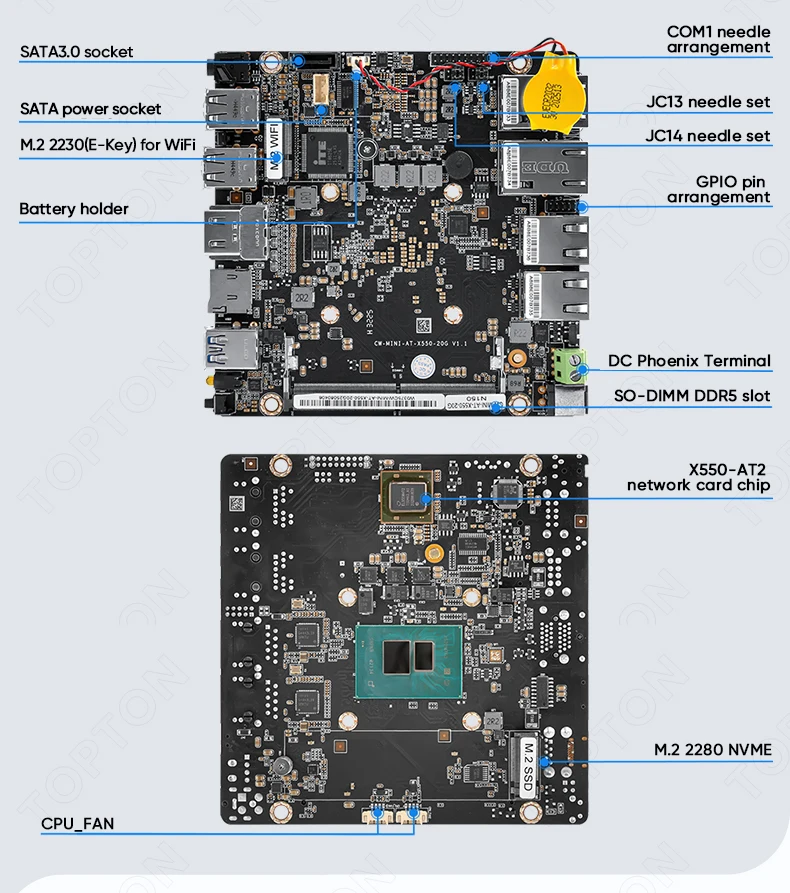

-1xDDR5 SODIMM ram slot, support 4800MHz.

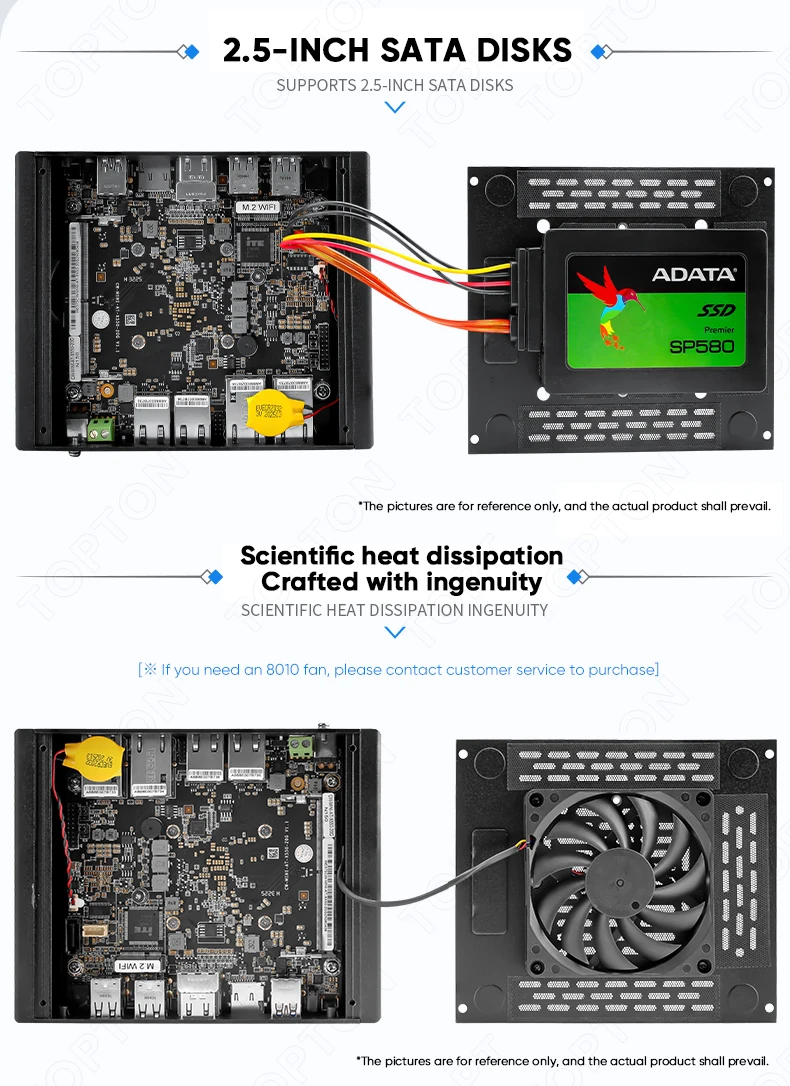

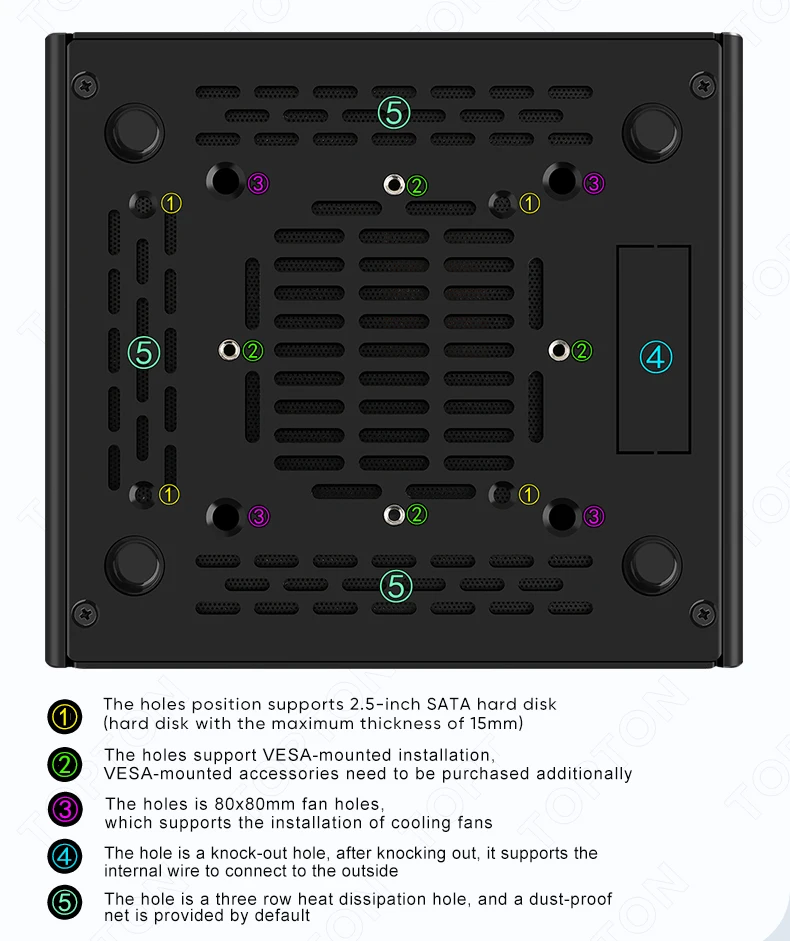

-Support 3 storage: 2xM.2 NVMe(PCIe3.0x1, one on the back of motherboard) 2280 SSD+1×2.5-inch SATA3.0 SSD/HDD.
-1xM.2 E key 2230 slot, support WiFi6&Bluetooth connection and support transfer to 2280 NVMe by adapter board.
-1xTF card slot support storage and partial system boot.

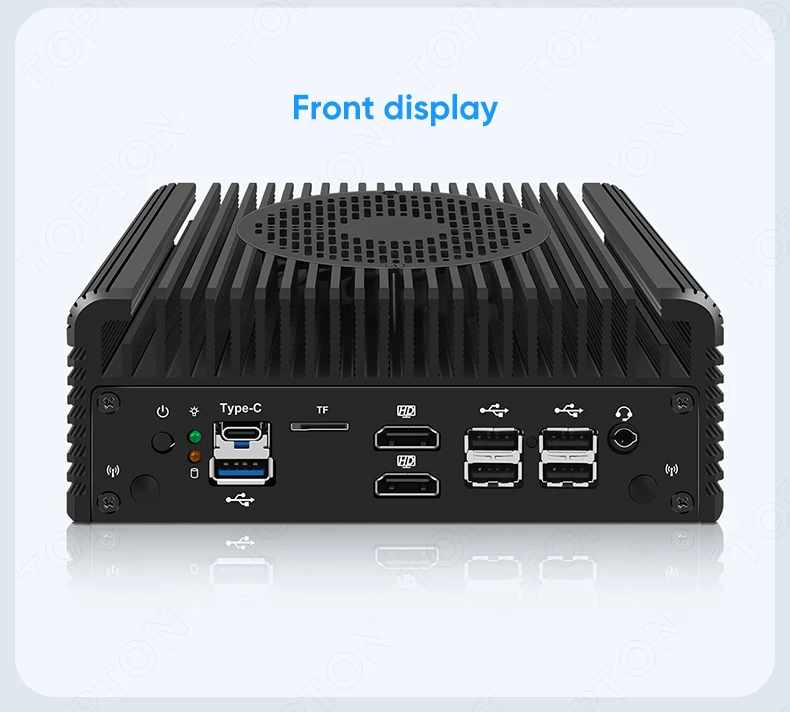

-2xHDMI2.0 support 2x4K@60Hz UHD video display.

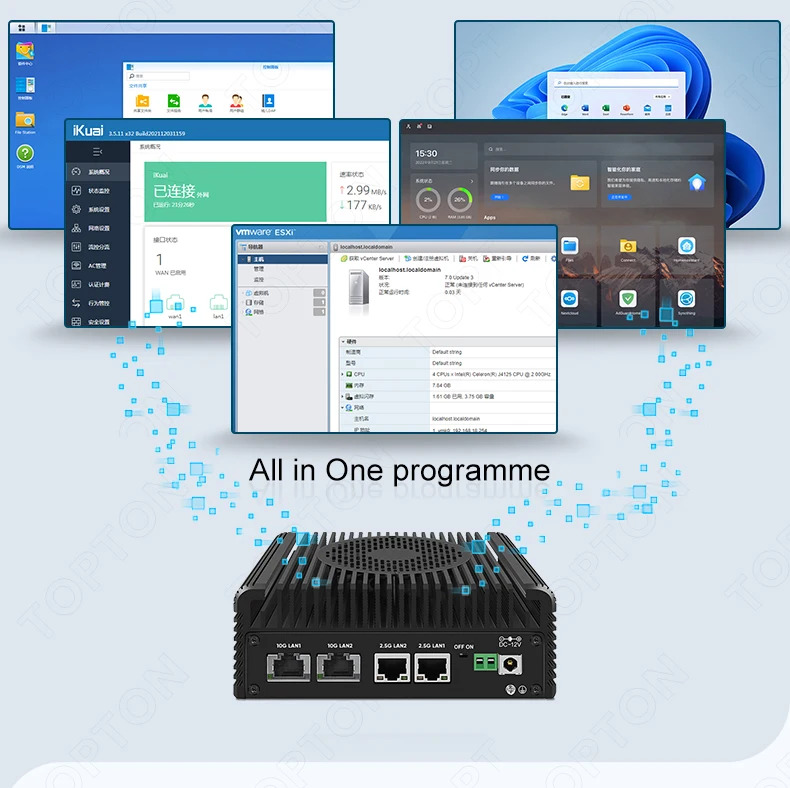

-Support AES-NI, ESXI, PVE, Watchdog, Auto power on, RTC, PXE boot, Wake-on-LAN etc.

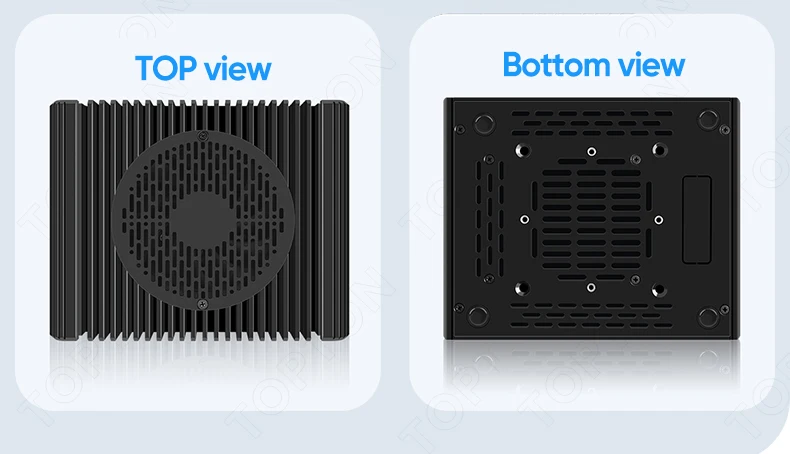

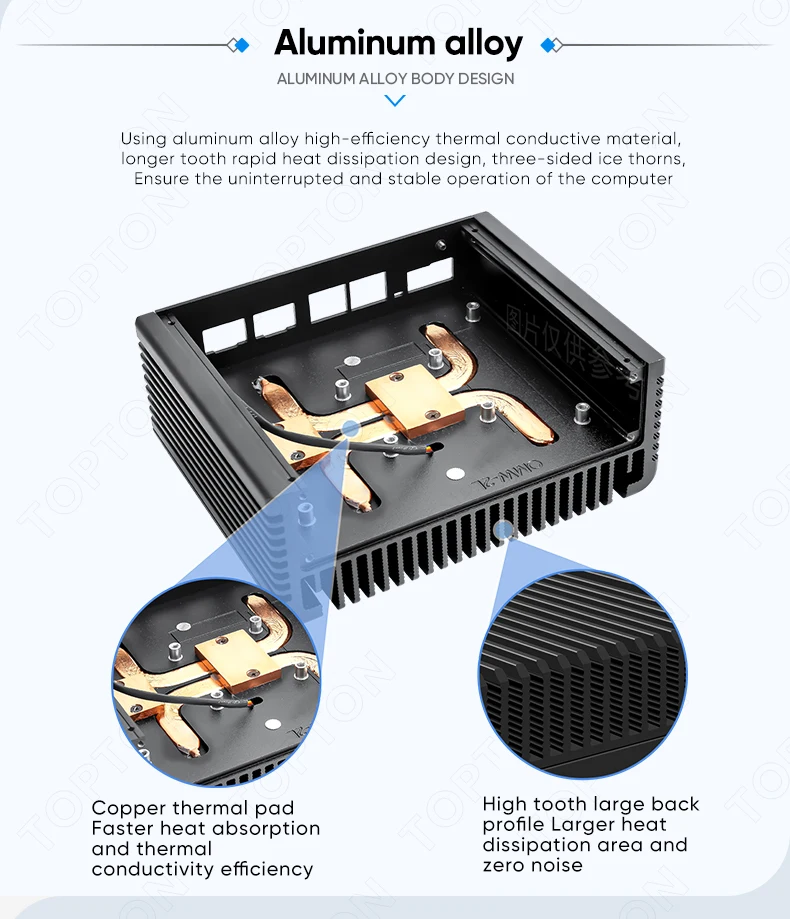

-Innovation: It is flexible to change between fanless system and fan system. A fan built in solid aluminum case already with high tooth fins and copper block gets much better heat dissipation to improve CPU performance significantly, sound of the fan is low. You can unplug fan pin off motherboard to make it fanless system if you want silence totally.

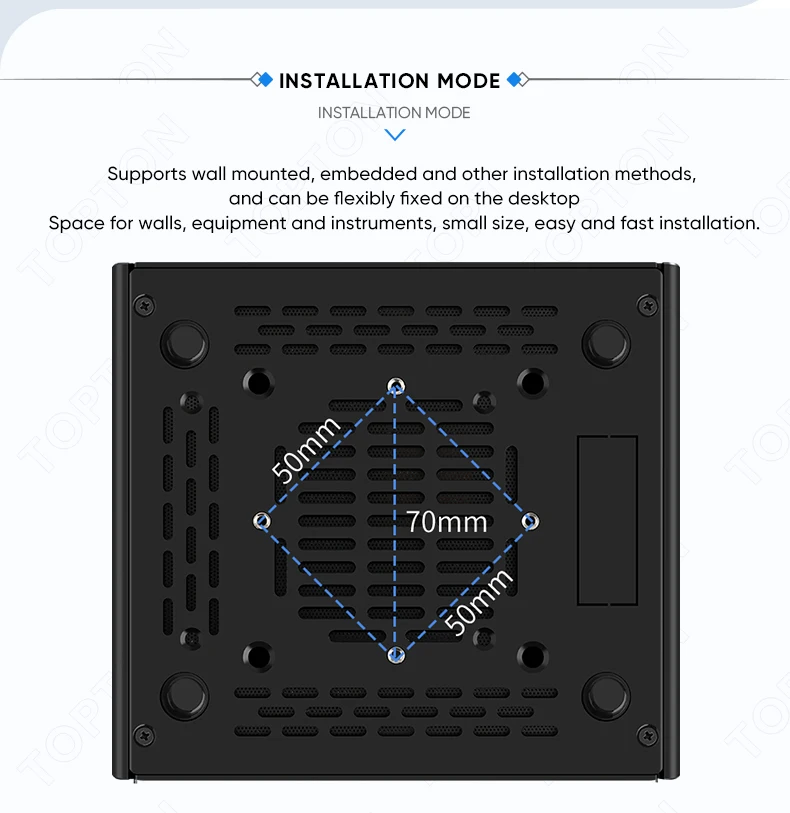

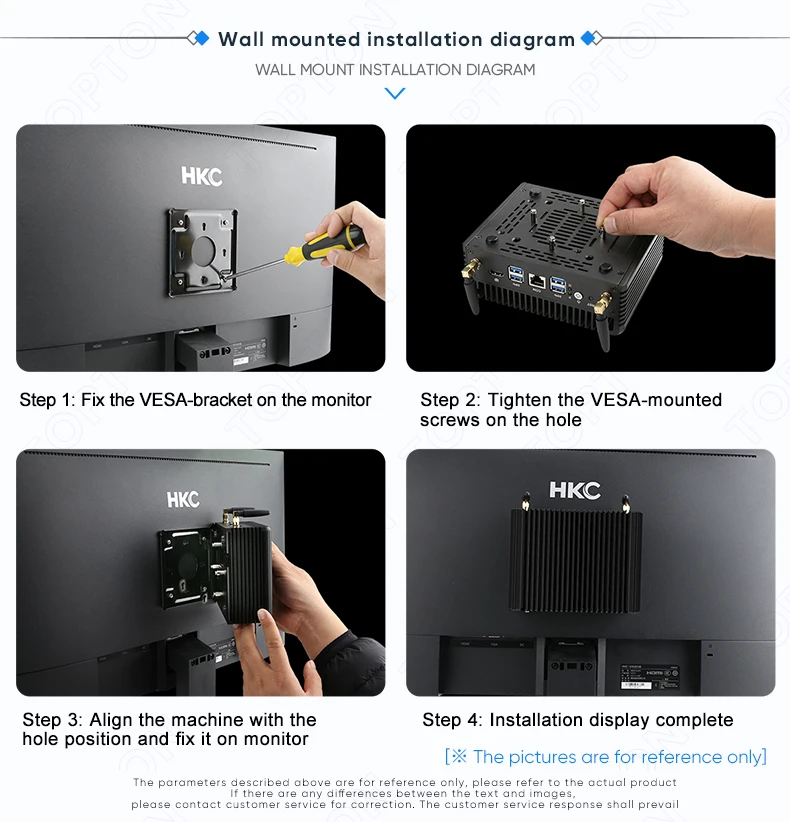

-Low consumption TDP and can be mounted back of monitor by VESA bracket(optional).
Package List
1xMini PC
1xPower Adapter
1xPower Cable(EU/US/UK/AU plug based on buyer's country)
1xM.2 2230 to 2280 NVMe adapter board
Welcome to click the picture of VESA Bracket to order together if you need:
