- Battery Included: no
- High-concerned chemical: none
- Model Number: 1U-4L
- Type: Embedded Computer
- Brand Name: Topton
- Origin: Mainland China
|
Processors |
Cores & Threads |
Cache |
Max Turbo Frequency |
TDP |
Graphics |
|
Intel N97 |
4 cores, 4 threads |
6M |
3.60 GHz |
12W |
Intel UHD Graphics 24EUS |
|
Intel N150 |
4 cores, 4 threads |
6M |
3.60 GHz |
6W |
Intel UHD Graphics 24EUS |
|
Processor |
CPU |
Intel Alder Lake-N N97/N100/N150/N305/N355 |
|
chip set |
Intel®Alder Lake-N |
|
|
BIOS |
AMI 128M BIOS with ACPI supported, auto power on |
|
|
Memory |
Slot |
1*DDR5 memory slot, SO-DIMM, supports up to 32GB |
|

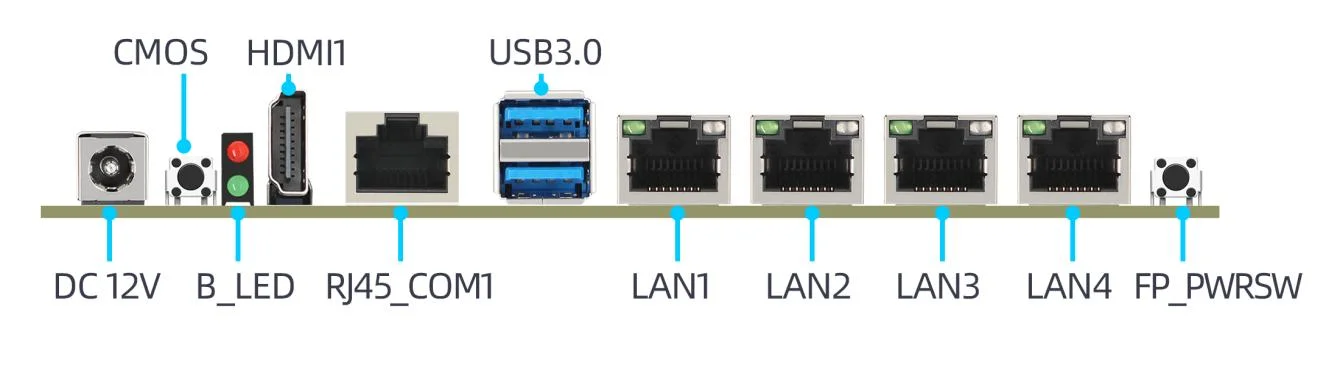

Display |
1*HDMI |
HDMI supports 4096×2160@60Hz |
|
1*VGA |
2 choose 1 with LVDS interface (1×12-pin pinout, 2.0mm) |
|
|
1*LVDS |
The CH7513 is compatible with EDP, featuring a 2×15-pin row connector and a 2.0mm |
|
|
Multi-display support |
VGA/HDMI/LVDS, supports synchronous or asynchronous display |
|
|
Network |
LAN |
4*LAN ports (Intel i226-V) |
|

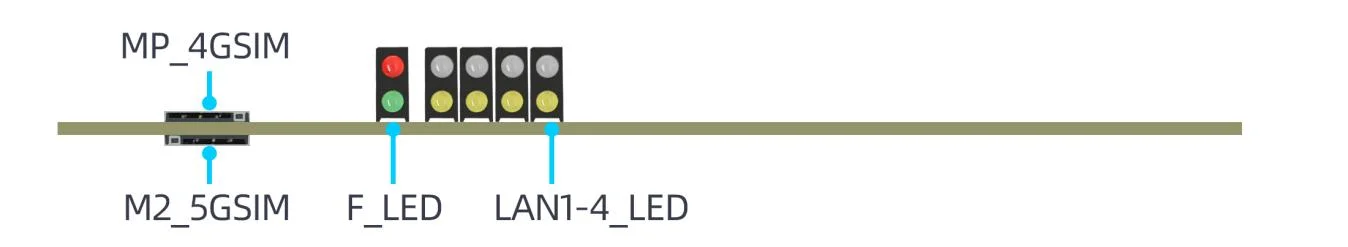

SIM |
1*MPCIE-4GSIM card slot, 1*M.2-5GSIM card slot |
|
|
COM |
RJ45_COM1 |
1*RS232 |
|
COM2 |
6*RS232,2.00mm pin, COM2 supports RS485 |
|
|
USB |
USB3.0 |
2*USB3.0 |
|
USB2.0 |
6 USB 2.0 ports, 2*5-pin connectors (2.00mm), and 1 USB 2.0 port with encryption |
|
|
Storage |
SATA |
1*SATA III interface, maximum transfer rate 6 Gb/s |
|
M.2 |
1*M.2 SSD 2280（ NVME/NGFF） |
|
|
Extension interface |
MPCIE |
1*MPCIE |
|
4G/5G |
1*M.2 B-KEY (Supports 4G/5G modules) |
|
|
Hardware monitoring |
Watchdog |
0-255S, system reset |
|
Fan |
CPU Fan/System Fan Speed Detection and Intelligent Control |
|
|
Hardware control |
Auto power on |
JATX_AT jumper selection: short 1-2 pins OFF, short 2-3 pins ON |
|
TPM |
TPM2.0 Hardware Encryption |
|
|
GPIO |
Supports 4 input/output channels |
|
|
Power supply |
DC_IN |
Wide voltage 12-24V, DC connector 5.5*2.5mm |
|
Temperature |
storage temperature |
-20℃ -70℃ |
|
working temperature |
-0℃ -60℃ |
|
|
PCB |
Size |
170mm*170mm |
