- Battery Included: no
- High-concerned chemical: none
- Model Number: G8
- Type: Embedded Computer
- Brand Name: Topton
- Origin: Mainland China
|
Processors parameter for referance only |
Intel Core i7 1165G7 ( 12M Cache, 4 core 8 threads, 2.80 GHz up to 4.70 GHz, Intel Iris Xe Graphics ) |
|

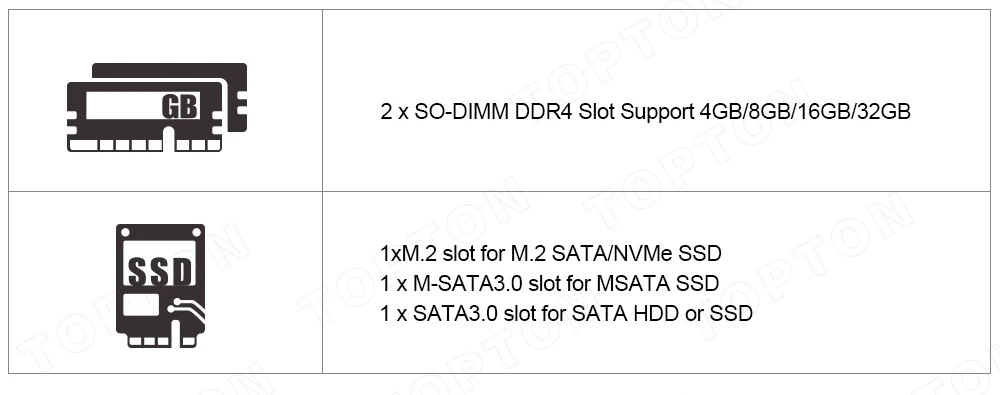

Memory |
2xDDR4 SODIMM slots，max to 64GB ( 32GB x2 ) |
|
Ethernet |
2 x 2.5G RJ45 Intel i225/i226-V |
|

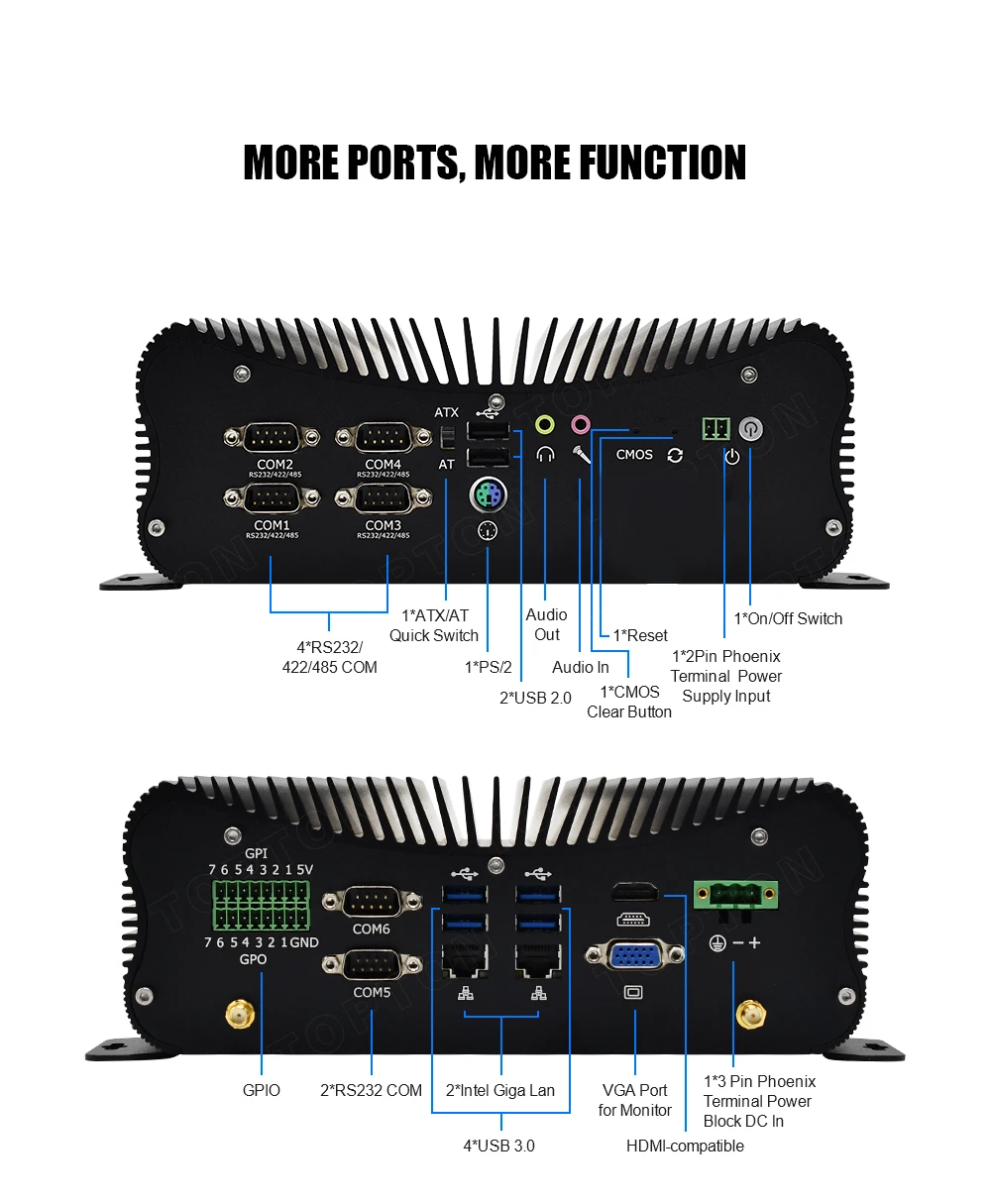

I/O |
4 x USB3.0，4 x USB2.0(2xUSB2.0 inside) |
|

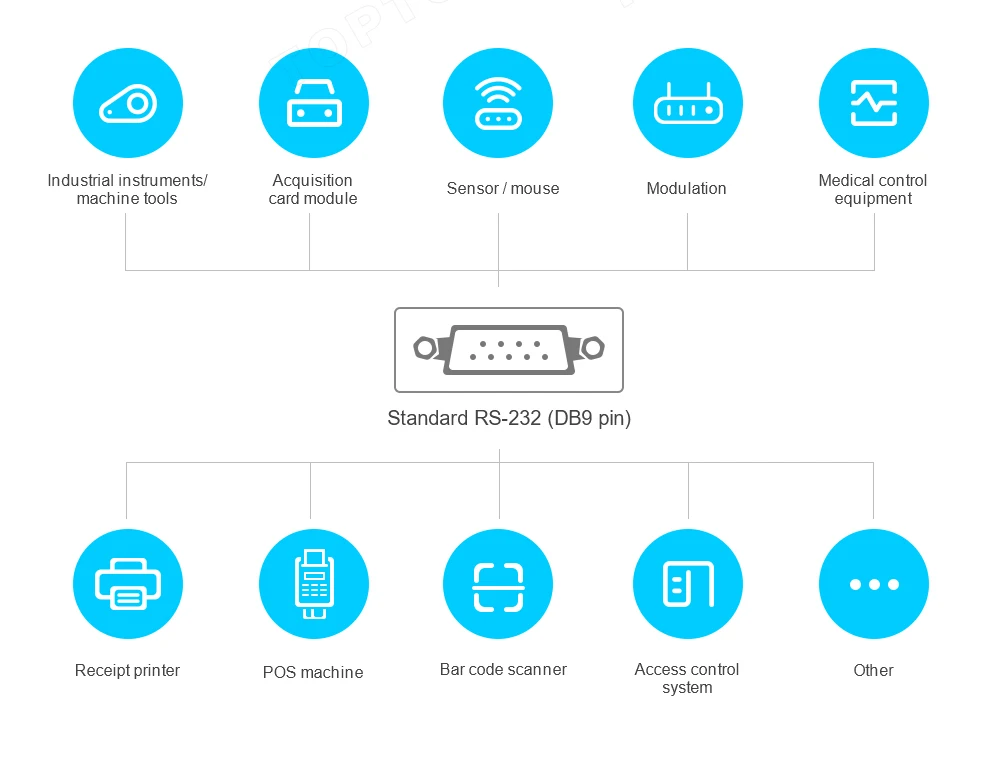

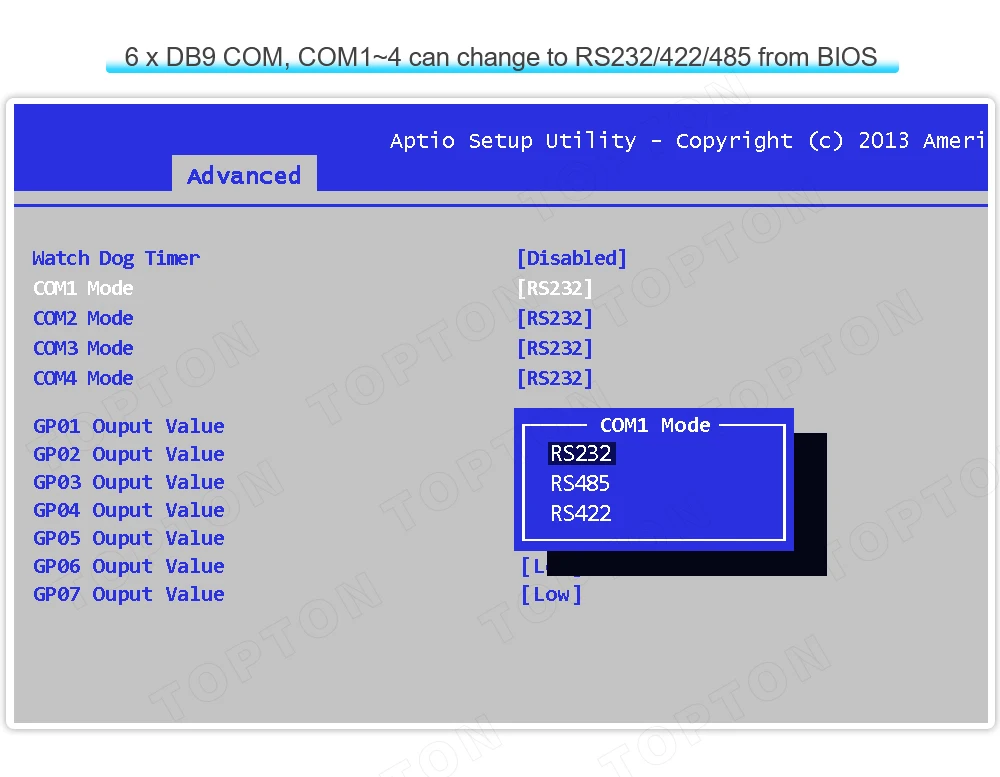

6 x DB9 RS232 COM（4 of them support adjust to RS485/RS422） |
|
|
1 x HDMI, 1 x VGA |
|
|
1 x PS/2 |
|
|
14 x GPIO（7 pin input，7 pin output） |
|
|
1 x Power Button, 1x2pin power switch, 1 x Reset Button，1 x Clear CMOS Button |
|
|
1 x 3pin phoenix DC IN，support voltage DC 9V to 36V |
|
|
1 x SPK 3.5mm，1 x MIC 3.5mm |
|
|
1 x ATX/AT switch |
|
|
2 x WiFi antennas connectors, applied for WIFI/3G/4G |
|
|

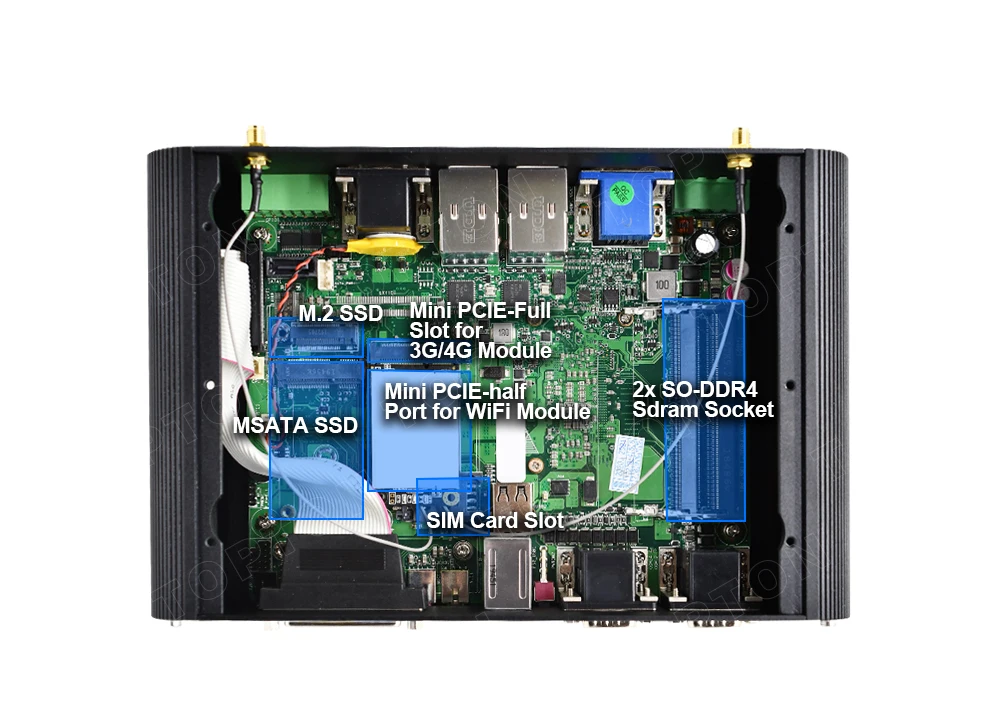

Storage |
1x MSATA3.0 SSD |
|
1x M.2 SATA/NVME 2280 SSD |
|
|
1x 2.5 inch HDD/SSD |
|
|
Expansibility |
Mini-PCIe x 1 half height size，support WiFI bluetooth |
|
Mini-PCIe x 1 full height size, 1x SIM card slot, support 3G/4G module，WIFI bluetooth |
|
|
IO x 1, support LPC，USB，PCIE |
|
|
OS Support |
Windows 11/10, LINUX etc |
|
Other function |
Watch dog，one key restore, non-disk booting, wake up on LAN, automatically power on after power restore |
|
Power Adapter |
AC100-240V IN |
|
Construction |
Fanless passive cooling |
|
Material |
Aluminum alloy |
|

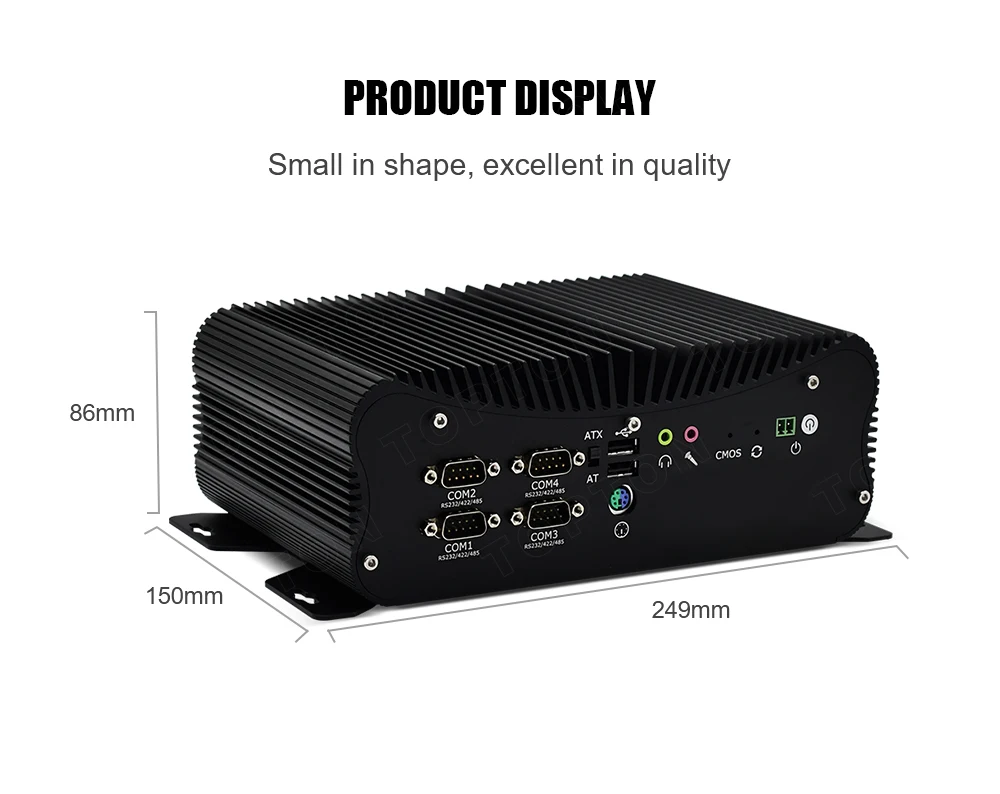

Dimension |
249 x 150 x 86 mm |
|
Netweight |
2.2 Kg |
|
Store Temp. |
-30℃ to +70℃ |
|
Working Temp. |
-20℃ to +60℃ |
|
RH |
10%~90% @30℃，Non-condensing |
|

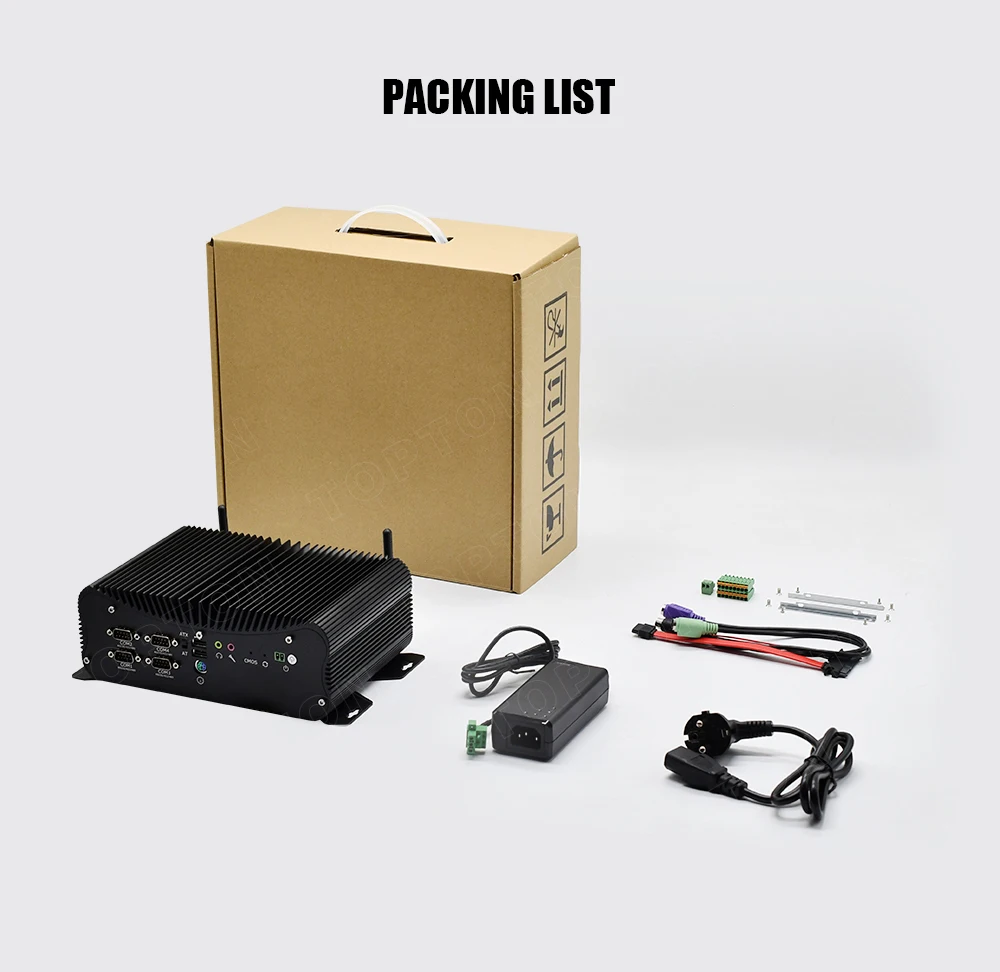

Package List |
1x Mini PC 1x AC Adapter 1x Power cord ( EU AU US UK type plug shipped according to buyer’s address ) 1x SATA cable |
All bundles on sale DO NOT include WiFi/3G/4G module, WiFi module cost US $10, 3G module cost US $50, 4G module cost US $70. If you need, pay at this link.
Product Highlight

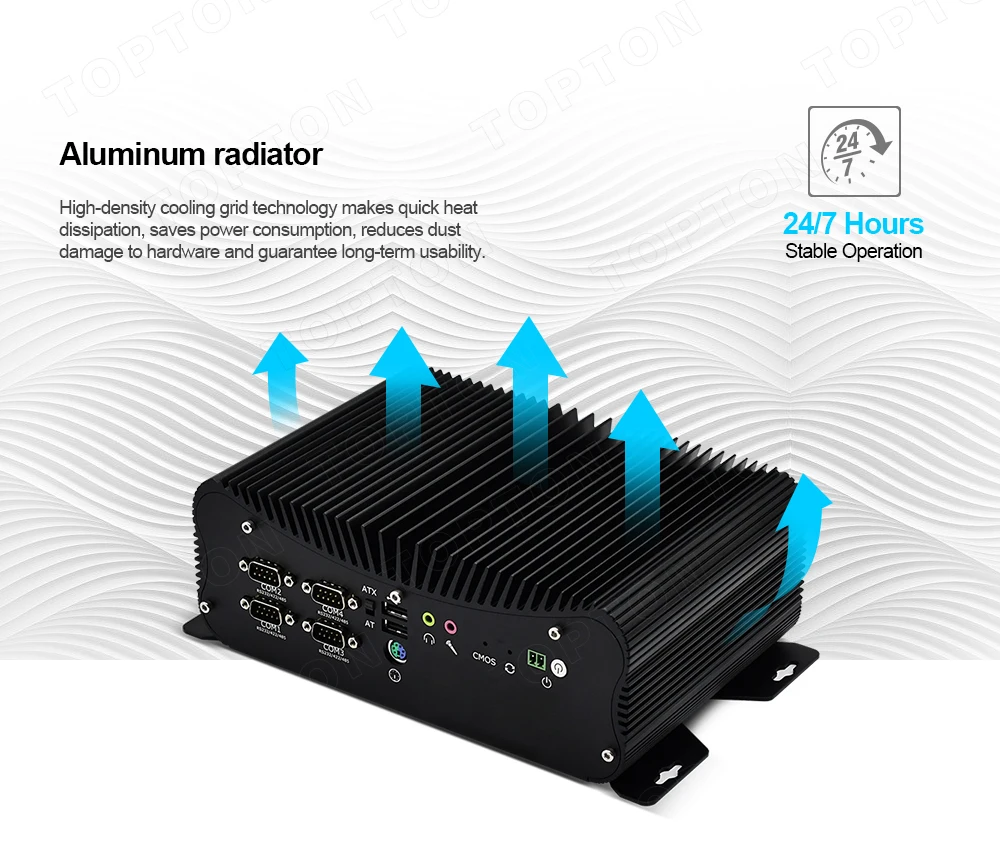

– Fanless system without cooling fan, no any noise, thicker and longer heat-sink fins for working as long as 7×24 hours durably.
– Brushed Full Aluminum Alloy Silver/Black color shell for heat dissipation, Exquisite production craft on outside design.

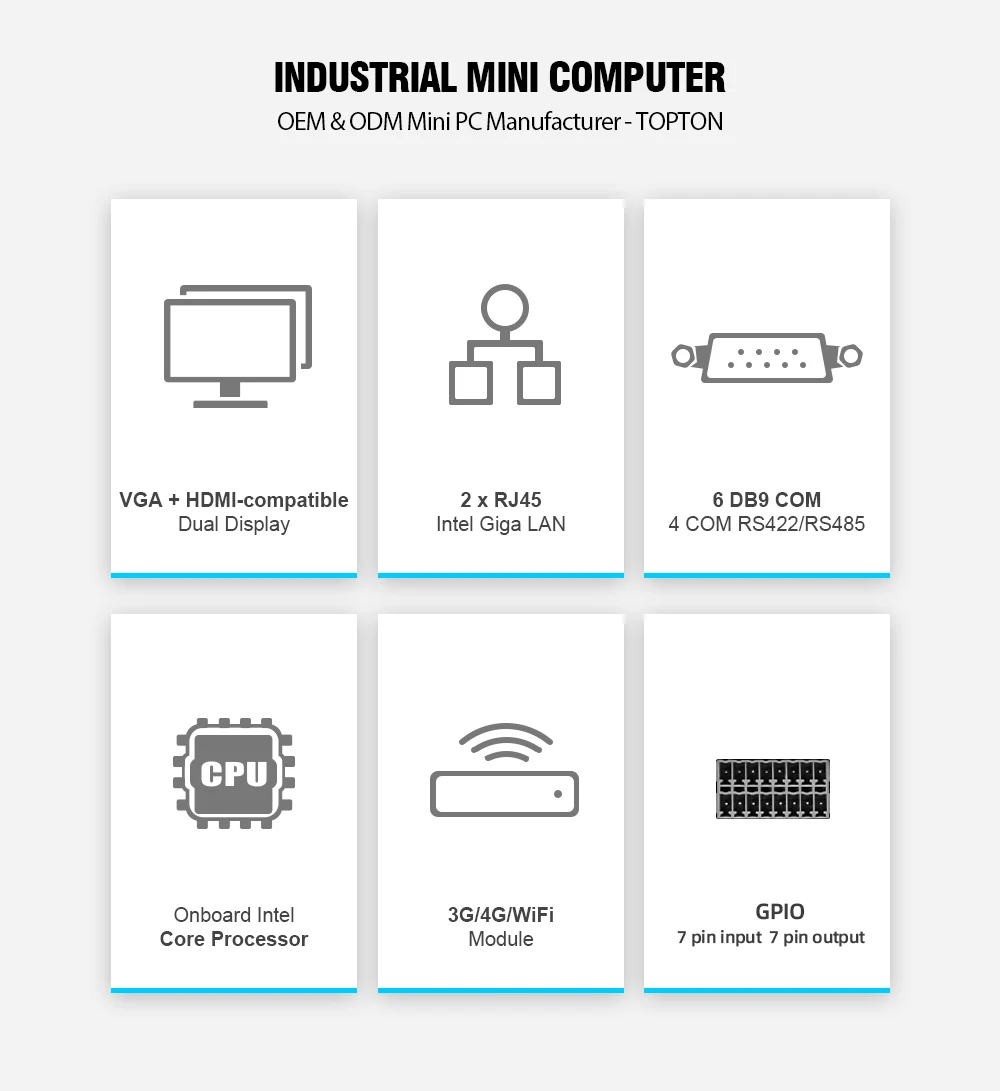

– 2xIntel i225-V B3 2.5G RJ45 LANs, 6xDB9 COM(4xRS232/422/485), 8xUSB(2xUSB inside), PS/2, GPIO etc rich ports for different equipments.
– 3xStorage: 1*MSATA SSD+1*M.2 SATA/NVME SSD+1*2.5''SATA installation together;
– Fit for 9-36V 3pin phoenix terminal power input, ATX/AT quick switch.

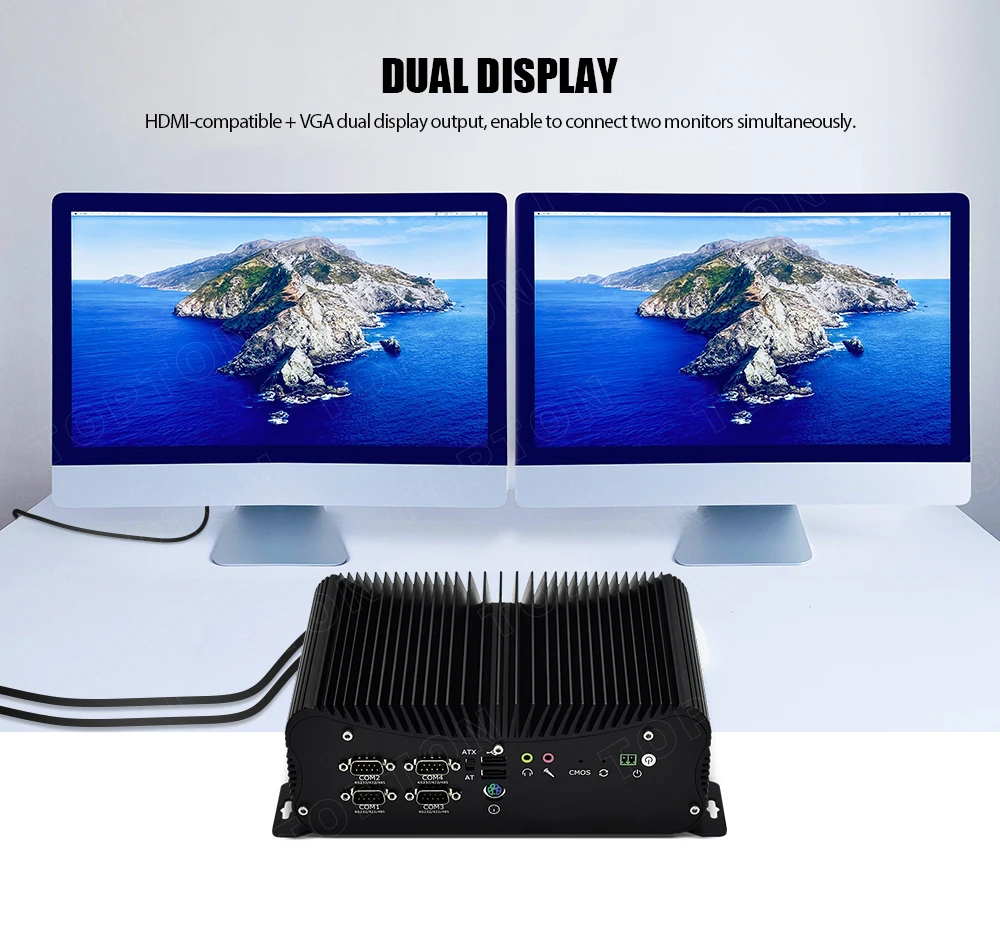

– Support VGA + HDMI dual display output synchronously.

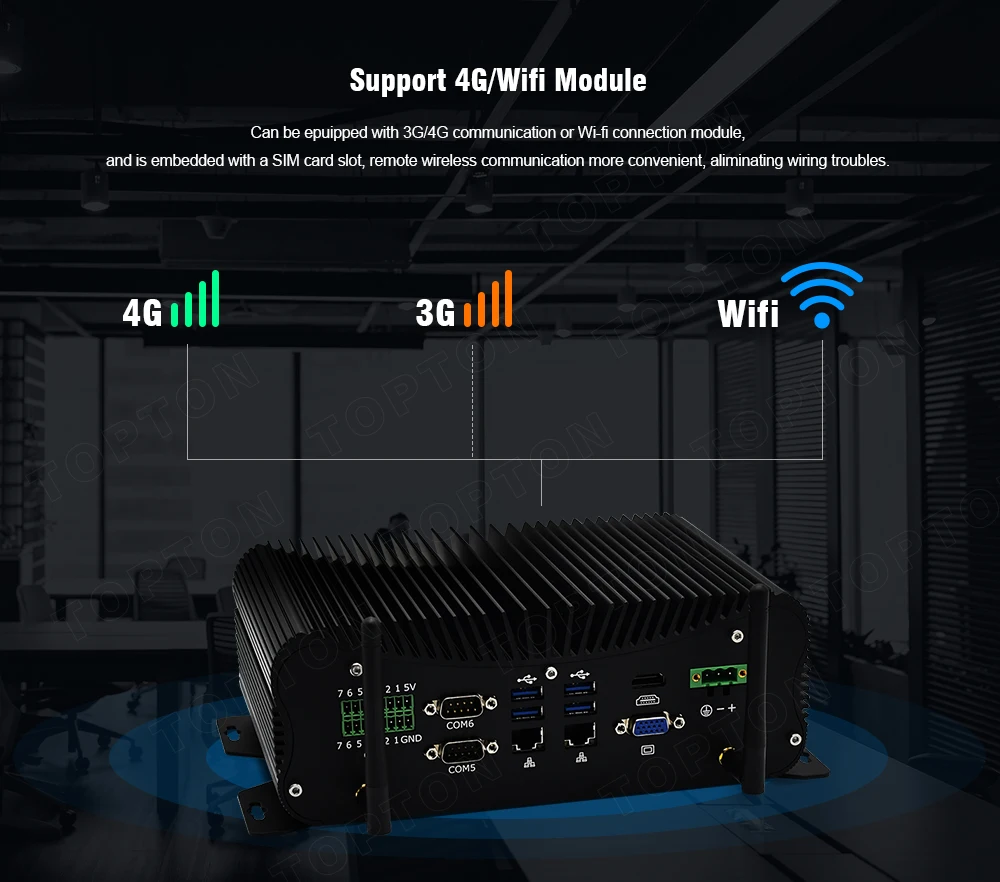

– One embedded SIM card slot onboard for 3G/4G Wi-Fi.

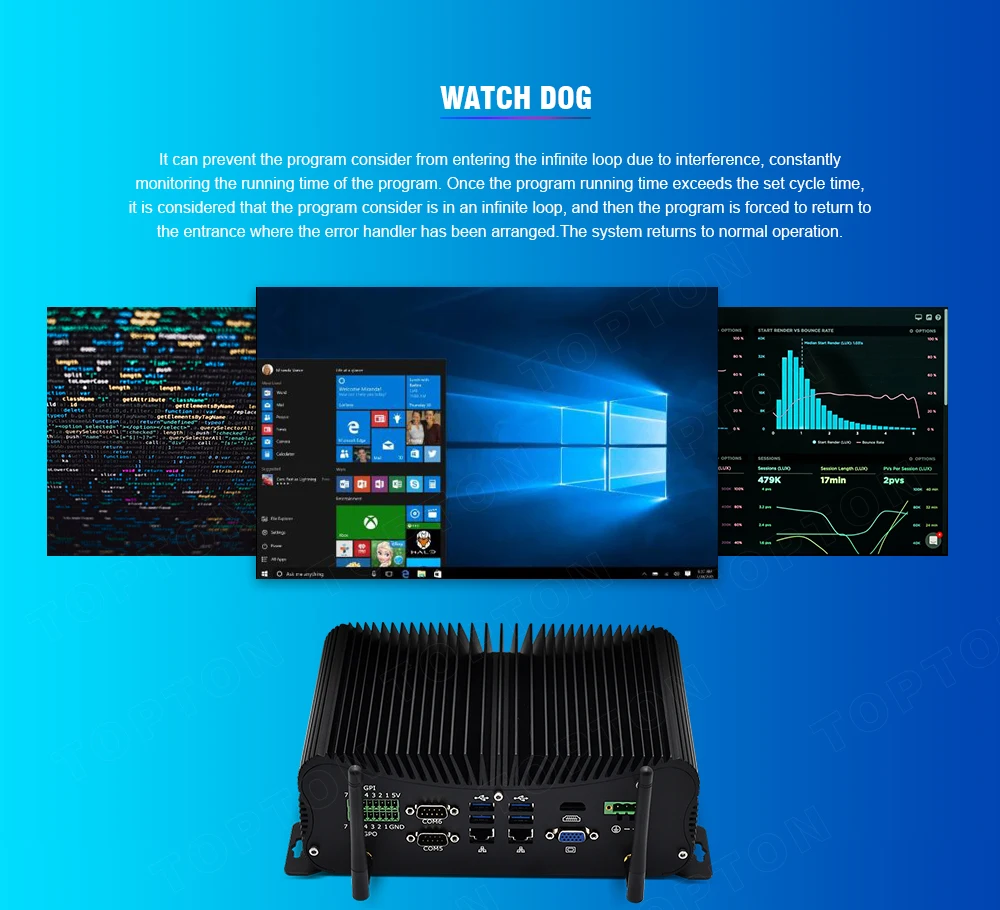

– Support Watchdog, AWAL, RTC, WOL(ATX mode), PXE, Reset functions.

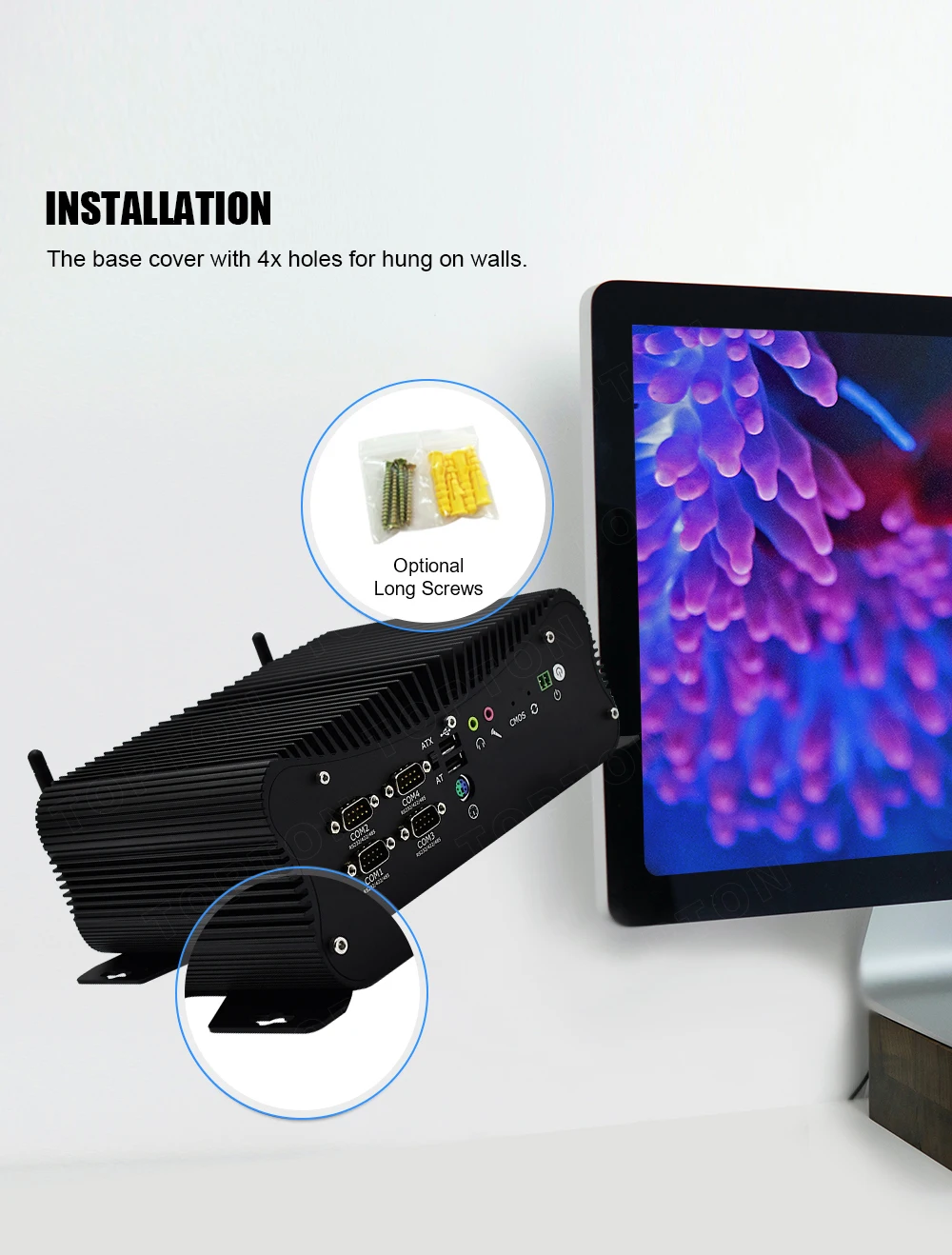

– Low consumption TDP only 15W and can be mounted on the wall.
