Product Highlight
– Optional Intel 8th/9th/10th gen H-series Core i5/i7 CPU
– 6 RS-232 serial ports (2 of which support RS485/RS442)
– 2xSODIMM DDR4 memory slot up to 32GB more powerful performance improve work efficiency and give you a smooth experience.
– Optional Intel 8th/9th/10th gen H-series Core i5/i7 CPU
– 6 RS-232 serial ports (2 of which support RS485/RS442)
– 2xSODIMM DDR4 memory slot up to 32GB more powerful performance improve work efficiency and give you a smooth experience.
– Support Dual graphics Intel Mini PC i7 UHD 630 ，Low power consumption without fan
– Support HDMI and DP for 4K display output synchronously.
– Support 1*M.2 NVME/SATA SSD 1xMSATA3.0 SSD 1×2.5”SATA3.0 SSD/HDD
– Support HDMI and DP for 4K display output synchronously.
– Support 1*M.2 NVME/SATA SSD 1xMSATA3.0 SSD 1×2.5”SATA3.0 SSD/HDD
Processors parameter for reference only
1. Core-i5 4200U (3M Cache, 2 core 4 threads, 1.60 GHz up to 2.60 GHz,Inte HD Graphics 4400)
2. Core-i5 5287U ( 3M Cache, 2 core 4 threads, 2.90 GHz, Inte HD Graphics 6100)
3. Core i5 7267U ( 4M Cache, 2 core 4 threads, 3.10 GHz up to 3.50 GHz, Inte Iris Plus Graphics 650 )
4. Core i7 7600U ( 4M Cache, 2 core 4 threads, 2.80 GHz up to 3.90 GHz, Inte HD Graphics 620 )
5. Core i5 8250U ( 6M Cache, 4 core 8 threads, 1.60 GHz up to 3.40 GHz, Inte UHD Graphics 620 )
6. Core i7 8550U ( 8M Cache, 4 core 8 threads, 1.80 GHz up to 4.00 GHz, Inte UHD Graphics 620 )
7. Core i5 10210U ( 6M Cache, 4 core 8 threads, 1.60 GHz up to 4.20 GHz, Inte UHD Graphics )
8. Core i7 10510U ( 8M Cache, 4 core 8 threads, 1.80 GHz up to 4.90 GHz, Inte UHD Graphics )
1. Core-i5 4200U (3M Cache, 2 core 4 threads, 1.60 GHz up to 2.60 GHz,Inte HD Graphics 4400)
2. Core-i5 5287U ( 3M Cache, 2 core 4 threads, 2.90 GHz, Inte HD Graphics 6100)
3. Core i5 7267U ( 4M Cache, 2 core 4 threads, 3.10 GHz up to 3.50 GHz, Inte Iris Plus Graphics 650 )
4. Core i7 7600U ( 4M Cache, 2 core 4 threads, 2.80 GHz up to 3.90 GHz, Inte HD Graphics 620 )
5. Core i5 8250U ( 6M Cache, 4 core 8 threads, 1.60 GHz up to 3.40 GHz, Inte UHD Graphics 620 )
6. Core i7 8550U ( 8M Cache, 4 core 8 threads, 1.80 GHz up to 4.00 GHz, Inte UHD Graphics 620 )
7. Core i5 10210U ( 6M Cache, 4 core 8 threads, 1.60 GHz up to 4.20 GHz, Inte UHD Graphics )
8. Core i7 10510U ( 8M Cache, 4 core 8 threads, 1.80 GHz up to 4.90 GHz, Inte UHD Graphics )
|
Processor
|
Optional Intel 8th/9th/10th gen H-series Core i5/i7 CPU
|
|
Graphics
|
Intel® UHD Graphics
|
|
Bios
|
AMI Bios
|
|
Operating Systerm
|
Windows® 10 ,WES 10, LINUX
|
|
Memory
|
2*DDR4 SODIMM, up to 32GB memory
|
|
Storage
|
1x MSATA
1x M.2 NVME 2280 1x HDD/SSD |
|
Network
|
2 x 2.5GbE RJ45 Intel i225V
|
|
Expansion slot
|
Mini-PCIe x 1 half card, support WIFI Bluetooth
Mini-PCIe x 1 full card (with SIM card holder), support 3G/4G module, WIFI Bluetooth |
|
I/O
|
1 x 3pin phoenix terminal,

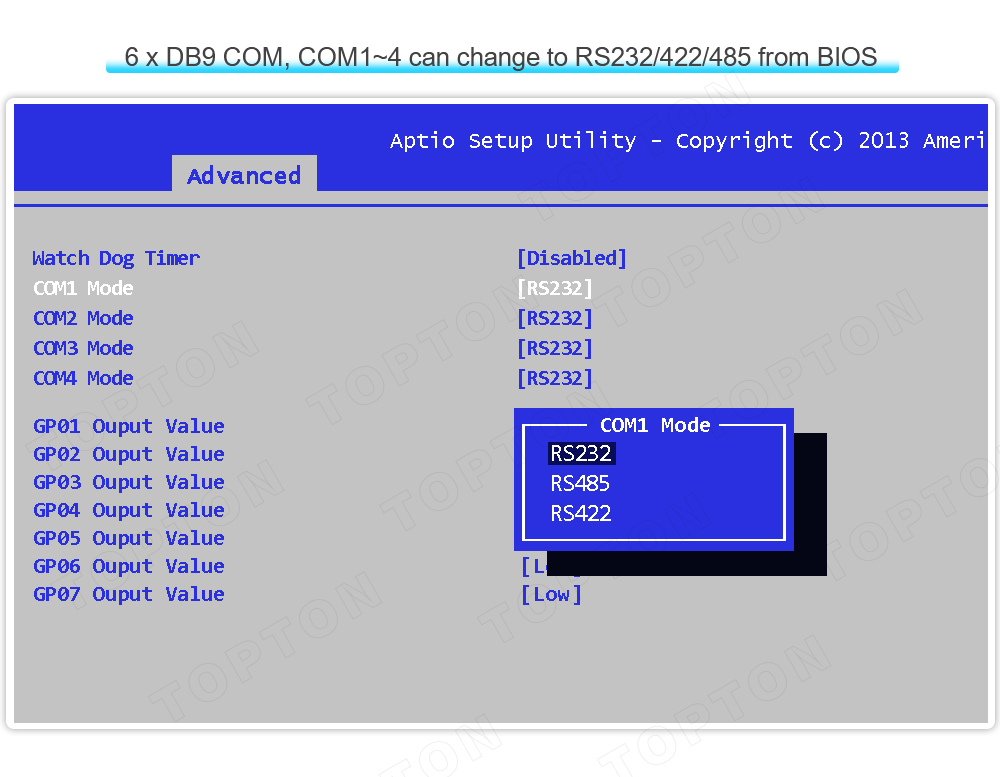

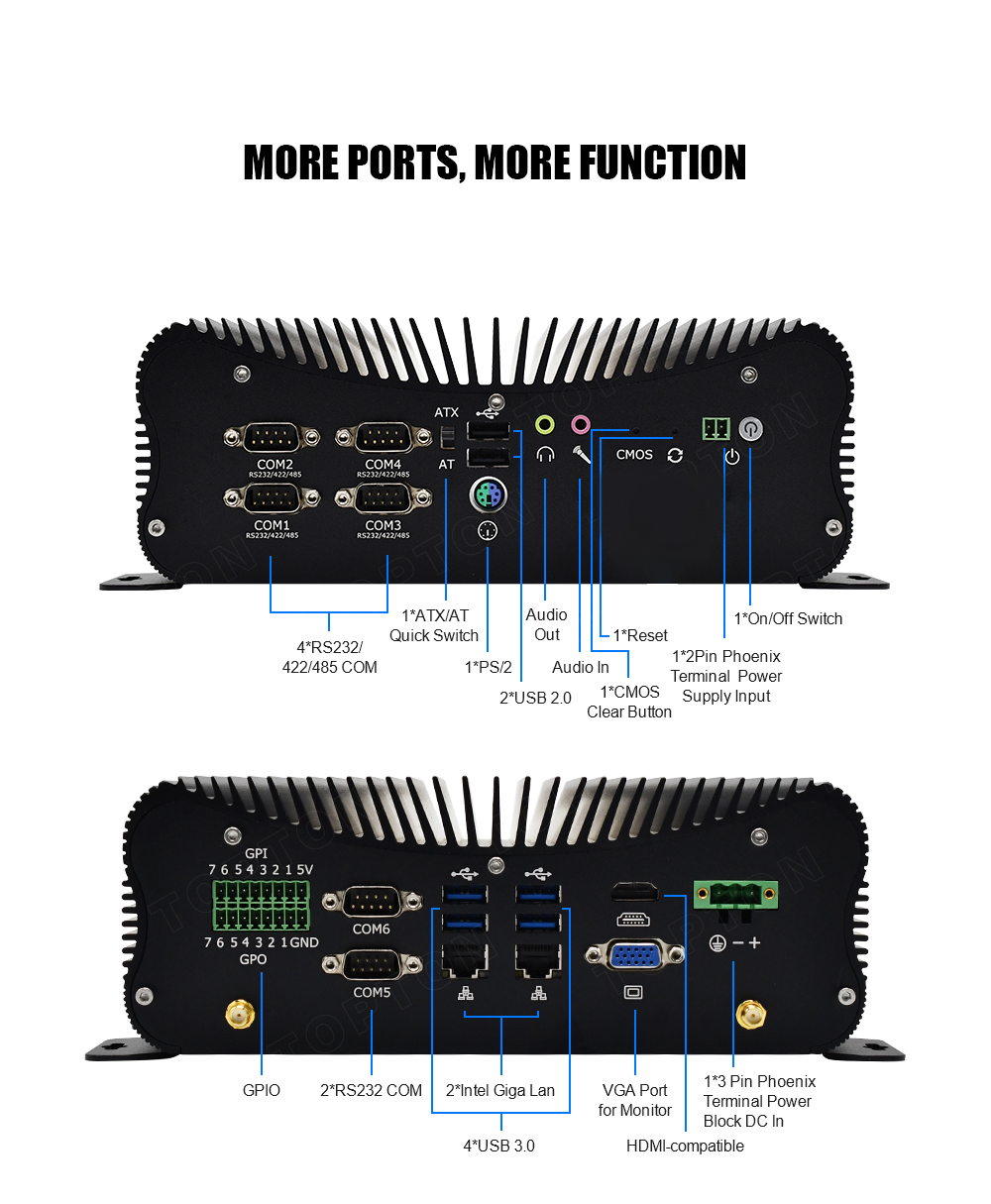

1 x ATX/AT, 4 x USB3.0, 4 x USB2.0(2xUSB2.0 inside), 1 x Reset, 1 x CMOS clear button, 1 x PS/2, 1 x VGA, 1 x HDMI, 2 x Intel LAN, 6 x COM Rs232(COM1-COM4 Rs232/422/485), 1 x SIM card slot, 1 x GPIO, 1 x 2Pin phoenix terminal power supply input(9-36V) |
|
MATERIAL
|

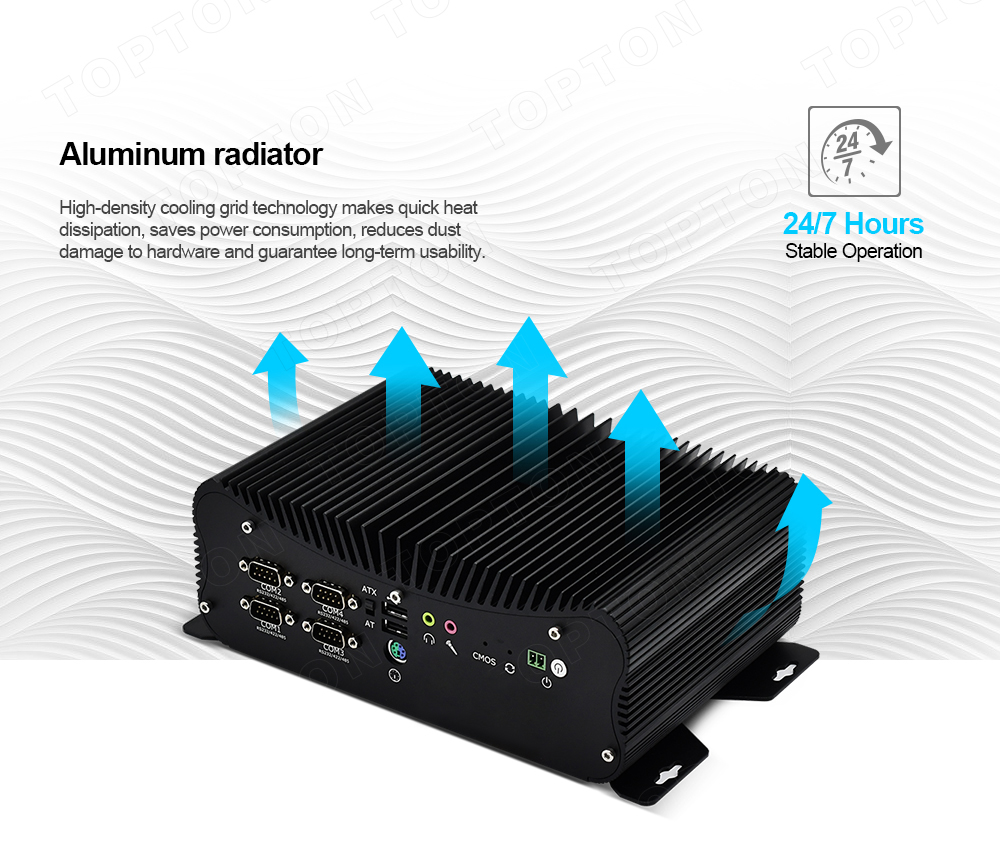

Aluminum alloy
|
|
Environment
|
Opertating temperature: -20℃ to +60℃
Opertating humidity: 10%~90% @30℃, no condensation |
|
Power
|
9-36V
|
|
Dimension
|
240 x 150 x 65 mm
|
|
Weight
|
2 kg
|
|
Certificate
|
CE, RoSH, FCC
|
|
Support
|

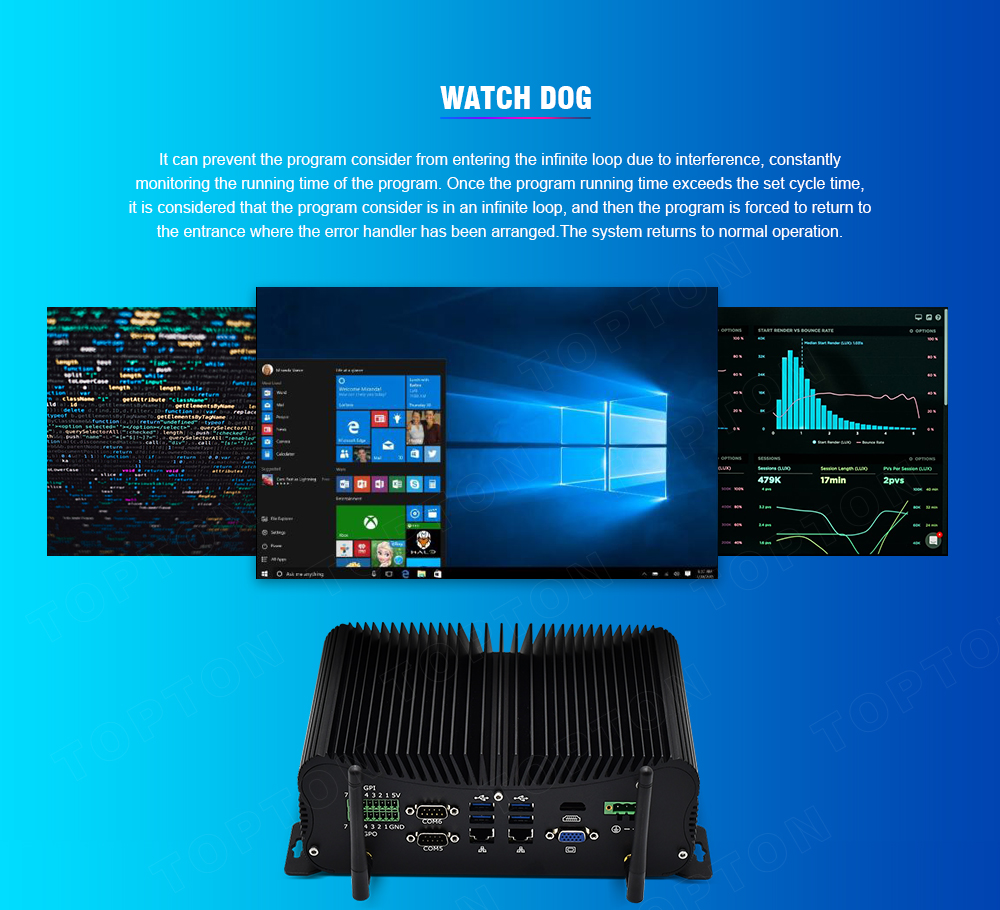

Support watchdog, one-key restore, diskless boot
|
Application area
What’s the mini computer can do?
1. Office work: Office, Skype, yahoo, outlook and all other office requirement support and runs perfect;
2. Design work: Photoshop, CoreIDRAW, Dreamweaver, IIIustrator, Flash, Indesign and others;
3. Game playing: Support most online games and PC games, like Warcraft, Counter-Strike (CS).
4. Entertainment: Support blu ray 1080P and 4k video play, XBMC and others.
1. Office work: Office, Skype, yahoo, outlook and all other office requirement support and runs perfect;
2. Design work: Photoshop, CoreIDRAW, Dreamweaver, IIIustrator, Flash, Indesign and others;
3. Game playing: Support most online games and PC games, like Warcraft, Counter-Strike (CS).
4. Entertainment: Support blu ray 1080P and 4k video play, XBMC and others.
