Name: Topton 13th Gen Fanless Mini PC Intel i5 1335U Windows 11
SKU: GM1 i5-1335U 32G DDR4 1TB PCIe4.0
Availability: InStock

Description

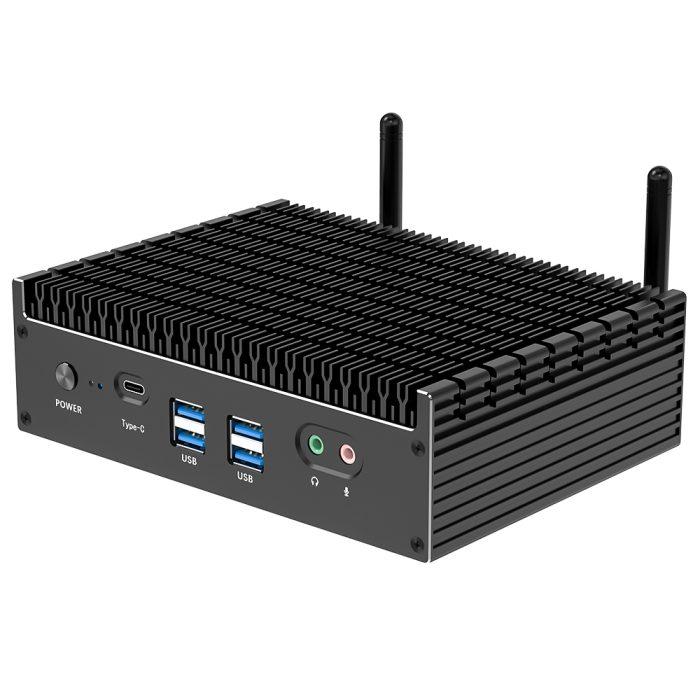

Topton 13th Gen Fanless Mini PC Intel i5 1335U

Windows 11 PCIE4.0 Dual 2.5G LAN Tunderbolt 4 Gaming Mini Computer WiFi6

Processor parameter for referance only

Processors	Cores & Threads	L3 Cache	Max Turbo Frequency	TDP	Graphics
Core i5-1235U	10 cores, 12 threads	12M	4.40 GHz	15W	Intel Iris Xe Graphics max 1.20GHz
Core i7-1255U	10 cores, 12 threads	12M	4.70 GHz	15W	Intel Iris Xe Graphics max 1.25GHz
Core i7-1265U	10 cores, 12 threads	12M	4.80 GHz	15W	Intel Iris Xe Graphics max 1.25GHz
Core i5-1335U	10 cores, 12 threads	12M	4.60 GHz	15W	Intel Iris Xe Graphics max 1.25GHz
Core i7-1355U	10 cores, 12 threads	12M	5.00 GHz	15W	Intel Iris Xe Graphics max 1.30GHz

Dimension:170mm(L)x126mm(W)x51mm(H)
CPU: Intel Core i5-1235U/i7-1255U/i7-1265U/i5-1335U/i7-1355U
GPU: Intel Iris Xe Graphics (request dual channel DDR4 memory)
Ram: 2 x SO-DIMM DDR4 slots, support 3200MHz
SSD: 1xM.2 2280 PCIE4.0x4(read speed: 5000-7000MB/S), 1xM.2 2280 PCIE3.0x4/SATA
HDD: Support 2.5inch 7mm HDD/SSD
WiFi: 802.11AX WiFi6 with Bluethooth5.2
RJ45: 2 x intel i225/i226 100/1000/2500M, can be configured as a host server or router
Front I/O: 4 x USB 3.2, 1 x Type-C thunderbolt 4(support eGPU, PD charge), 1 x Earphone, 1 x MIC, 1 x Switch
Rear I/O: 2 x USB 2.0, 2 x HDMI2.0, 1 x DP1.4, 2 x RJ45 LAN, 1 x DC-IN
OS: Windows 11 / Ubuntu etc
Power: 19V 4.74A

BIOS: AMI UEFI, support Auto power on, Wake on Lan, PXE, RTC etc

What’s in the package

1xMini PC

1xPower supply

1xPower cable

1xSATA cable

Additional information

Graphics Card Type	Integrated Card
Operating System	Windows 11, Ubuntu etc
Graphic Cards	Intel Iris Xe Graphics
Memory Type	2*DDR4 SO-DIMM slots, max 64GB
Wireless	802.11AX WiFi6 BT5.2
Processor Brand	Intel
Hard Drive Capacity	1TB
