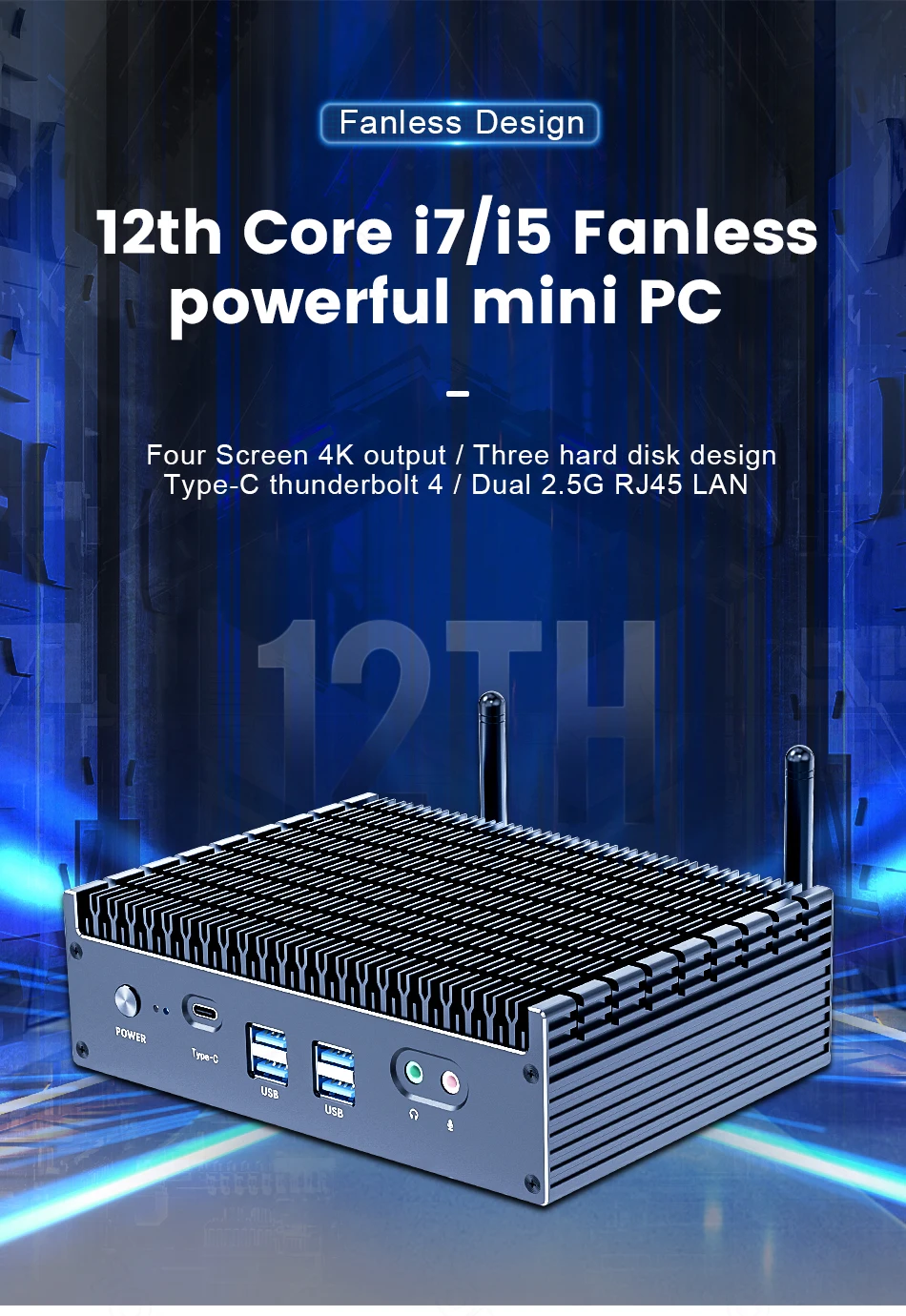

Name: 13th Gen Intel I7 1355U I5 1335U Fanless Mini PC 2*2.5G LAN PCIe4.0 DDR4 Thunderbolt 4 EGPU Desktop PC Gamer Mini Computer WiFi6
SKU: 1005010654065912
Availability: InStock

13th Gen Intel I7 1355U I5 1335U Fanless Mini PC 2*2.5G LAN PCIe4.0 DDR4 Thunderbolt 4 EGPU Desktop PC Gamer Mini Computer WiFi6

Description

High-concerned chemical: none
Use: Multimedia
Memory Capacity: ≥ 4GB
Hard Drive Capacity: ≥ 1.5TB
Model Number: GM1
Processor Brand: Intel
Processor Model: Core
Type: Mini Desktop
Graphics Card Type: Integrated Card
Brand Name: Topton
Origin: Mainland China
Type: Mini PC

Processor parameter for referance only

Processors	Cores & Threads	L3 Cache	Turbo Frequency	TDP	Graphics
Core i5-1235U	10 cores, 12 threads	12M	4.40 GHz	15W	Intel Iris Xe Graphics max 1.20GHz
Core i7-1255U	10 cores, 12 threads	12M	4.70 GHz	15W	Intel Iris Xe Graphics max 1.25GHz
Core i7-1265U	10 cores, 12 threads	12M	4.80 GHz	15W	Intel Iris Xe Graphics max 1.25GHz
Core i5-1335U	10 cores, 12 threads	12M	4.60 GHz	15W	Intel Iris Xe Graphics max 1.25GHz
Core i7-1355U	10 cores, 12 threads	12M	5.00 GHz	15W	Intel Iris Xe Graphics max 1.30GHz

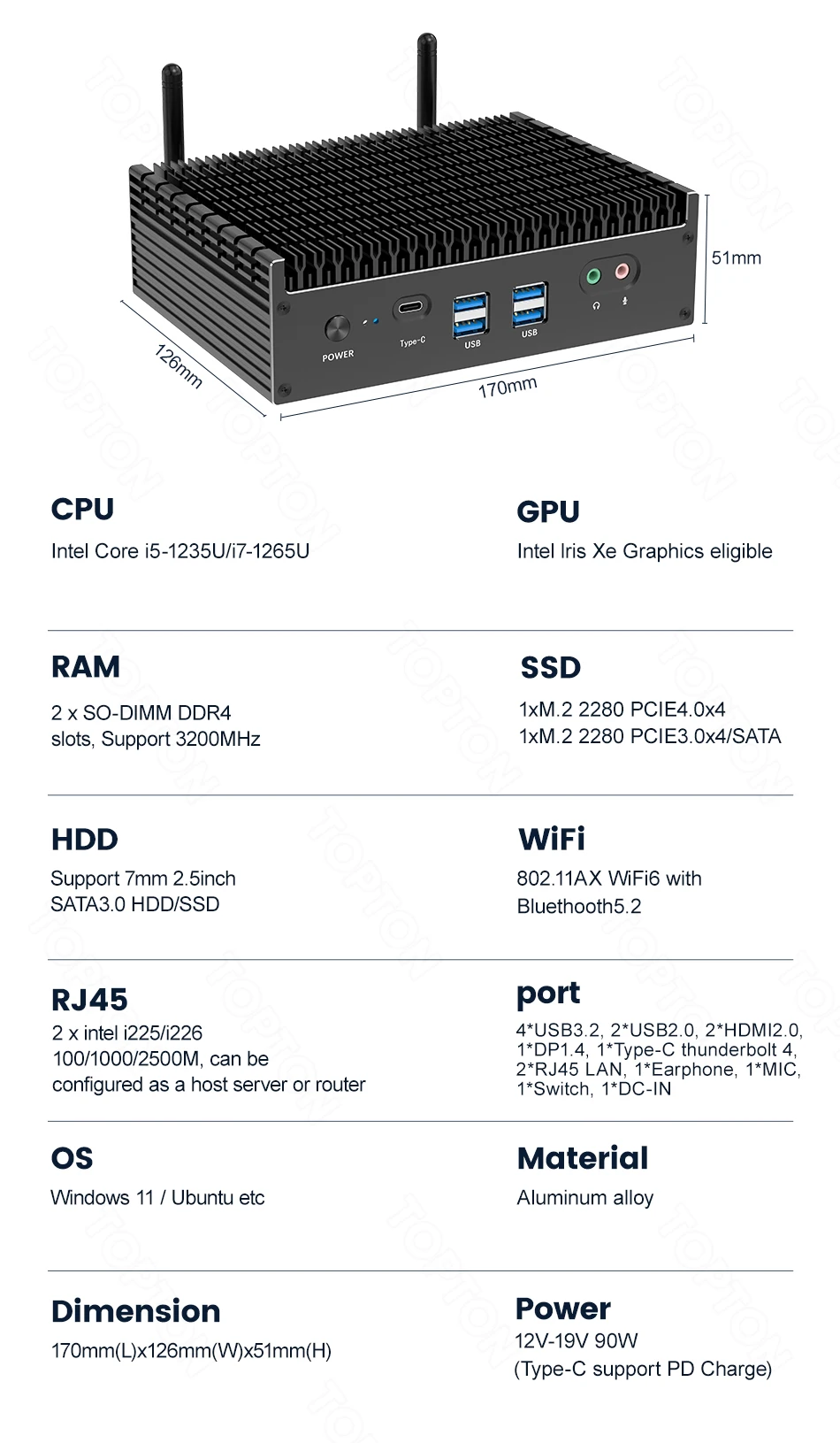

Dimension:170mm(L)x126mm(W)x51mm(H)
CPU: Intel Core i5-1235U 1245U/i7-1255U i7-1265U/i5-1335U 1345U/i7-1355U 1365U
GPU: Intel Iris Xe Graphics (request dual channel DDR4 memory)

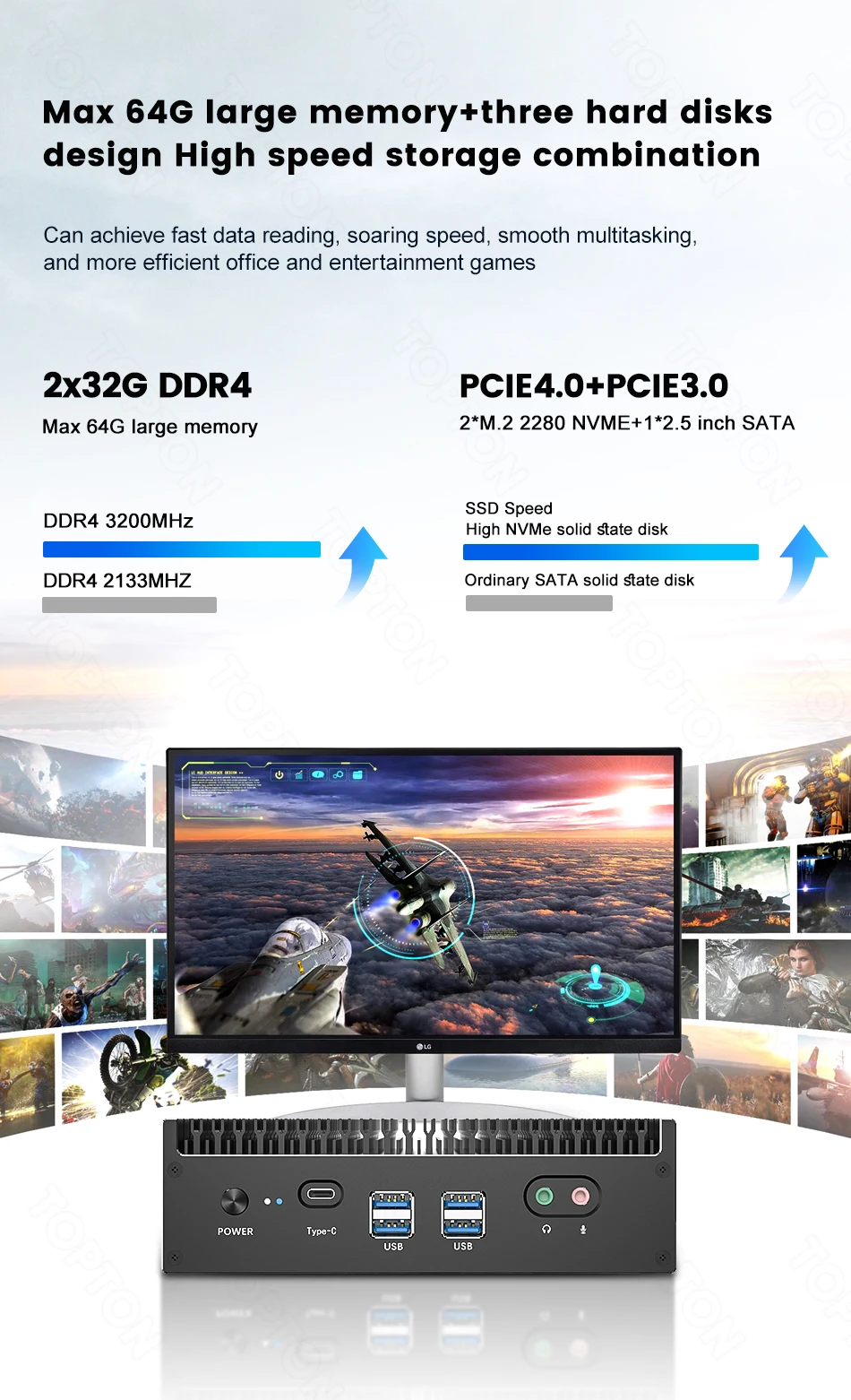

Ram: 2 x SO-DIMM DDR4 slots, support 3200MHz
SSD: 1xM.2 2280 PCIE4.0x4, 1xM.2 2280 PCIE3.0x4/SATA
HDD: Support 2.5inch 7mm HDD/SSD

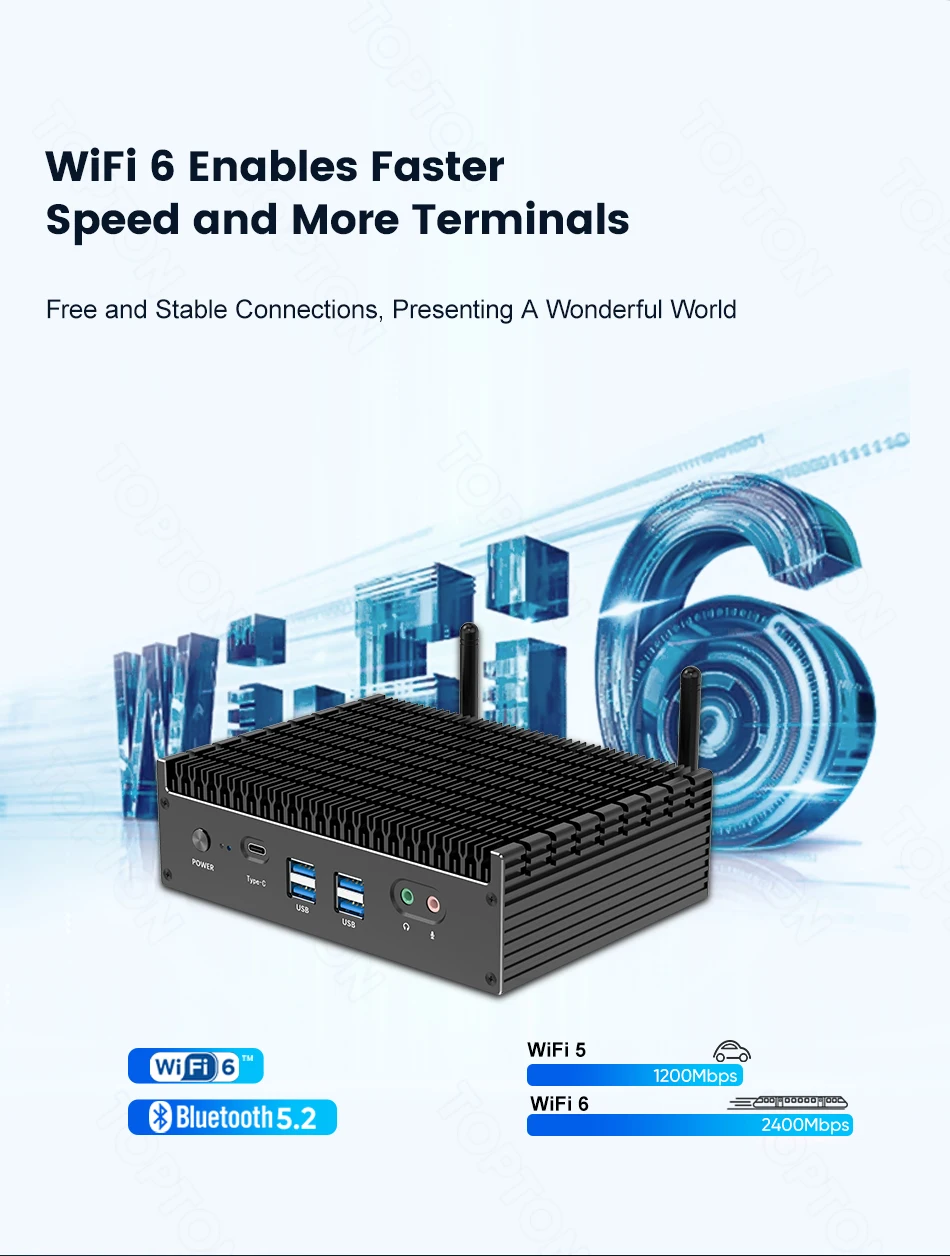

WiFi: 802.11AX WiFi6 with Bluethooth5.2
RJ45: 2 x intel i225/i226 100/1000/2500M, can be configured as a host server or router

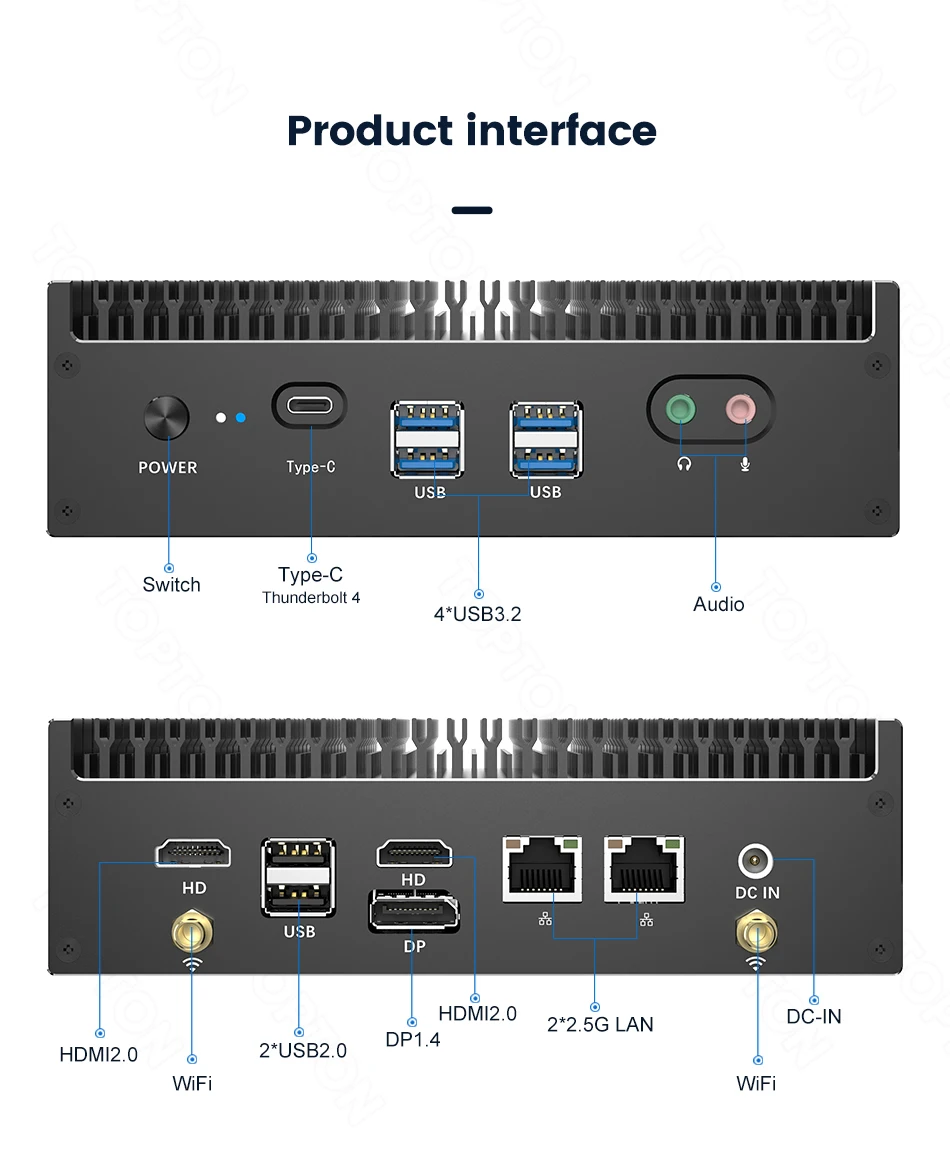

Front I/O: 4 x USB 3.2, 1 x Type-C thunderbolt 4(support eGPU, PD charge), 1 x Earphone, 1 x MIC, 1 x Switch
Rear I/O: 2 x USB 2.0, 2 x HDMI2.0, 1 x DP1.4, 2 x RJ45 LAN, 1 x DC-IN
OS: Windows 11 / Ubuntu etc
BIOS: AMI UEFI, support Auto power on, Wake on Lan, PXE, RTC etc

What's in the package

1xMini PC

1xPower supply

1xPower cable(EU/US/UK/AU plug based on buyer's country)

1xSATA cable
