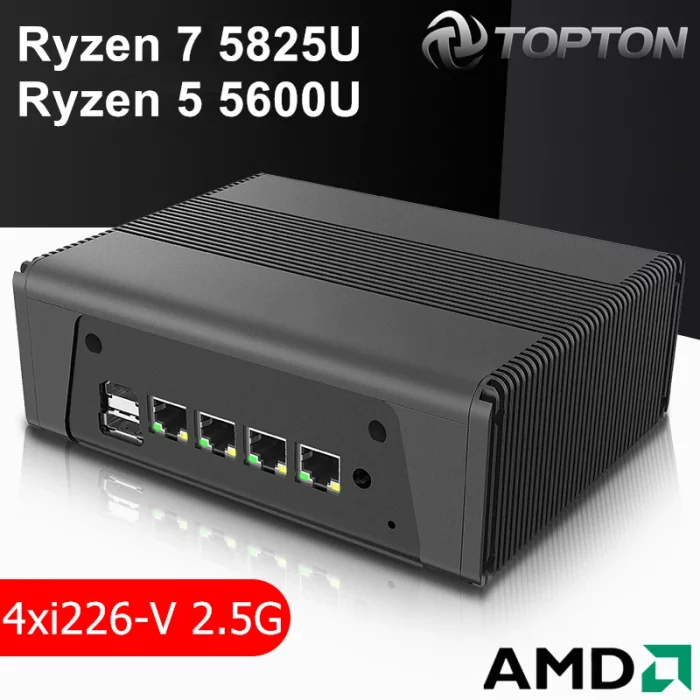

Name: Topton X4F AMD Soft Router Ryzen 7 5825U 5800U 4x Intel i226-V 2.5G NAS Server Firewall Appliance Mini PC 3*NVMe 2*SATA 3x4K UHD
SKU: 1005004782830529
Availability: InStock

Description

Processor Main Frequency: Depends on CPU
Use: Commercial
Memory Capacity: ≥ 4GB
Hard Drive Capacity: 1TB
Model Number: X4F
Processor Brand: AMD
Processor Model: Ryzen
Type: Mini Desktop
Graphics Card Type: Integrated Card
Brand Name: Topton
Origin: Mainland China
Certification: CE,FCC,RoHS
Type: MINI PC

Processor parameter for referance only

Processors	Cores & Threads	L3 Cache	Base Frequency	Max Turbo Frequency	TDP	Graphics
Ryzen 5 5500U	6 cores, 12 threads	8M	2.10 GHz	4.00 GHz	15W	AMD Radeon Graphics 7 Core 1800MHz
Ryzen 5 5600U	6 cores, 12 threads	16M	2.30 GHz	4.20 GHz	15W	AMD Radeon Graphics 7 Core 1800MHz
Ryzen 7 5800U	8 cores, 16 threads	16M	1.90 GHz	4.40 GHz	15W	AMD Radeon Graphics 8 Core 2000MHz
Ryzen 7 5825U	8 cores, 16 threads	16M	2.00 GHz	4.50 GHz	15W	AMD Radeon Graphics 8 Core 2000MHz

Product Highlight

-4xIntel i226-V 2.5G UDE filter pure RJ45 LANs, 2xUSB3.1, 2xUSB2.0, 1xUSB Type-C, 1xTF card slot.

-2xDDR4 SODIMM non-ecc ram slot, support 3200MHz.

-Motherboard support five storage theoretically: 2xM.2 NVMe/PCIe3.0x4 2280 SSD(via M.2 2232 to 2280 PCB adapter board)+1xM.2 NVMe/PCIe3.0x4 SSD(a M.2 interface on the motherboard of CPU's side)+1×2.5''SATA3.0 SSD/HDD(internal mounting, but covered by 8010 FAN)+1×2.5''SATA3.0 SSD/HDD(external from knock-out hole).
-1xM.2 KEY-E 2232 slot, support WiFi connection, also support transfer to 1xM.2 NVMe/PCIe3.0x4 2280 SSD with PCB adapter board.

-Full-featured Type-C support data, display, reverse charging.

-TF card slot support storage and system disk boot.

-Support three display: 1xHDMI2.0, 1xDP1.4, 1xType-C, 3x4K@60Hz UHD video display.

-Support wide voltage 12-19V input.

-Support TPM2.0, ESXI, PVE, Watchdog, Auto power on, RTC, PXE boot, Wake-on-LAN etc.

-Full Aluminum Alloy high quality solid-built shell, excellent cooling performance, Exquisite production craft on outside design.
-Turbo silent fan with dual copper tube, durability for industrial grade field, work as long as 7×24 hours.

Package List

1xMini PC

1xPower Adapter

1xPower Cord

1xM.2 2232 to 2280 PCB adapter board

1xSATA Cable
1xScrews Bag

1xinternal 8010 Fan (store gift, dual fan reduce temperature greatly)

Reviews (0)

Reviews

There are no reviews yet.

Be the first to review “Topton X4F AMD Soft Router Ryzen 7 5825U 5800U 4x Intel i226-V 2.5G NAS Server Firewall Appliance Mini PC 3*NVMe 2*SATA 3x4K UHD”

You must be logged in to post a review.

Shipping & Delivery

Q1. Can you provlde OEM/ODM service? How much do l need to pay for your OEM service?Re. Yes we can. The charges for OEl service depends on the different level of customize. the process of customization isfollowing.1) provide your specific requirement.2)our desiqn engineer draw the design draft3)you confirm the design draft.4) we start produce it.
Q2. Can you print my logo on the minl computer ?
Re. Yes, it is support . And we could print your logo on the pc for free !Pls contact me for logo printing ,)
Q3. What Is the Minimum Order Quantity (MOQ)?
Re: We can sell one piece sample for your test
Q4. What ls the lead tlme of your products?Re. Sample order within 3-7 business days . Bulk order within 3~15 business days ( depends on order gty) ,we will test themodel to insure the quality before shipping.
Q5. How wlll you dellver my goods to me?
Re. We shin by alr generally, in the meantime, we cooperate with intemnational expresses such as DHl. UpS, FedEx. andTNT tO enable our customers to get their goods rapidly.
