- Hign-concerned Chemical: None
- Processor Main Frequency: Depends on CPU
- Use: Commercial
- Memory Capacity: ≥ 4GB
- Hard Drive Capacity: 1TB
- Model Number: X6C
- Processor Brand: Intel
- Processor Model: Core
- Type: Mini Desktop
- Graphics Card Type: Integrated Card
- Brand Name: Topton
- Origin: Mainland China
- Certification: CE,FCC,RoHS
- Type: MINI PC
|
Processors |
Cores & Threads |
L3 Cache |
Max Turbo Frequency |
TDP |
Graphics |
|
Core i5-1235U |
10 cores, 12 threads |
12M |
4.40 GHz |
15W |
Intel Iris Xe Graphics max 1.20GHz |
|
Core i3-1315U |
6 cores, 8 threads |
10M |
4.50 GHz |
15W |
Intel UHD Graphics max 1.25GHz |
|
Core i5-1335U |
10 cores, 12 threads |
12M |
4.60 GHz |
15W |
Intel Iris Xe Graphics max 1.25GHz |
|
Core i7-1355U |
10 cores, 12 threads |
12M |
5.00 GHz |
15W |
Intel Iris Xe Graphics max 1.30GHz |
-6xIntel i226-V 2.5G RJ45 LANs, 2xUSB3.2, 3xUSB2.0, 1xType-C USB4.0, 1xTF card slot.
-2xDDR5 SODIMM non-ecc ram slots, support 4800MHz.
-Support 5 storages: 1xM.2 2280 NVMe/PCIe4.0x4 SSD+1xM.2 2280 NVMe/PCIe3.0x4 SSD+2xSATA3.0+1xTF card.
-Type-C USB4.0 supports 40Gbps data, 8K display, PD charge(19V 65W at least).
-1xM.2 2230 slot, supports WiFi6&Bluetooth connection(optional to buy).
-TF card slot supports storage and partial system boot.
-1xHDMI2.0, 1xDP1.4, 1xType-C, support 3x4K@60Hz UHD video display.
-Support TPM2.0, AES-NI, ESXI, PVE, Watchdog, Auto power on, RTC, PXE boot, Wake-on-LAN etc.

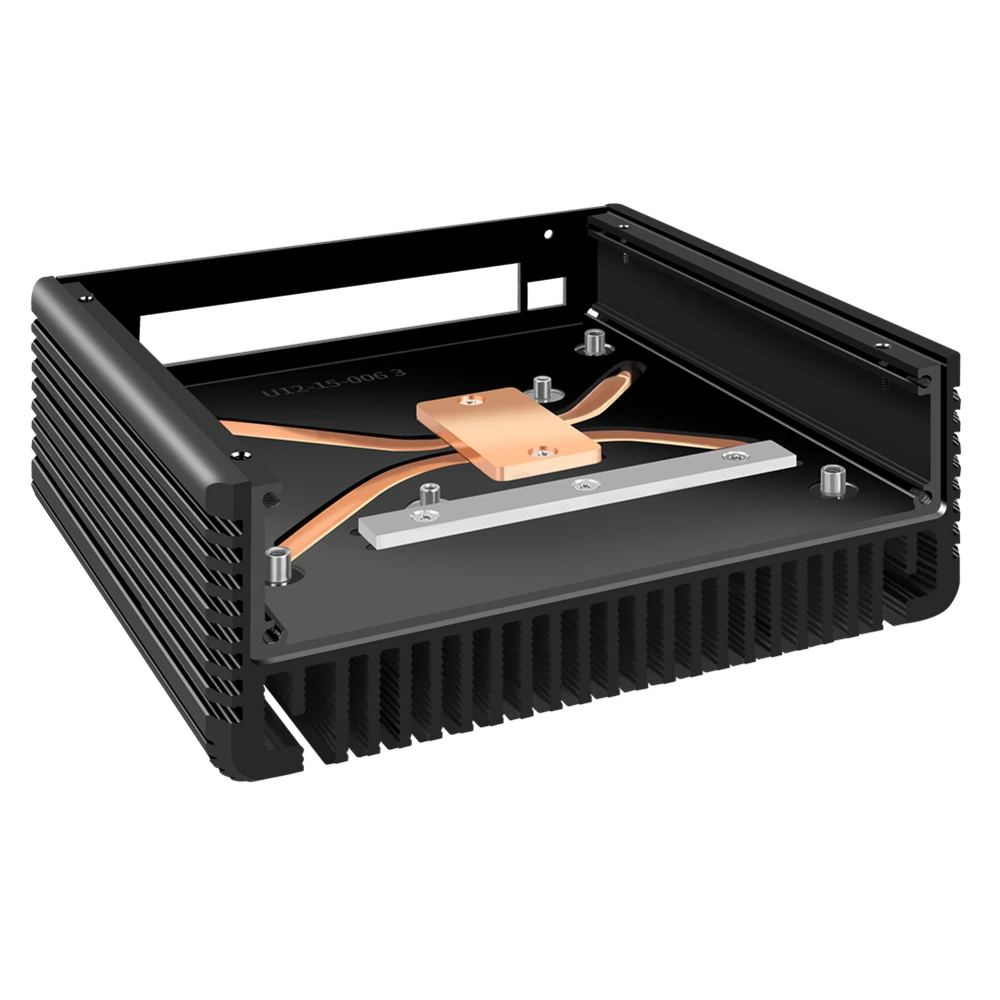

-Innovative fanless design: Solid aluminum case with built-in dual copper tubes and longer tooth-fins gets much more efficient heat dissipation. Fanless design is noiseless and dustproof. A gift 8010 fan can be assembled inside case to achieve better cooling performance if you worry overheat. Fan sound is low.

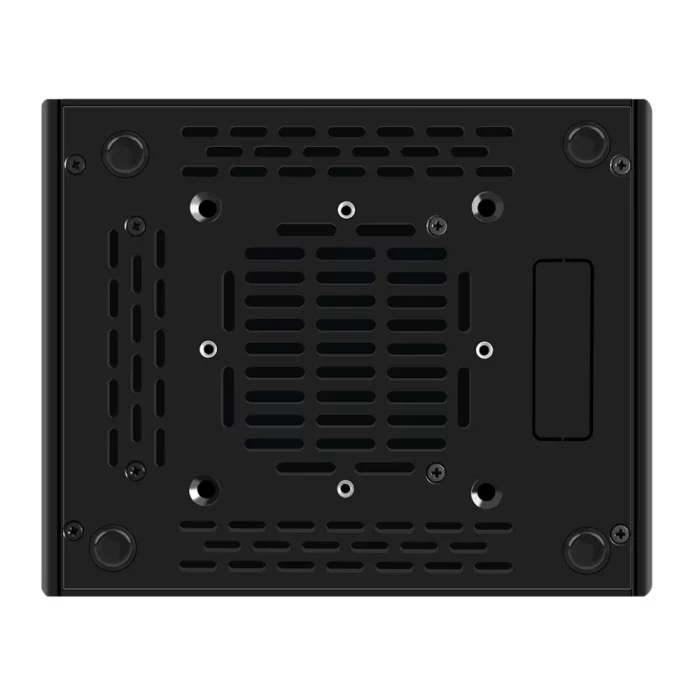

-Low consumption TDP 15W and can be mounted back of monitor by VESA bracket(optional).
Package List
1xMini PC
1xPower Adapter
1xPower Cord
1xSATA Cable
1×8010 fan(gift)
Welcome to click the picture of VESA Bracket to order together if you need:
