Name: Topton 10x1GbE LAN 1U 9.5 Inch Rack Mount Firewall Appliance Mini PC Intel Core i7 10510U i3 8145U Routing System Home Server
SKU: 1005010531243022
Availability: InStock

Topton 10x1GbE LAN 1U 9.5 Inch Rack Mount Firewall Appliance Mini PC Intel Core i7 10510U i3 8145U Routing System Home Server

Description

Battery Included: no
High-concerned chemical: none
Model Number: 1U-9.5-10L
Type: Embedded Computer
Brand Name: Topton
Origin: Mainland China

Please choose CPU Ram Rom from Size Bundle carefully.

Processor parameter for referance only

Processors	Cores & Threads	Cache	Base Frequency	Turbo Frequency	TDP
Intel Core i3-8145U	2 cores, 4 threads	4M	2.1GHz	3.9GHz	15W
Intel Core i7-10510U	4 cores, 8 threads	8M	1.8GHz	4.9GHz	15W

Product Highlight

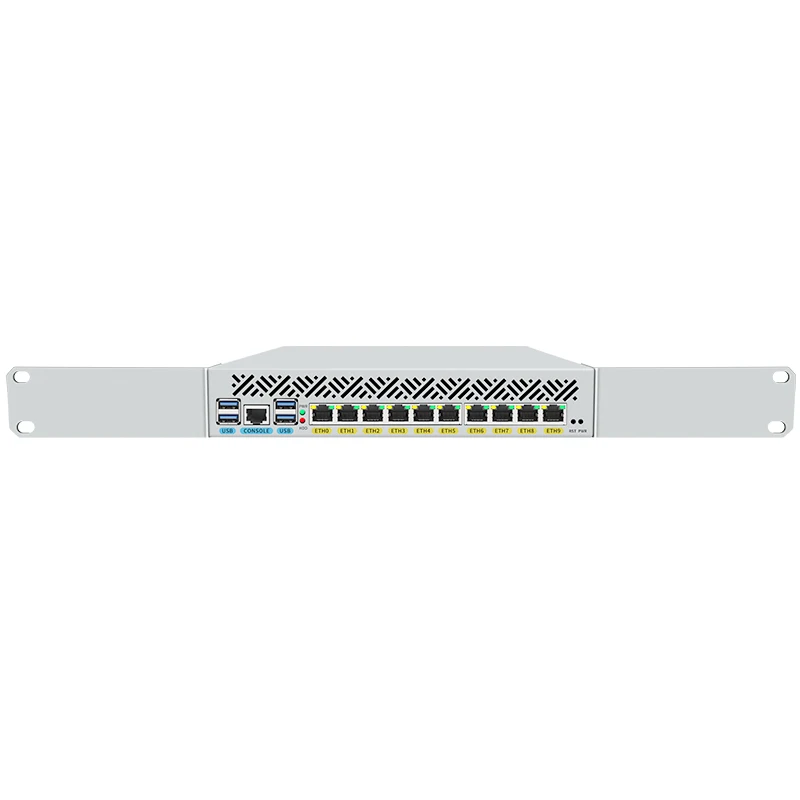

-9.5 inch solid metal body, compact and portable, support 1U rack-mounted with 2 hangers.

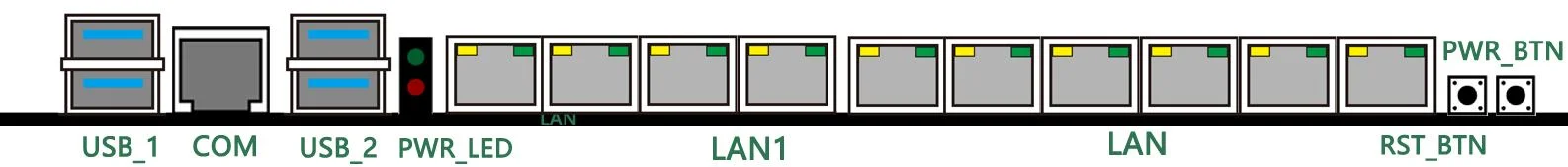

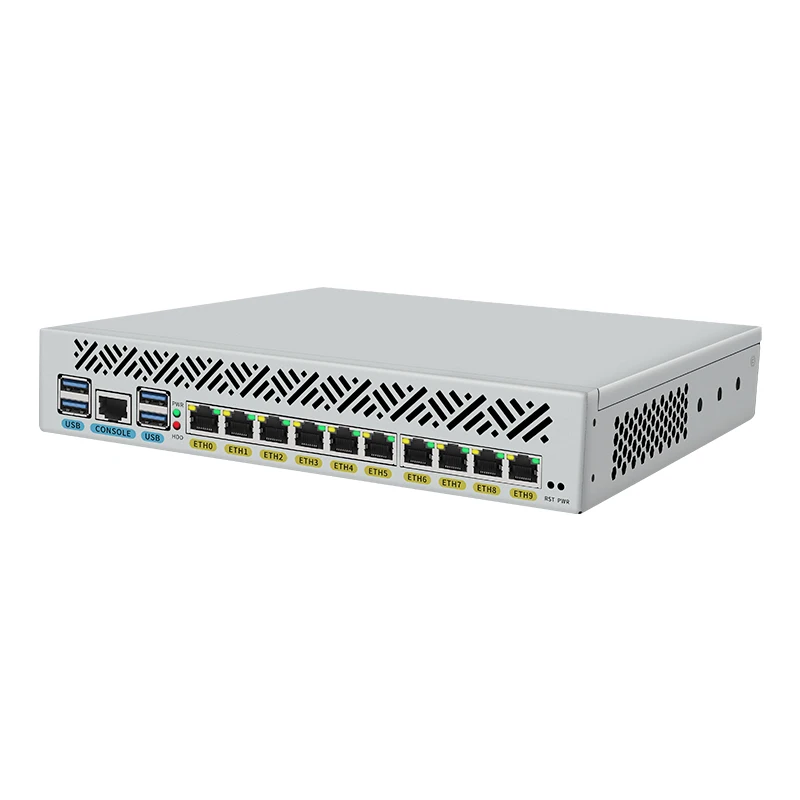

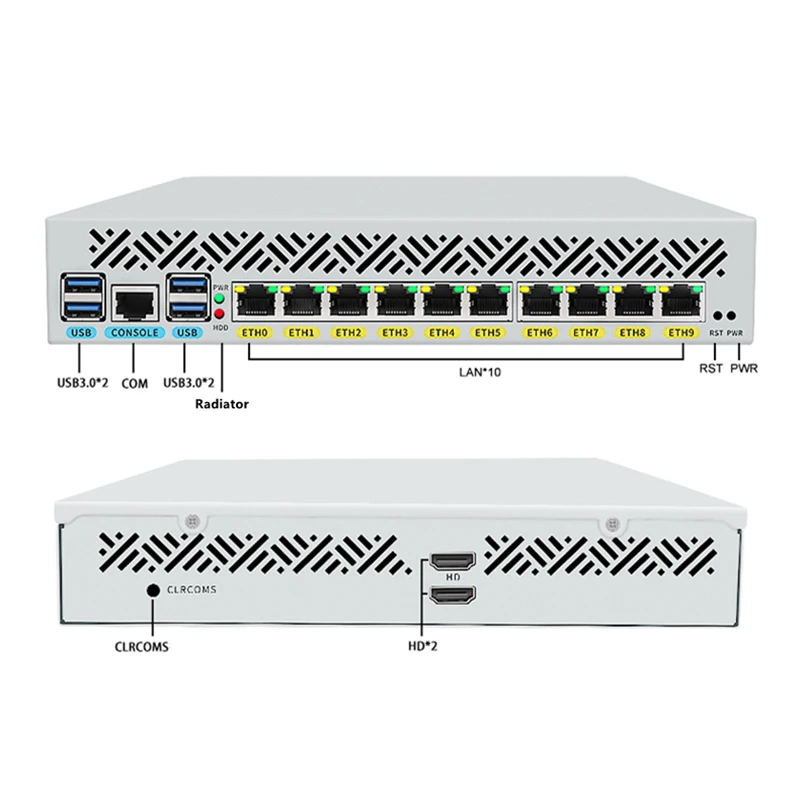

-10xIntel i210 1GbE RJ45 LANs, 1xRJ45 COM console, 4xUSB3.0.

-2xDDR4 SODIMM non-ECC laptop ram slots, support max 64GB 2133/2400MHz.

-Support 1xMSATA SSD+1xSATA3.0.

-1xMini PCIE slot, 1xSIM card slot, support 4G LTE wireless connection(USB signal, optional).

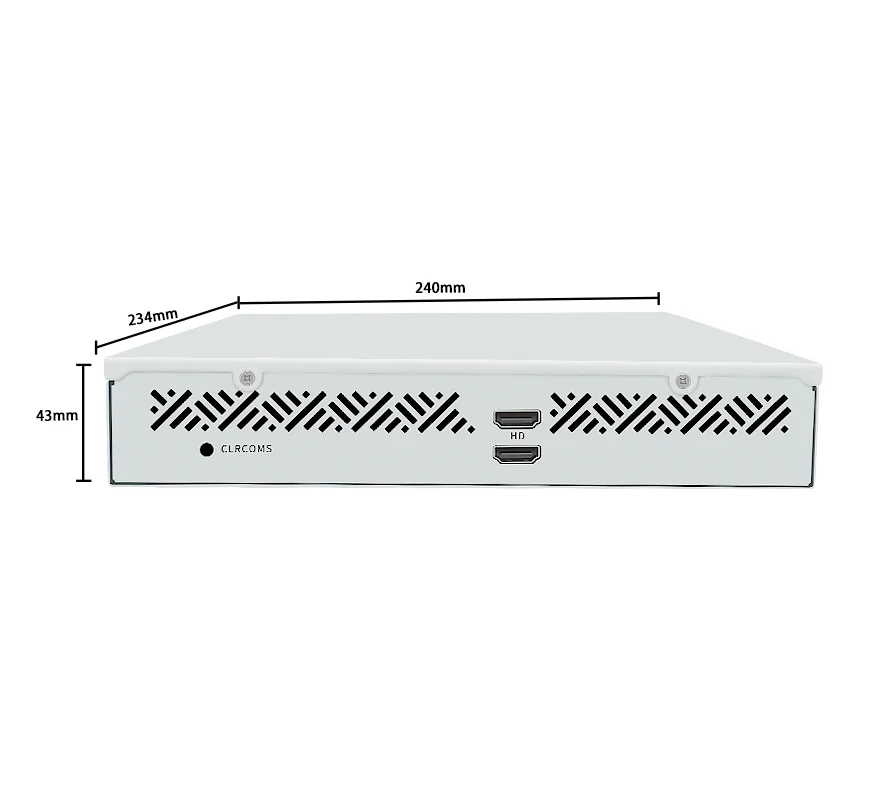

-2xHDMI dual video display.

-Support AMI EFI BIOS, AES-NI, ESXI, PVE, Watchdog, Auto power on, RTC, PXE boot, Wake-on-LAN etc.

Reviews (0)

Reviews

There are no reviews yet.

Be the first to review “Topton 10x1GbE LAN 1U 9.5 Inch Rack Mount Firewall Appliance Mini PC Intel Core i7 10510U i3 8145U Routing System Home Server”

You must be logged in to post a review.

Shipping & Delivery

Q1. Can you provlde OEM/ODM service? How much do l need to pay for your OEM service?Re. Yes we can. The charges for OEl service depends on the different level of customize. the process of customization isfollowing.1) provide your specific requirement.2)our desiqn engineer draw the design draft3)you confirm the design draft.4) we start produce it.
Q2. Can you print my logo on the minl computer ?
Re. Yes, it is support . And we could print your logo on the pc for free !Pls contact me for logo printing ,)
Q3. What Is the Minimum Order Quantity (MOQ)?
Re: We can sell one piece sample for your test
Q4. What ls the lead tlme of your products?Re. Sample order within 3-7 business days . Bulk order within 3~15 business days ( depends on order gty) ,we will test themodel to insure the quality before shipping.
Q5. How wlll you dellver my goods to me?
Re. We shin by alr generally, in the meantime, we cooperate with intemnational expresses such as DHl. UpS, FedEx. andTNT tO enable our customers to get their goods rapidly.
