- High-concerned chemical: none
- Use: Household
- Memory Capacity: ≤ 128MB
- Hard Drive Capacity: ≤ 40 GB
- Model Number: X6A/X6AF
- Processor Brand: Intel
- Processor Model: i3-N300/100U
- Type: Mini Desktop
- Graphics Card Type: Integrated Card
- Brand Name: Topton
- Origin: Mainland China
- Type: Mini PC
Processor parameter for referance only
|
Processors |
Cores & Threads |
Cache |
Max Turbo Frequency |
TDP |
Graphics |
|
Core 3 100U |
6 cores, 8 threads |
10M |
4.70 GHz |
15W |
Intel Graphics 64EUS |
|
Intel Core i3-N300 |
8 cores, 8 threads |
6M |
3.80 GHz |
7W |
Intel UHD Graphics 32EUS |
Product Highlight:
Intel Core i3-N300/N100 model:
-1xDDR5 SODIMM ram slot, support max 16GB 4800MHz.
-6xIntel i226-V 2.5G RJ45 LANs, 4xUSB2.0, 1xRJ45 COM console.
-Support three storage: 2xM.2 2280 NVMe/PCIE3.0x1 SSD(one on each side of motherboard)+1×2.5''SATA3.0 7mm SSD/HDD.
-1xSIM slot, 1xMPCIE slot, support WiFi/4G(2 choose 1) connection.
Intel Core 3 100U model:
-2xDDR5 SODIMM ram slots, support max 64GB 4800MHz.
-6xIntel i226-V 2.5G RJ45 LANs, 4xUSB3.0, 1xRJ45 COM console.
-Support two storage: 1xM.2 2280 NVMe/PCIEx4 SSD+1x7mm 2.5'' SATA SSD/HDD.
-1xSIM slot, 1xM.2 2230 WiFi slot(CNVI/PCIE signal), 1xMPCIE slot, support WiFi/4G(2 choose 1) connection.
-1xHDMI2.0 and 1xDP1.4 support dual 4K@60Hz UHD video display.
-Support AES-NI, ESXI, PVE, Watchdog, Auto power on, RTC, PXE boot, Wake-on-LAN etc.

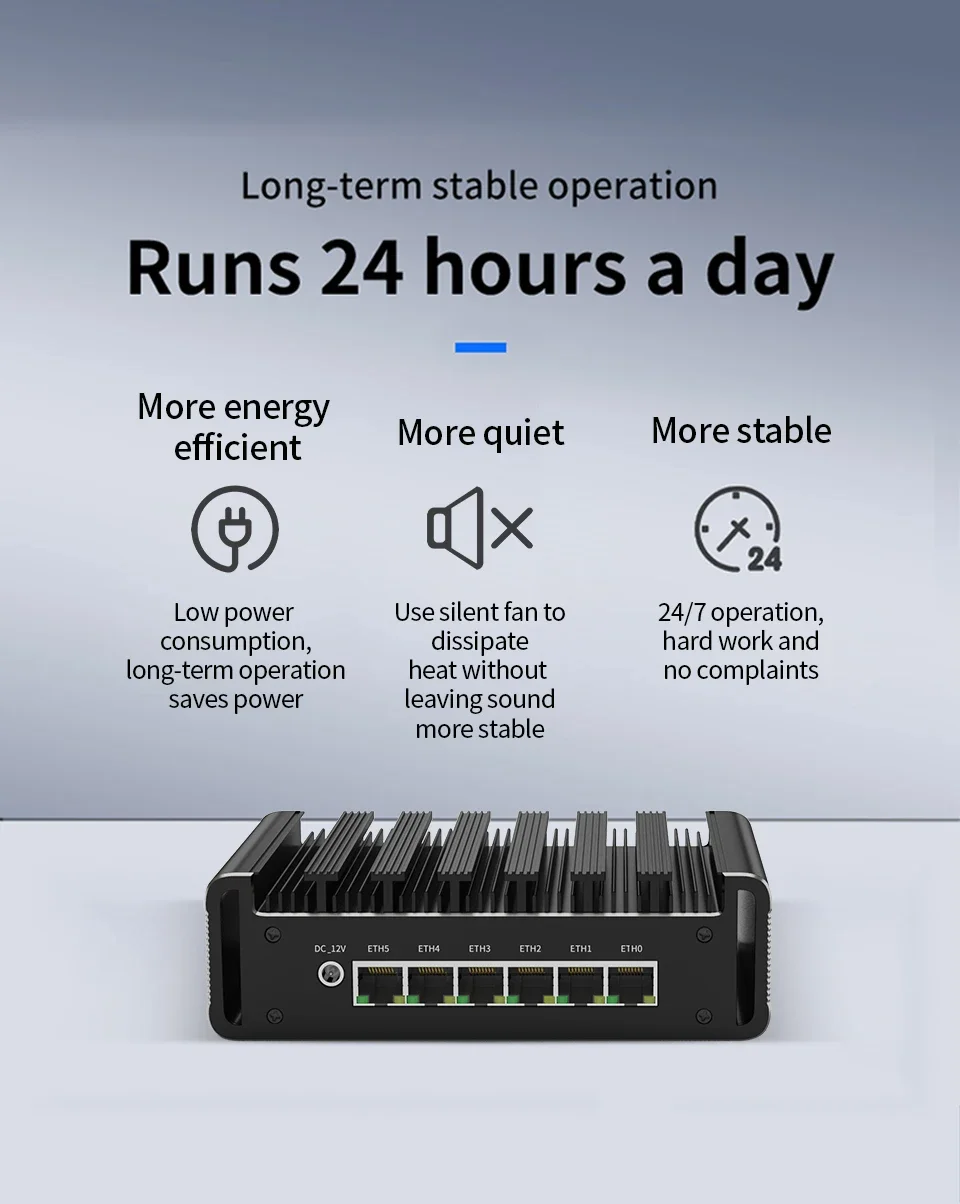

-Innovation: All aluminum shell fins passive heat-sink + intelligent fan cooling, using fan and motherboard isolation technology to achieve dust and corrosion prevention. It is flexible to change between fanless system and fan system. A fan built in solid aluminum case with cooling fins gets much better heat dissipation to release CPU performance totally, sound of the fan is low. You can unplug fan pin off motherboard to make it fanless system if you want silence totally.
-Low consumption TDP and can be mounted back of monitor by VESA bracket(optional).
System with Fan:
Fanless System:
Welcome to click the picture of VESA Bracket to order together if you need:
