- Hign-concerned Chemical: None
- Processor Main Frequency: Depends on CPU
- Use: Multimedia
- Memory Capacity: ≥ 4GB
- Hard Drive Capacity: ≥ 1.5TB
- Model Number: S500+
- Processor Brand: AMD
- Processor Model: Ryzen
- Type: Mini Desktop
- Graphics Card Type: Integrated Card
- Brand Name: Topton
- Origin: Mainland China
- Certification: CE
- Type: MINI PC
- Operating System: Windows 11/10, Linux, Ubuntu
- Feature: Palm Size
- Wireless: AX WiFi6E+Bluetooth5.2
- Graphic Card: AMD Radeon Graphics
- Product Size: 149*145*40MM
- Case Material: Aluminum Alloy+ABS
- Memory Type: 2*DDR4 SO-DIMM slots, max 64GB
- Storage Type: 2*M.2 22*80 SSD+1*2.5”HDD/SSD
- 3x4K Display Ports: 1*HDMI2.0, 1*DP1.4, 1*Type-C
- Ethernet Ports: 2.5G+1G Dual RJ45 LAN
- USB Ports: 2*USB3.2, 4*USB2.0, 1*Type-C USB3.2
- Type-C Function: 4K Display/PD3.0/USB3.2
Processor parameter for referance only
|
Processors |
Cores & Threads |
Cache |
Base Frequency |
Max Turbo Frequency |
TDP |
Graphics |
|
Ryzen 9 5900HX |
8 cores, 16 threads |
16M |
3.30 GHz |
4.60 GHz |
45W |
AMD Radeon Graphics 8 Core 2100MHz |
|
Ryzen 7 5800H |
8 cores, 16 threads |
16M |
3.20 GHz |
4.40 GHz |
45W |
AMD Radeon Graphics 8 Core 2000MHz |
|
Ryzen 7 5825U |
8 cores, 16 threads |
16M |
2.00 GHz |
4.50 GHz |
15W |
AMD Radeon Graphics 8 Core 2000MHz |
|
Ryzen 7 5700U |
8 cores, 16 threads |
8M |
1.80 GHz |
4.30 GHz |
15W |
AMD Radeon Graphics 8 Core 1900MHz |
|
Ryzen 5 5625U |
6 cores, 12 threads |
16M |
2.30 GHz |
4.30 GHz |
15W |
AMD Radeon Graphics 7 Core 1800MHz |

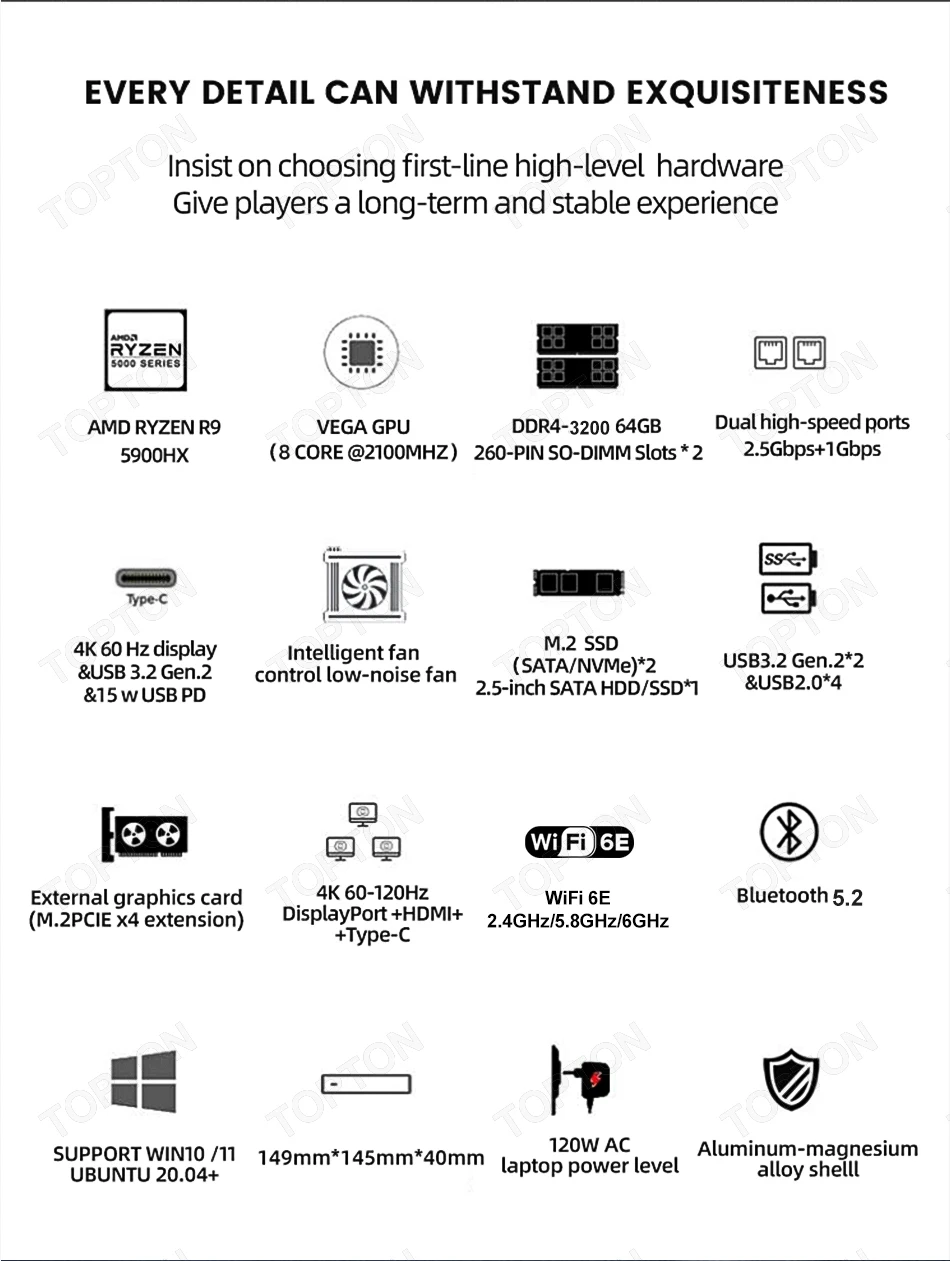

Product Highlight
– Support Windows 11/10, Linux, Ubuntu OS, and more;
– Onboard high-end AMD Ryzen 5000 series 7nm Processor with powerful computing performance.
– Onboard AMD Radeon™ VEGA Graphics with fast graphics processing capabilities for gaming and 3D design.
– 2xSODIMM DDR4 ram slot up to 64GB 3200MHz, large capacity and high frequency memory improve work efficiency and give you a smooth experience.
– Support HDMI2.0, DP1.4 and Type-C for 3x4K@60Hz video display synchronously and asynchronously.
– Support 2*M.2 2280 NVME/PCIE3.0x4(2000-3600MB/S) SSD+1*2.5 inch SATA HDD/SSD.
– Support 2.5G&1G Dual RJ45 Lans+M.2 2230 WiFi6E/Bluetooth5.2.
What’s in the package
1xMini PC
1xPower supply
1xPower cable( we ship EU/US/UK/AU power plug base on buyer’s address )
1xSATA cable
1xHDMI cable
1xVESA bracket
1xUser manual
2. DO NOT buy Barebone Mini PC (“No Ram No HD No WiFi” bundle)If you are NOT IT technician. PC demands professional skill to assemble and debug. Barebone bundle had best to use Samsung, Micron etc ORIGINAL brand ram and storage.

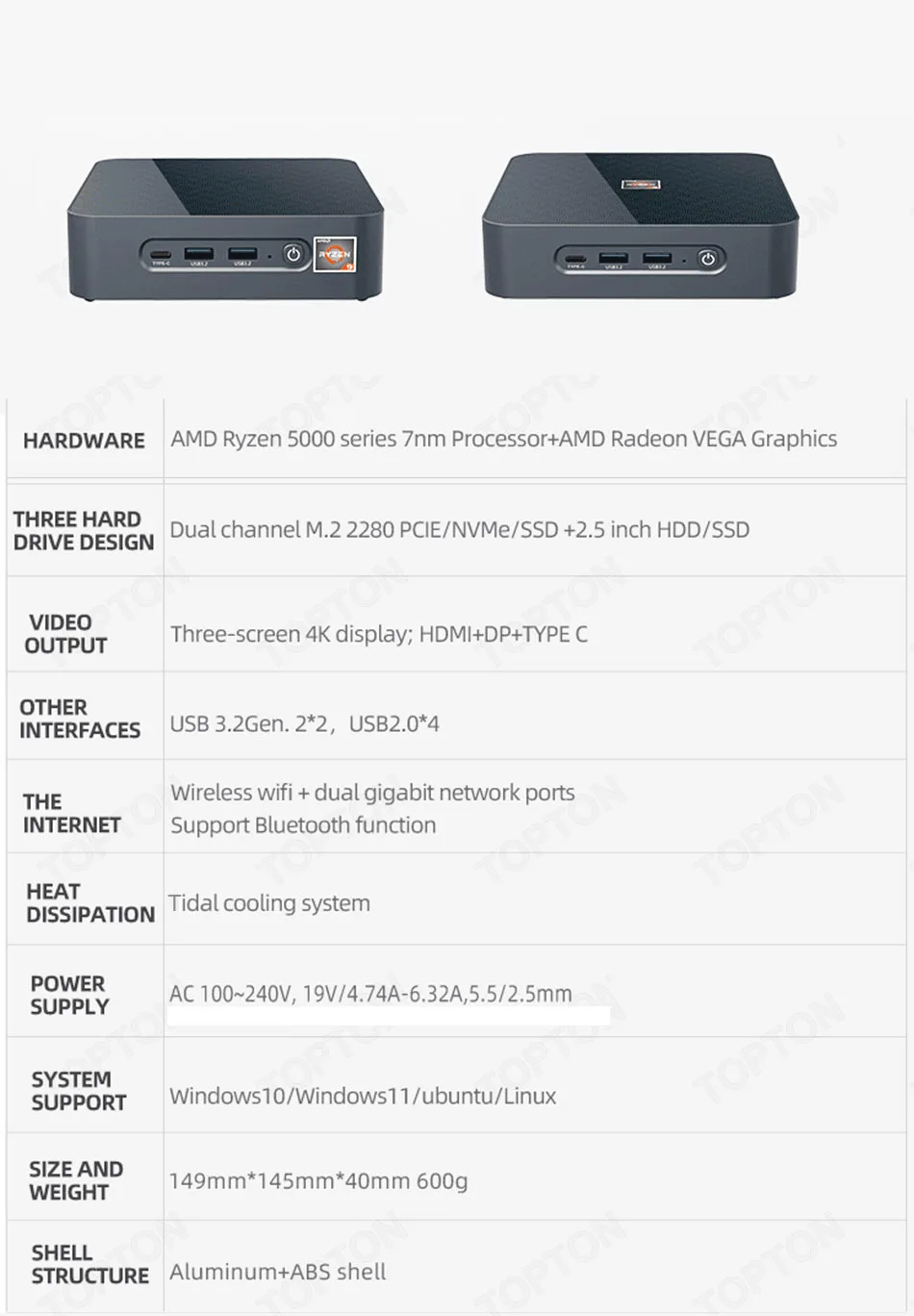

| Basic Information: | |
| CPU | AMD Ryzen 5000 series |
| CPU install Method | FP6 |
| TDP | 15W-45W |
| Motherboard | 144 x 141mm customized size |
| Code Name | AMD Zen 3 |
| Memory | 2 x SO-DIMM DDR4 RAM Slot, up to 64GB |
| OS | Windows 11/10/Linux/Ubuntu supported |
| Audio | Azalia Codec support 2.1 channel output
High Definition Audio Controller |
| Network | 1 x 2.5G, 1 x 1G |
| Video | AMD Radeon™ Graphics |
| Input/output port | |
| Switch | 1 x Power On/Off Switch |
| Power | 1 x 19V DC In |
| LED | 1 x LED |
| USB | 2 x USB3.2, 4 x USB2.0 |
| USB-C | 1 x Type-C USB3.2 |
| Display | 1 x DP1.4, 1 x HDMI2.0, 1 x Type-C |
| LAN | 2 x RJ45 LAN |
| Audio | 1 x Audio(MIC&SPK) |

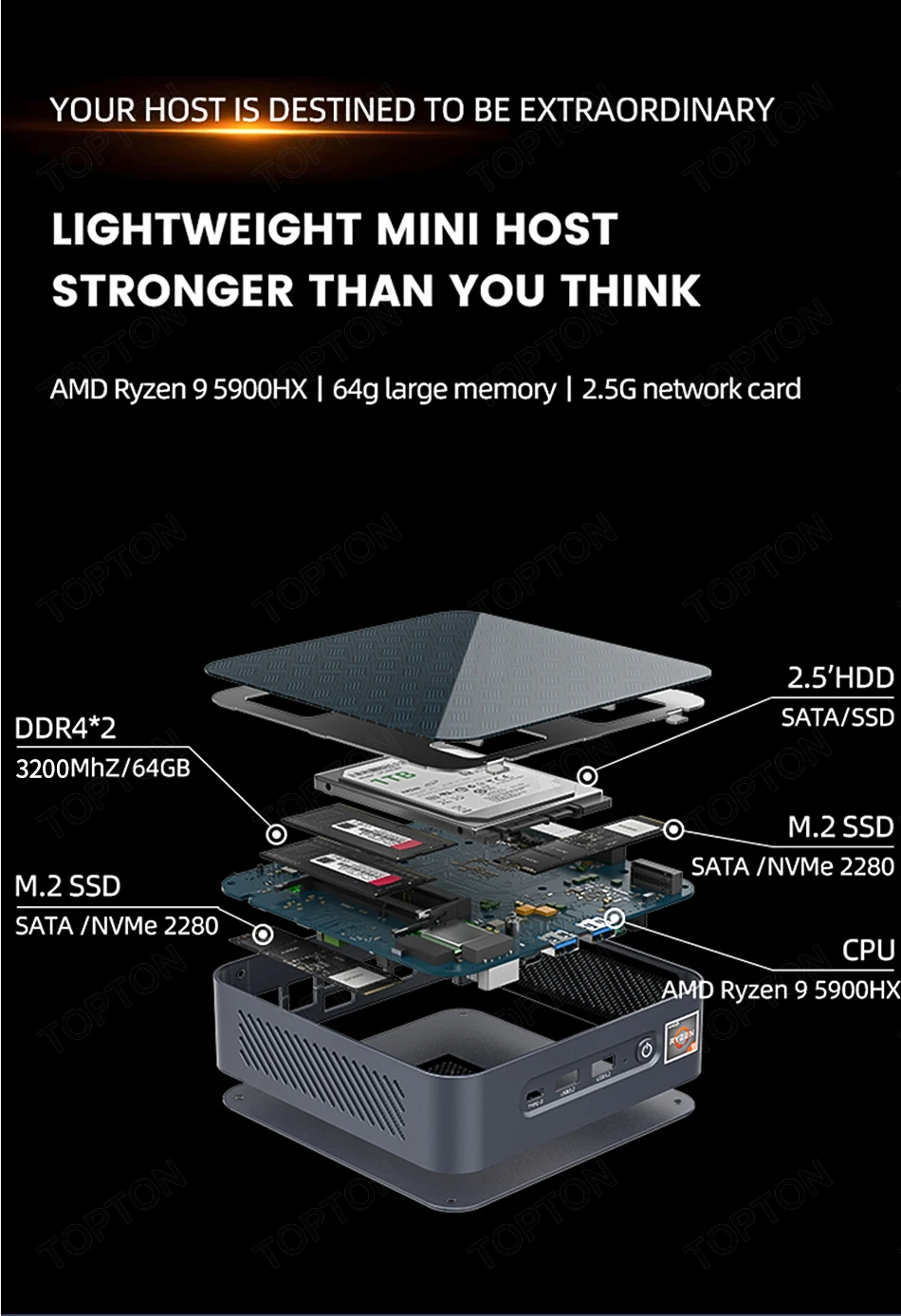

| Storage | |
| M.2 | 2 x M.2 slot for M.2 NGFF 22*80, up to 2TB(NGFF/NVME), support 32Gb/s |
| SATA | 1 x SATA3.0 slot for 2.5” SATA HDD/SSD, support 6Gb/s |
| Wi-Fi | |
| Module | 1 x M.2 NGFF 2230 slot for Wi-Fi module |
| Antenna | 2 x inner RF cables |
| Power and Working Environment | |
| Input | DC100-240V AC/50-60Hz |
| Output | 19V/4.74A |
| Operating Temperature | -10/60 Centigrade |
| Storage Temperature | -20/+70 Centigrade |
| Relative Humidity | 0%~90% (non-condensing) |
| Product Dimension & Details | |

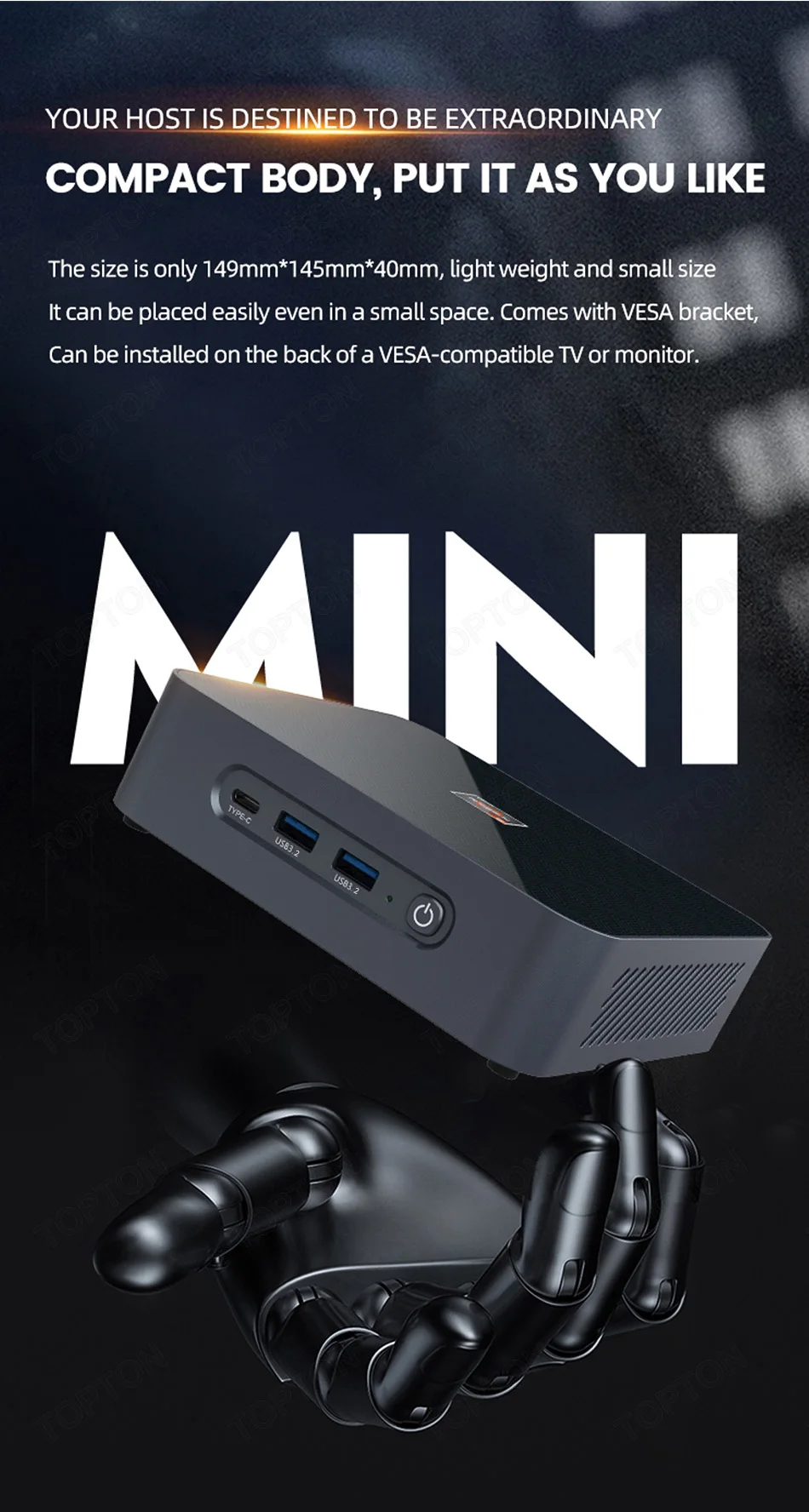

| Size | 149*145*40mm |
| Weight | Net 0.6kg, Gross 1.5kg |
| Shell | Aluminum Alloy+ABS |
| Cooling Mode | Power Cooling Fan |
| Functions | Support PXE, RTC, Wake on LAN, Auto power on etc |
| Package Content | |
| Standard | 1xMini PC, 1xPower Adapter, 1xPower Cord, 1xScrews Bag, 1xUser Manual |
