Name: Topton 2x10G SFP+ Firewall Mini PC Intel 3 N355 N305 N150 N100 2xi226-V 2.5G 2xNVMe 2xHD DDR5 NAS Home Server pfSense Proxmox
SKU: 3256808049837766
Availability: InStock

Topton 2x10G SFP+ Firewall Mini PC Intel 3 N355 N305 N150 N100 2xi226-V 2.5G 2xNVMe 2xHD DDR5 NAS Home Server pfSense Proxmox

Size and packaging guidelines

Fermentum scelerisque hendrerit parturient nullam enim lobortis litora parturient dictumst.

Potenti a quisque tincidunt venenatis adipiscing parturient fermentum nisl tincidunt amentu.

Scelerisque conubia lobortis a condimentum ad eleifend dui integer maecenas habitant nostra.

Specification	Chair	Armchair	Sofas
Height	37"	42"	42"
Width	26.5"	32.5"	142"
Depth	19.5"	22.5"	24.5"
Assembly Required	No	No	Yes
Packaging Type	Box	Box	Box
Package Weight	55 lbs.	64 lbs.	180 lbs.
Packaging Dimensions	27" x 26" x 39"	45" x 35" x 24"	46" x 142" x 25"

Description

Hign-concerned Chemical: None
Processor Main Frequency: Depends on CPU
Use: Commercial
Memory Capacity: ≥ 4GB
Hard Drive Capacity: 1TB
Model Number: X4H-XL
Processor Brand: Intel
Processor Model: N100/N150/N305/N355
Type: Mini Desktop
Graphics Card Type: Integrated Card
Brand Name: Topton
Origin: Mainland China
Certification: CE,FCC,RoHS
Type: MINI PC

Processor parameter for referance only

Processors	Cores & Threads	Cache	Max Turbo Frequency	TDP	Graphics
Intel N100	4 cores, 4 threads	6M	3.40 GHz	6W	Intel UHD Graphics 24EUS
Intel Core i3-N305	8 cores, 8 threads	6M	3.80 GHz	15W	Intel UHD Graphics 32EUS
Intel N150	4 cores, 4 threads	6M	3.60 GHz	6W	Intel UHD Graphics 24EUS
Intel Core 3-N355	8 cores, 8 threads	6M	3.90 GHz	15W	Intel UHD Graphics 32EUS

Product Highlight

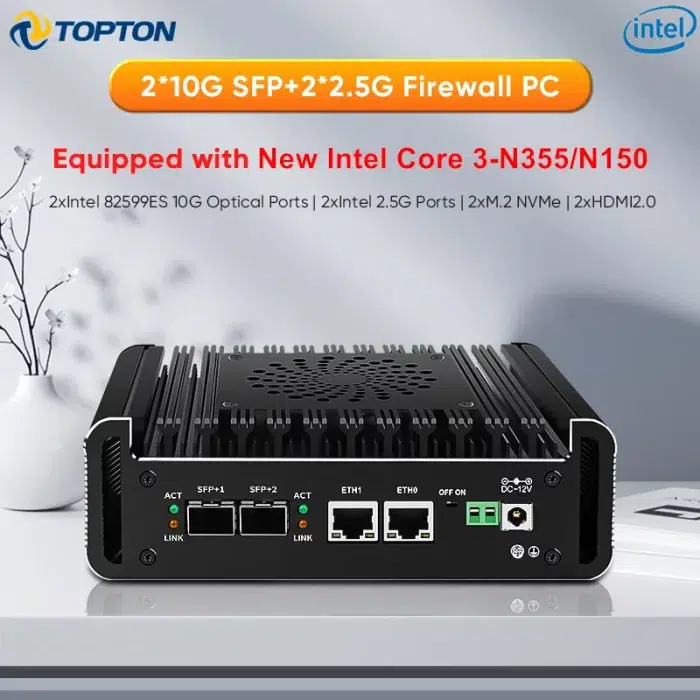

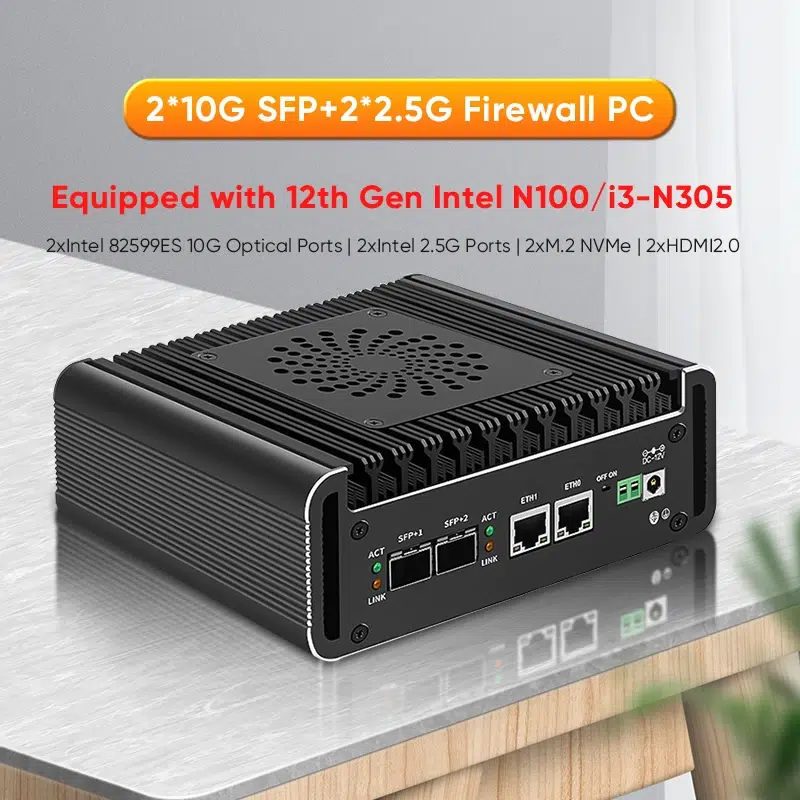

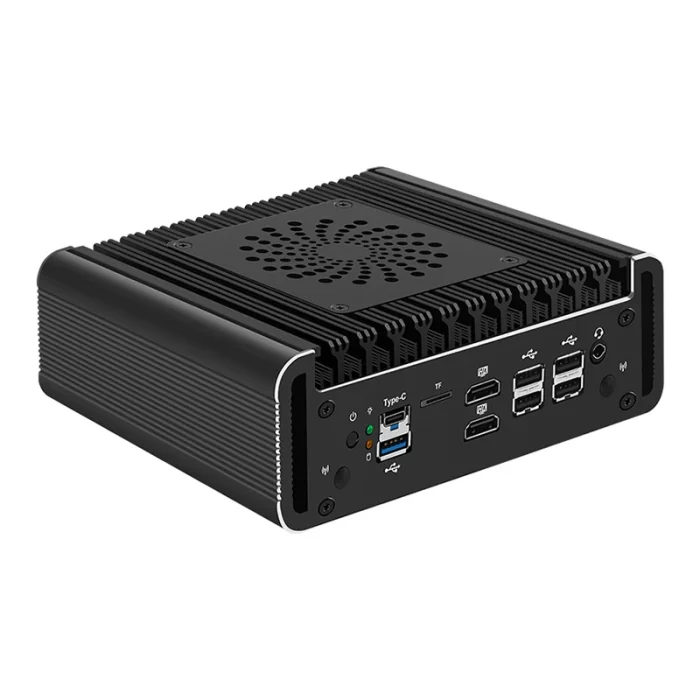

-2xIntel 82599ES 10G SFP+ optical ports, 2xIntel i226-V 2.5G RJ45 LANs, 1xType-C 3.2 Gen1, 1xUSB3.2 Gen1, 4xUSB2.0.

-1xDDR5 SODIMM ram slot, support 4800MHz.

-Support 3 storage: 2xM.2 NVMe(PCIe3.0x1, one on the back of motherboard) 2280 SSD+1×2.5-inch SATA3.0 SSD/HDD.

-1xM.2 E key 2230 slot, support WiFi6&Bluetooth connection and support transfer to 2280 NVMe by adapter board.

-1xTF card slot support storage and partial system boot.

-2xHDMI2.0 support 2x4K@60Hz UHD video display.

-Support AES-NI, ESXI, PVE, Watchdog, Auto power on, RTC, PXE boot, Wake-on-LAN etc.

-Innovation: It is flexible to change between fanless system and fan system. A fan built in solid aluminum case already with high tooth fins and copper block gets much better heat dissipation to improve CPU performance significantly, sound of the fan is low. You can unplug fan pin off motherboard to make it fanless system if you want silence totally.
-Low consumption TDP and can be mounted back of monitor by VESA bracket(optional).

Package List

1xMini PC

1xPower Adapter

1xPower Cord

1xM.2 2230 to 2280 NVMe adapter board

All bundles on sale DO NOT include WiFi(antennas), AC WiFi(antennas) cost US $10, AX WiFi6(antennas) cost US $30, Internal 8010 cooling FAN cost US $9. If you need, pay at this link.

Welcome to click the picture of VESA Bracket to order together if you need:
