- Hign-concerned Chemical: None
- Processor Main Frequency: Depends on CPU
- Use: Commercial
- Memory Capacity: ≥ 4GB
- Hard Drive Capacity: 1TB
- Model Number: X6AF
- Processor Brand: Intel
- Processor Model: Core/Pentium
- Type: Mini Desktop
- Graphics Card Type: Integrated Card
- Brand Name: Topton
- Origin: Mainland China
- Certification: CE,FCC,RoHS
- Type: MINI PC
|
Processors |
Cores & Threads |
L3 Cache |
Base Frequency |
Max Turbo Frequency |
TDP |
Graphics |
|
Alder Lake Intel N100 |
4 cores, 4 threads |
6M |
/ |
3.40 GHz |
6W |
Intel UHD Graphics |
|
Core i3-1215U |
6 cores, 8 threads |
10M |
/ |
4.40 GHz |
15W |
Intel UHD Graphics max 1.10GHz |
|
Core i5-1245U |
10 cores, 12 threads |
12M |
/ |
4.40 GHz |
15W |
Intel Iris Xe Graphics max 1.20GHz |
|
Core i7-1265U |
10 cores, 12 threads |
12M |
/ |
4.80 GHz |
15W |
Intel Iris Xe Graphics max 1.25GHz |
Product Highlight
N100 model:
-6xIntel i226-V 2.5G RJ45 LANs, 4xUSB2.0, 1xRJ45 COM console.
-1xDDR5 SODIMM non-ecc ram slot, support max 16GB 4800MHz.
-Support three storage: 2xM.2 2280 NVMe/PCIE3.0x1 SSD(one on each side of motherboard)+1×2.5''SATA3.0 7mm SSD/HDD.
-1xSIM slot, 1xMPCIE slot, support WiFi/4G(2 choose 1) connection.

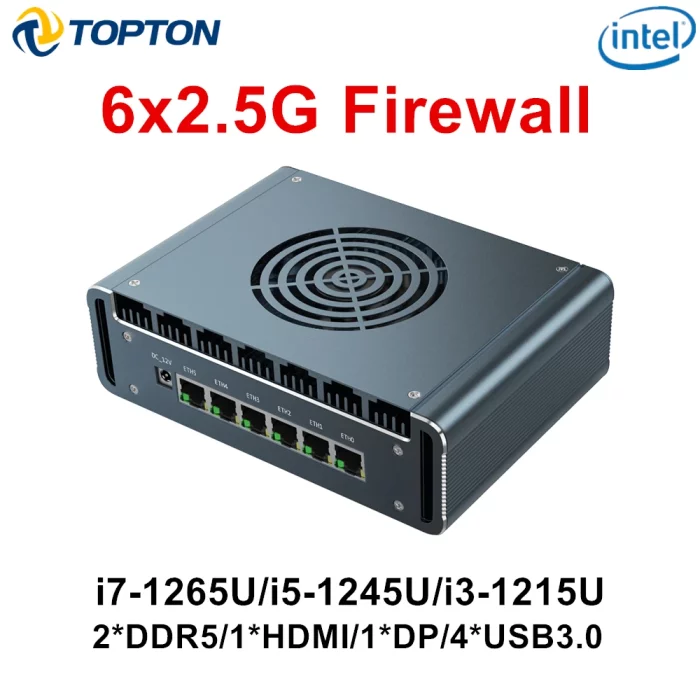

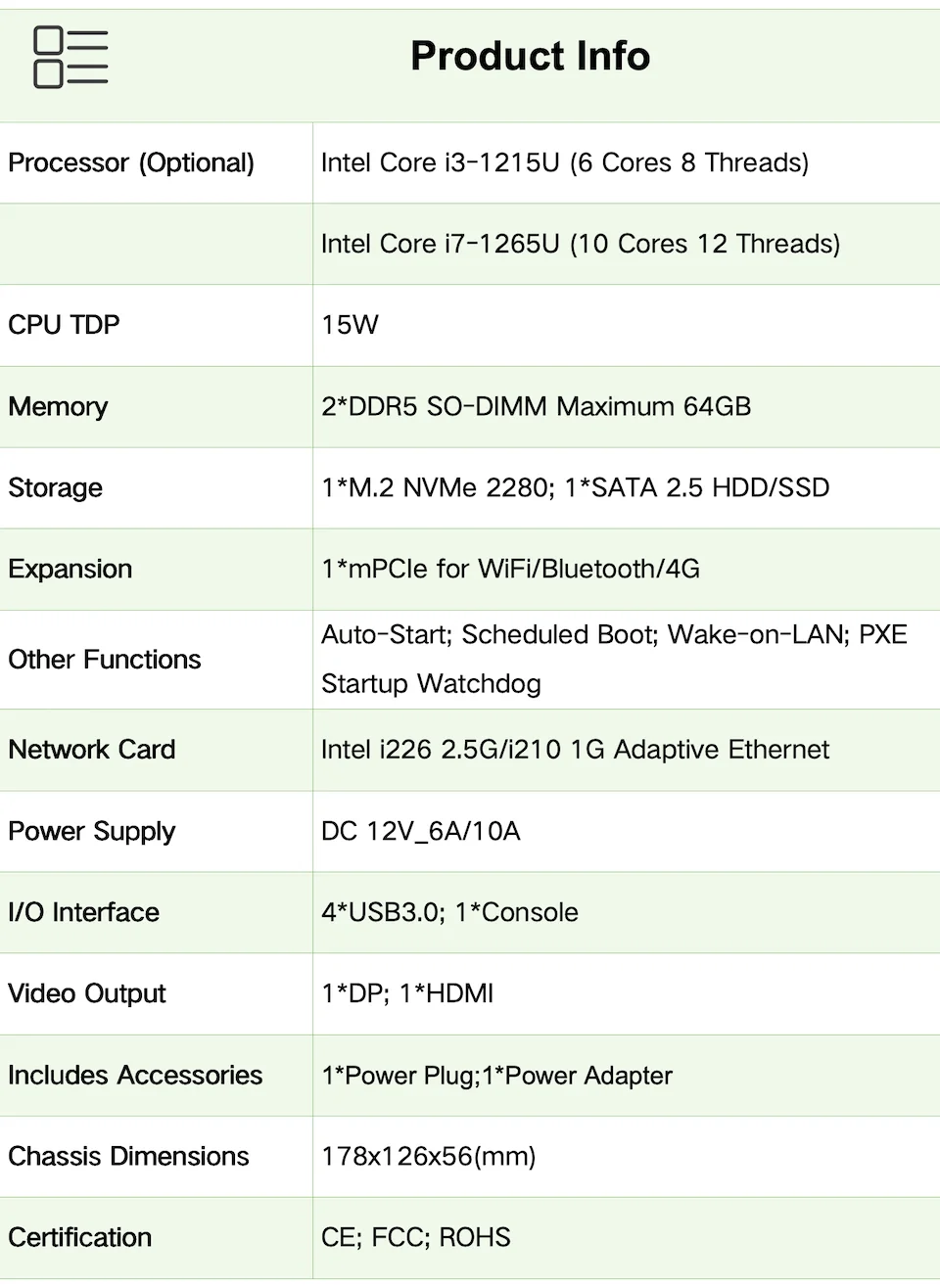

i3-1215U/i5-1245U/i7-1265U model:
-6xIntel i226-V 2.5G RJ45 LANs, 4xUSB3.0, 1xRJ45 COM console.
-2xDDR5 SODIMM ram slots, support max 64GB 4800MHz.
-Support two storage: 1xM.2 2280 NVMe/PCIEx4 SSD+1x7mm 2.5'' SATA SSD/HDD.
-1xSIM slot, 1xM.2 2230 WiFi slot(CNVI/PCIE signal), 1xMPCIE slot, support WiFi/4G(2 choose 1) connection.
-1xHDMI2.0 and 1xDP1.4 support dual 4K@60Hz UHD video display.
-Support AES-NI, ESXI, PVE, Watchdog, Auto power on, RTC, PXE boot, Wake-on-LAN etc.
-Innovation: It is flexible to change between fanless system and fan system. A fan built in solid aluminum case with cooling fins gets much better heat dissipation to release CPU performance totally, sound of the fan is low. You can unplug fan pin off motherboard to make it fanless system if you want silence totally.
-Low consumption TDP and can be mounted back of monitor by VESA bracket(optional).
Package List
1xMini PC
1xPower Adapter
1xPower Cord(EU/US/UK/AU plug based on buyer's country)
1xSATA Cable
i3-1215U/i5-1245U/i7-1265U 6xi226-V model
Welcome to click the picture of VESA Bracket to order together if you need:
