- Hign-concerned Chemical: None
- Processor Main Frequency: Depends on CPU
- Use: Commercial
- Memory Capacity: ≥ 4GB
- Hard Drive Capacity: 1TB
- Model Number: X2B
- Processor Brand: Intel
- Processor Model: N100/N5105/J4125/N4000
- Type: Mini Desktop
- Graphics Card Type: Integrated Card
- Brand Name: Topton
- Origin: Mainland China
- Certification: CE,FCC,RoHS
- Type: MINI PC
|
Processors |
Cores & Threads |
L3 Cache |
Base Frequency |
Max Turbo Frequency |
TDP |
|
Alder Lake Intel N100 |
4 cores, 4 threads |
6M |
|
3.40 GHz |
6W |
|
Celeron N5105 |
4 cores, 4 threads |
4M |
2.00 GHz |
2.90 GHz |
10W |
|
Celeron J4125 |
4 cores, 4 threads |
4M |
2.00 GHz |
2.70 GHz |
10W |
|
Celeron N4000 |
2 cores, 2 threads |
4M |
1.10 GHz |
2.60 GHz |
6W |
-4xIntel i226-V 2.5GbE RJ45 LANs, 2xUSB3.0, 2xUSB2.0, 1xRJ45 COM console, 1x4G/3G SIM slot.
N100 model: 1xDDR5 SODIMM non-ecc ram slot, support 4800MHz.
N5105/N4000/J4125 model:2xDDR4 SODIMM non-ecc ram slots, support 2400/2666MHz.
-Support two storage: 1xM.2 NVMe/PCIe3.0x1 2280 SSD+1×2.5''SATA3.0 7mm SSD/HDD.
-1xSIM slot, 1xMPCIE wireless slot, support WiFi/4G/3G(only USB protocol, 3 choose 1) connection.
-Support 1xHDMI and 1xDP dual 4K video display.
-Support AES-NI, ESXI, PVE, Watchdog, Auto power on, RTC, PXE boot, Wake-on-LAN etc.

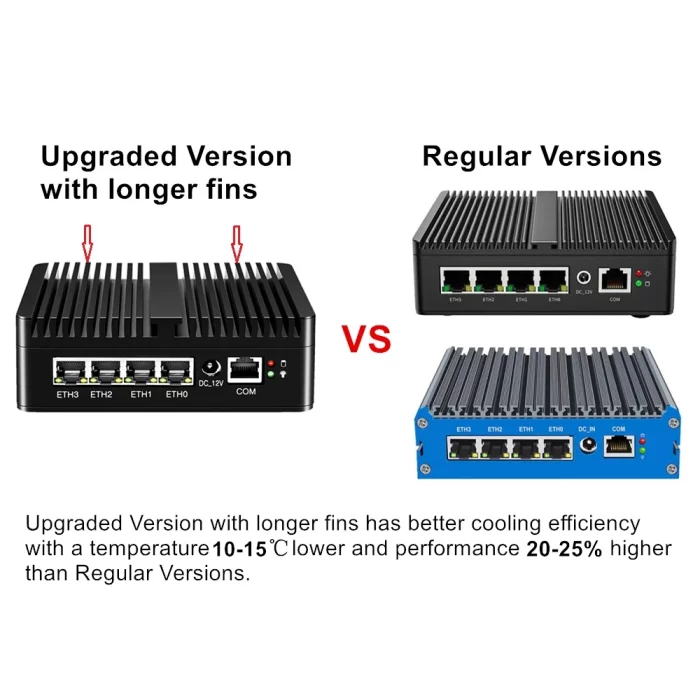

-Fanless system with longer fins has better cooling efficiency with a temperature 10-15℃ lower and performance 20-25% higher than regular versions on the market. It has a longer working life time, noiseless and durable to work as long as 7×24 hours.
-Low consumption TDP and can be mounted back of monitor by VESA bracket(optional).
Welcome to click the picture of VESA Bracket to order together if you need:
