Name: Fanless AMD Mini PC FU02 Ryzen 7 7730U 5800U Gaming Mini Computer Windows 11 Dual LAN Firewall Router 2*HDMI2.0 NVMe DDR4 WiFi6
SKU: 1005005427732742
Availability: InStock

Description

Processor Main Frequency: Depends on CPU
Use: Multimedia
Memory Capacity: ≥ 4GB
Hard Drive Capacity: 1TB
Model Number: FU02
Processor Brand: AMD
Processor Model: Ryzen
Type: Mini Desktop
Graphics Card Type: Integrated Card
Brand Name: Topton
Origin: Mainland China
Certification: CE,FCC,RoHS
Type: MINI PC
Operating System: Windows 11/10, Linux, Ubuntu etc
Wireless: 2.4G/5G AX WiFi6+Bluetooth 5.2
Graphic Cards: Radeon Vega Graphics
Product Size: 180*126.5*62.5mm
Case Material: Aluminum Alloy
Storage type: 1*M.2 2280+1*2.5'' SATA3.0
Memory type: 2*DDR4 non-ecc SODIMM
Video port: 2*HDMI2.0
USB Ports: 3*USB3.1, 2*USB2.0

Processor parameter for referance only

Model: FU02
Dimension:180mm(L)x126.5mm(W)x62.5mm(H)
CPU: AMD Ryzen series
GPU: AMD Radeon Graphics
Ram: 2 x So-DIMM DDR4 slots, support max 64GB 3200MHz
SSD: Support M.2 2280 NVME/PCIE3.0x4
HDD: Support 2.5inch 7mm HDD/SSD
WiFi: AX WiFi6 with Bluethooth5.2(except barebone bundle)
RJ45: 2 x 100/1000M
Front I/O: 1 x USB 3.1, 1 x Mic in/out, 1 x Switch

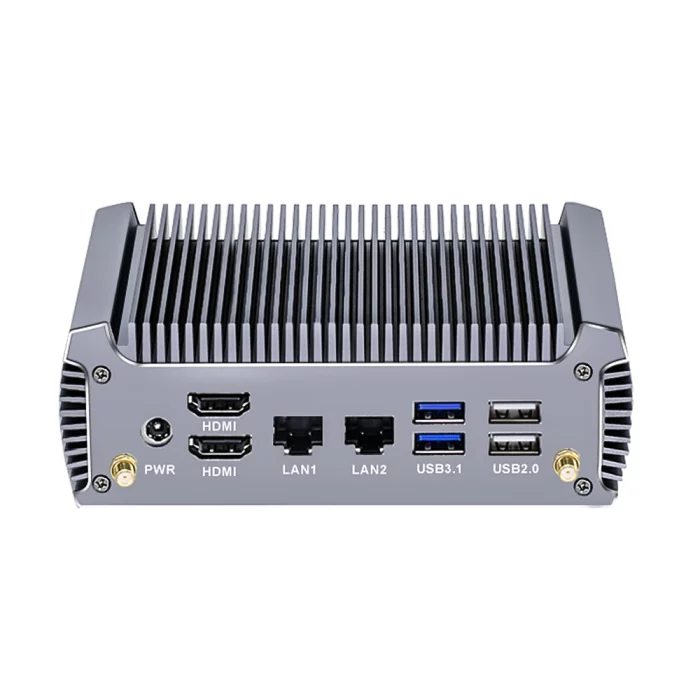

Rear I/O: 2 x USB 3.1, 2 x USB 2.0, 2 x HDMI2.0, 2 x RJ45 LAN, 1 x DC IN
OS: Windows 11 / Windows 10 / Ubuntu etc
Power: 19V 3.42-4.74A

Feature: Fanless design, aluminum shell as heat-sink, totally silent

Function: Auto power on(open model, unable to close)

What's in the package

1xMini PC

1xPower supply

1xPower cable( we ship EU/US/UK/AU power plug base on buyer's address )

1xSATA cable

2xAntennas

Notice

Barebone Mini PC ("No Ram No HD No WiFi" bundle) package DO NOT include WiFi6 module, if you need, please pay extra US $20 at this link. Other bundles include WiFi6 module.

Welcome to click the picture of VESA Bracket to order together if you need:

Reviews (0)

Reviews

There are no reviews yet.

Be the first to review “Fanless AMD Mini PC FU02 Ryzen 7 7730U 5800U Gaming Mini Computer Windows 11 Dual LAN Firewall Router 2*HDMI2.0 NVMe DDR4 WiFi6”

You must be logged in to post a review.

Shipping & Delivery

Q1. Can you provlde OEM/ODM service? How much do l need to pay for your OEM service?Re. Yes we can. The charges for OEl service depends on the different level of customize. the process of customization isfollowing.1) provide your specific requirement.2)our desiqn engineer draw the design draft3)you confirm the design draft.4) we start produce it.
Q2. Can you print my logo on the minl computer ?
Re. Yes, it is support . And we could print your logo on the pc for free !Pls contact me for logo printing ,)
Q3. What Is the Minimum Order Quantity (MOQ)?
Re: We can sell one piece sample for your test
Q4. What ls the lead tlme of your products?Re. Sample order within 3-7 business days . Bulk order within 3~15 business days ( depends on order gty) ,we will test themodel to insure the quality before shipping.
Q5. How wlll you dellver my goods to me?
Re. We shin by alr generally, in the meantime, we cooperate with intemnational expresses such as DHl. UpS, FedEx. andTNT tO enable our customers to get their goods rapidly.

Video

Processors	Cores & Threads	Cache	Base Frequency	Max Turbo Frequency	TDP	Graphics
Ryen 7 7730U	8 cores, 16 threads	16M	2.00 GHz	4.50 GHz	15W	AMD Radeon Graphics 8 Core 2000MHz
Ryzen 7 5800U	8 cores, 16 threads	16M	1.90 GHz	4.40 GHz	15W	AMD Radeon Graphics 8 Core 2000MHz
Ryzen 5 5600U	6 cores, 12 threads	16M	2.30 GHz	4.20 GHz	15W	AMD Radeon Graphics 7 Core 1800MHz
Ryzen 5 7530U	6 cores, 12 threads	16M	2.00 GHz	4.50 GHz	15W	AMD Radeon Graphics 7 Core 2000MHz
